The Paradox PDX-KITPS25 power kit is ideally suited for the new Paradox HDx8 series of WiFi PIR cameras. The kit uses the PS25 switch mode module that provides a maximum of 2.5 amps continuous power at 13.8 volts DC as well as 300mA for charging a backup battery. A maximum of 5x HDx8 WiFi PIR cameras can be connected for trouble free operation. When connected to the Paradox keypad bus, the PS25 will provide feedback on the conditions of the AC supply, the output voltage and the output current. When any of these conditions are in trouble, they will be reported via push notification to the Insite Gold App. The PS25 will shut down when the output voltage drops to 9.5VDC to prevent the batteries from being drained.

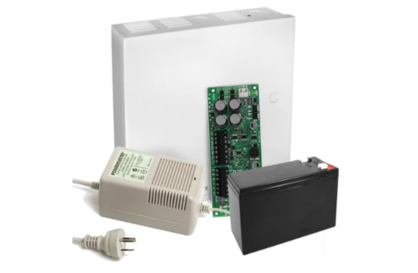

Kit Include
- 1 x Paradox Metal Box to suit all Paradox Control Panels, 280mm x 280mm x 76mm, Grey
- 1 x 16V AC, 3 Amp PSU with Mounting Plate (66A)
- 1 x 12V 7.0Ah Sealed Lead Acid Battery
- 1 x Paradox 13.5V DC, 2.5A Power Supply Module, Supervised or Standalone, req. CSD-T1630S-T
Features:
- Supports max 5x HDx8 Wi-Fi PIR Cameras
- 2.5A maximum current
- AC and battery supervision
- Push notification of troubles to Insite Gold App
- 2.5 hours battery backup for 5 cameras in daylight (depending on battery condition)
- 1.5 hours battery backup for 5 cameras in night time (depending on battery condition)
- AC power: 16V AC, 3 amp
- Auxiliary power: 2.5 amp maximum
- Battery charge: 300mA
- Shutdown voltage: 9.5V DC
- Battery: 12V DC - 7Ah
- Operating temperature: -20 to 50 degrees Celsius
