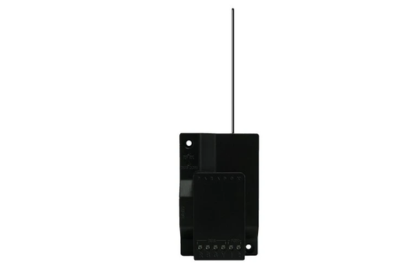

The Paradox RX Wireless Receiver adds wireless receiving capability to SP Series panels allowing the use of one-way remotes and detection devices with the system.
Features:
- Compatible with SP series control panels (V4.54 and above)
- 32 wireless zones (SP Series only)
- Maximum number of remote controls: 32
- Remote control compatibility: REM1, RAC1
- Transmitter compatibility: DCT10, DCTXP2, DCT2, PMD1P, PMD75, PMD85, SD738 (SP only)
- In-field firmware upgradable via In-Field Firmware Upgrade software
- RF jamming supervision
- Low battery, tamper, and check-in supervision
- Transmitter signal strength display
- 2 PGM outputs
Specifications:
- Wireless frequency: 433MHz
- Power input voltage: 12Vdc
- Frequency: 433MHz
- Sensitivity: -110dBm (433MHz)
- Current consumption: 25mA
- Dimensions: (no antenna): 5.1cm x 8.3cm x 2cm
- Operating temperature: 0 to 5 degrees Celsius
