Highlight Features
-
High-speed data transmission of up to 1.25 Gbps
-
Supports transmission distances of up to 100 metres
-
Hot-swappable design allows installation or removal without shutting down the network
-
Compatible with a wide range of switches, routers and networking equipment
-
Converts an SFP interface to a standard Gigabit RJ45 Ethernet connection
-
Complies with IEEE 802.3ab, SFP MSA and RoHS standards
- Datasheet
Product Overview

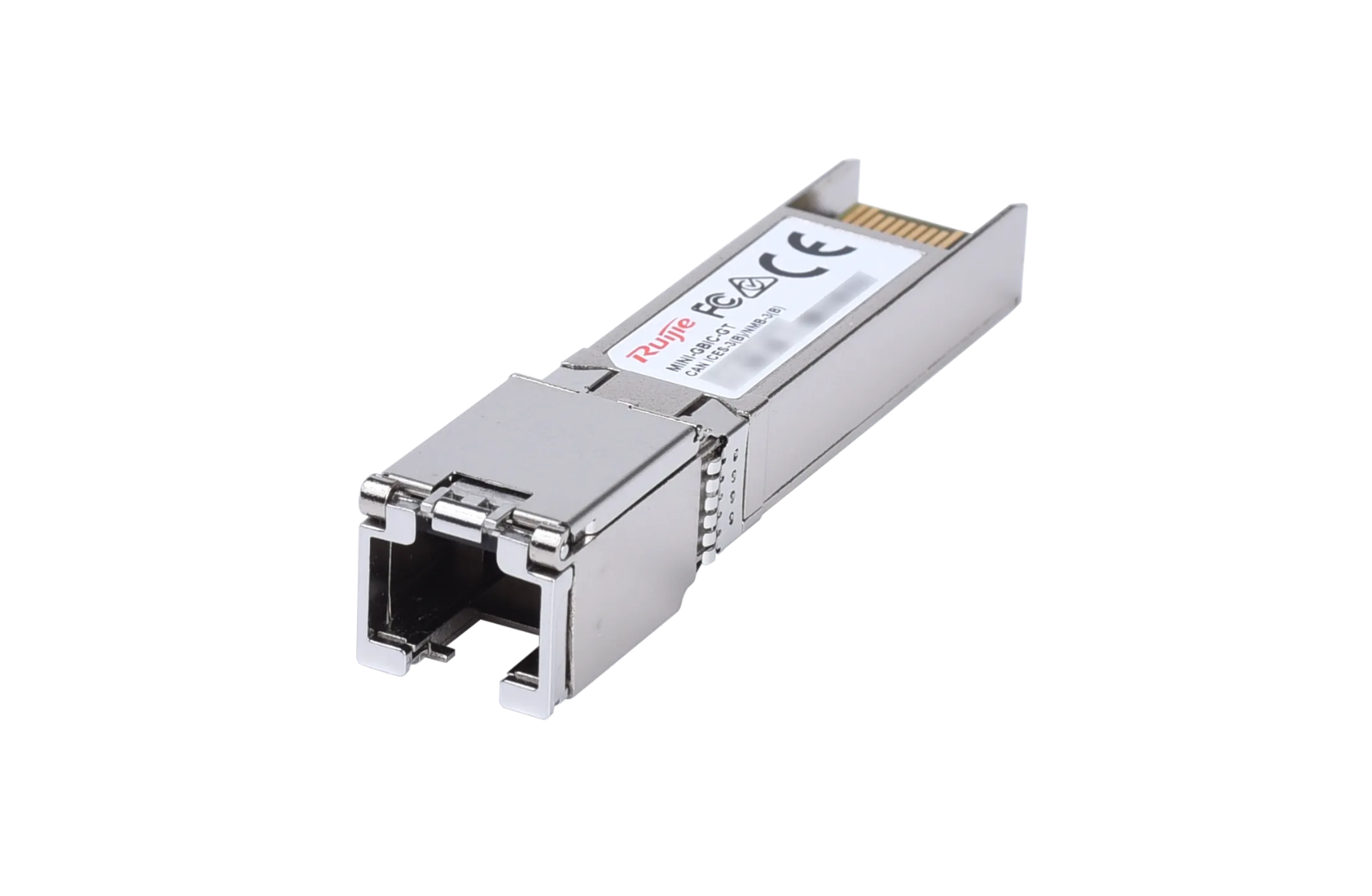

The Ruijie MINI-GBIC-GT is a Gigabit copper SFP transceiver designed to convert an IEEE 1000BASE-X SFP interface into a 1000BASE-T RJ45 Ethernet connection.
It supports transmission distances of up to 100 metres using Cat 5e, Cat 6 or Cat 6a network cable. Its compact SFP form factor provides a cost-effective and flexible way to connect switches, routers, servers and network interface controllers.
The connected SFP port must be configured to use auto-negotiation.
Key Specifications
Network Interface
-
Data Rate: Up to 1.25 Gbps
-
Conversion Type: 1000BASE-X to 1000BASE-T
-
Form Factor: SFP
-
Connector Type: RJ45
-
Cable Type: Cat 5e, Cat 6 or Cat 6a
-
Maximum Transmission Distance: 100 m (328.08 ft.)
-
Auto-Negotiation: Required
Compatibility and Standards
-
IEEE Standard: IEEE 802.3ab
-
SFP Standard: SFP MSA compliant
-
Environmental Compliance: RoHS
-
Hot-Swappable: Supported
-
Digital Diagnostic Monitoring: Not supported
Power
Environment and Reliability
-
Operating Temperature: 0°C to 70°C
-
Operating Humidity: 10% to 90% RH
-
Storage Temperature: –40°C to +85°C
-
Storage Humidity: 10% to 90% RH
Dimensions and Weight
