Highlight Features
-
Maximum power consumption of 1.5 W
-
Hot-swappable SFP design for easy installation and replacement
-
Supports Digital Diagnostic Monitoring for enhanced diagnostics
-
Compliant with IEEE 802.3z Gigabit Ethernet
-
Class 1 laser safety compliant
-
RoHS compliant
-
Supports transmission distances of up to 10 km
- Datasheet
Product Overview

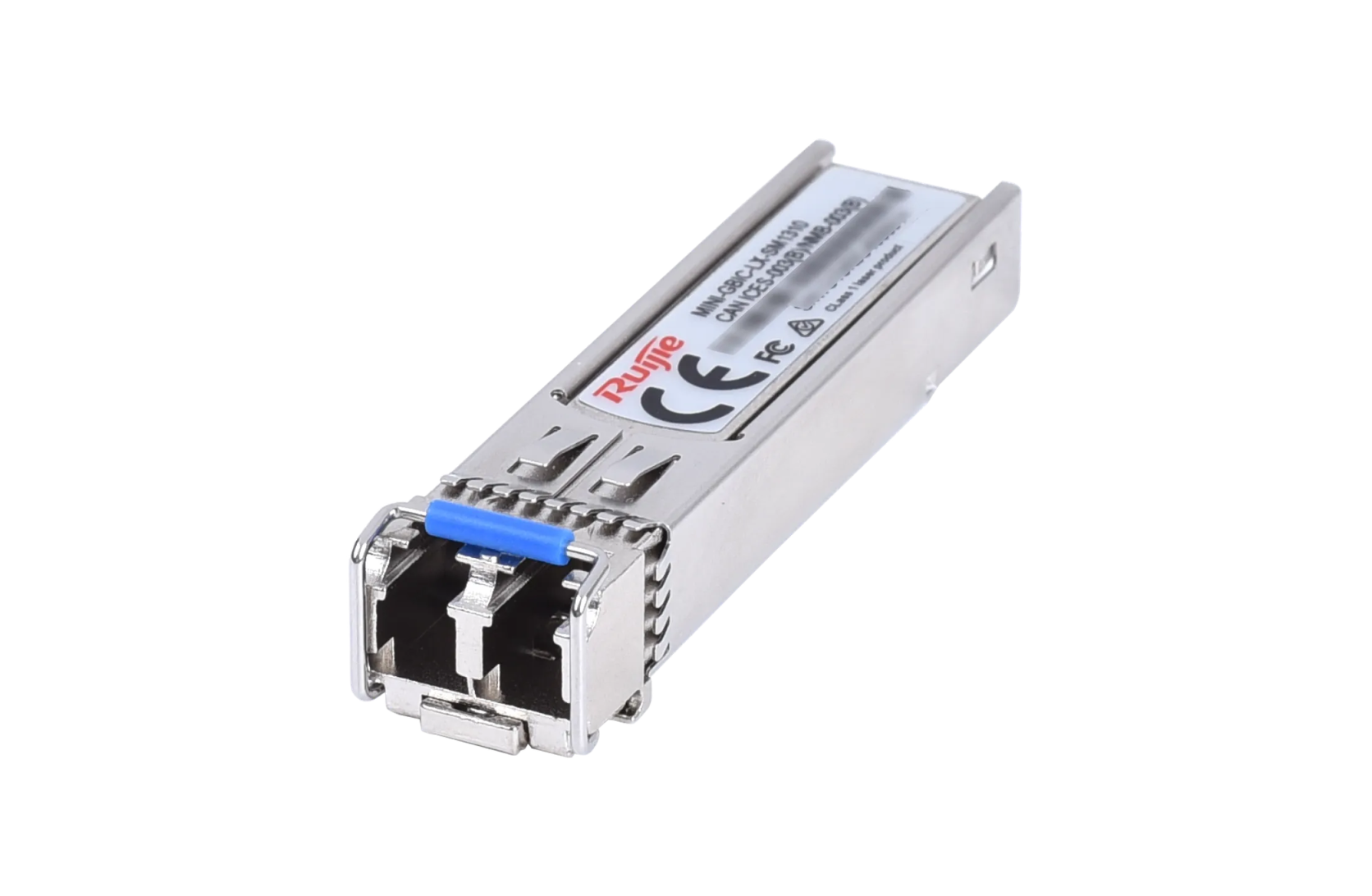

The Ruijie MINI-GBIC-LX-SM1310 is a 1.25 Gbps optical transceiver designed for high-speed data transmission across data centre, campus and enterprise networks.
It complies with IEEE 1000BASE-LX specifications and supports transmission distances of up to 10 kilometres over single-mode fibre. The module uses a duplex LC connector, operates at a wavelength of 1310 nm and features a compact, hot-swappable SFP form factor.
It is suitable for connecting compatible switches, routers, servers and network interface controllers.
Key Specifications
Optical Interface
-
Data Rate: 1.25 Gbps
-
Ethernet Standard: 1000BASE-LX
-
Form Factor: SFP
-
Connector Type: Duplex LC
-
Cable Type: Single-mode fibre
-
Fibre End-Face Type: Ultra Physical Contact
-
Maximum Transmission Distance: 10 km (32,808.40 ft.)
-
Operating Wavelength: 1310 nm
Optical Components
-
Transmitter Type: DFB laser
-
Receiver Type: PIN photodiode
-
Maximum Transmit Power: –3 dBm
-
Minimum Transmit Power: –11 dBm
-
Minimum Extinction Ratio: ≥9 dB
-
Receiver Sensitivity: Less than –19 dBm
-
Receiver Overload Power: –3 dBm
-
Bit Error Ratio: 1.00 × 10⁻¹²
Monitoring and Diagnostics
Power Consumption
Standards and Compliance
-
IEEE 802.3
-
IEEE 802.3z
-
SFF-8472
-
SFF-8431
-
SFF-8432
-
SFP MSA
-
RoHS
-
Class 1 laser safety
Environment and Reliability
-
Operating Temperature: 0°C to 70°C
-
Operating Humidity: 10% to 90% RH
-
Storage Temperature: –40°C to +85°C
-
Storage Humidity: 10% to 90% RH
Dimensions and Weight
