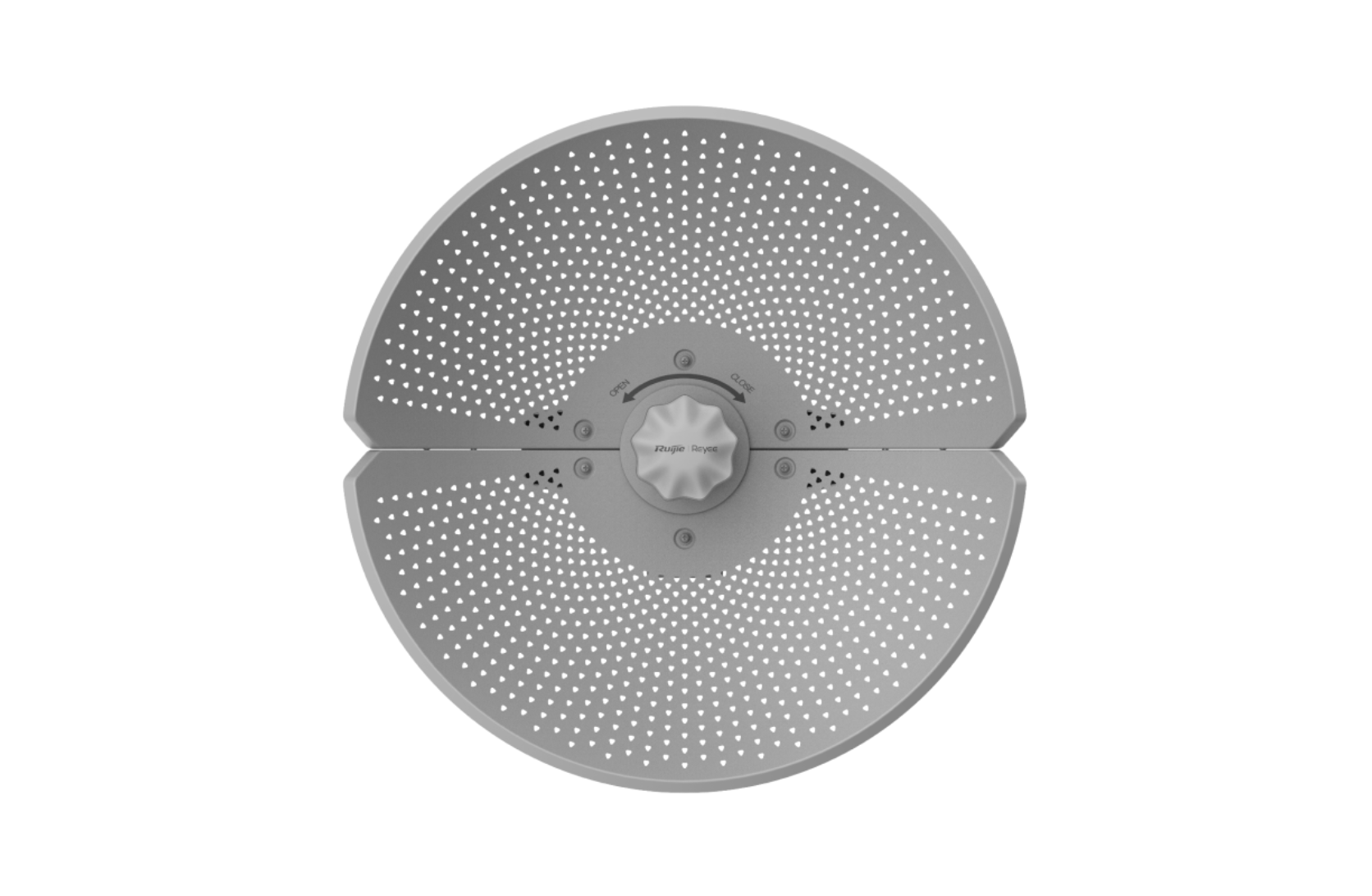

Ruijie RG-AirMetro460G, CPE of RG-AirMetro Series Wireless Bridges (Single)

Highlight Features

• Point-to-point wireless transmission distance of up to 15 km
• Easy point-to-multipoint pairing in approximately 30 seconds
• Supports 24 V passive PoE
• IP65-rated protection for harsh outdoor environments
• 6 kV surge protection
• ±24 kV ESD protection
• Wind survivability of up to 220.32 km/h (137 mph)
• All-in-one cloud management for simplified setup, monitoring and maintenance
• Datasheet

Key Specifications

Wireless Radio

• Radio Design: Dual-radio
• Total Spatial Streams: 3
• 2.4 GHz Radio: 1 × 1 SISO, 1 spatial stream
• 5 GHz Radio: 2 × 2 MIMO, 2 spatial streams
• 2.4 GHz Channel Width: Auto / 20 / 40 MHz
• 5 GHz Channel Width: Auto / 20 / 40 / 80 MHz

Antenna

• Horizontal Beamwidth: 9°
• Vertical Beamwidth: 9°

Dimensions

• Installed Dimensions: 368.5 × 271 × 368.5 mm
• Imperial Dimensions: 14.51 × 10.67 × 14.51 in.
• Dimensions include the mounting bracket after installation

Power

• PoE Input Ports: 1
• Power Supply: 24 V passive PoE

Environment and Reliability

• Operating Temperature: –40°C to +70°C
• Operating Humidity: 5% to 95% RH, non-condensing
• MTBF: 400,000 hours, approximately 45 years
• Weather Protection: IP65
• Surge Protection: 6 kV
• ESD Protection: ±24 kV
• Wind Survivability: Up to 220.32 km/h (137 mph)

Software Features

• Bridge Speed Test: Supported
• Self-Organising Network: Supported
• AI Heatmap: Supported
• Remote Restart Through Ruijie Reyee App: Supported
• SNMP v1, v2c and v3: Supported
