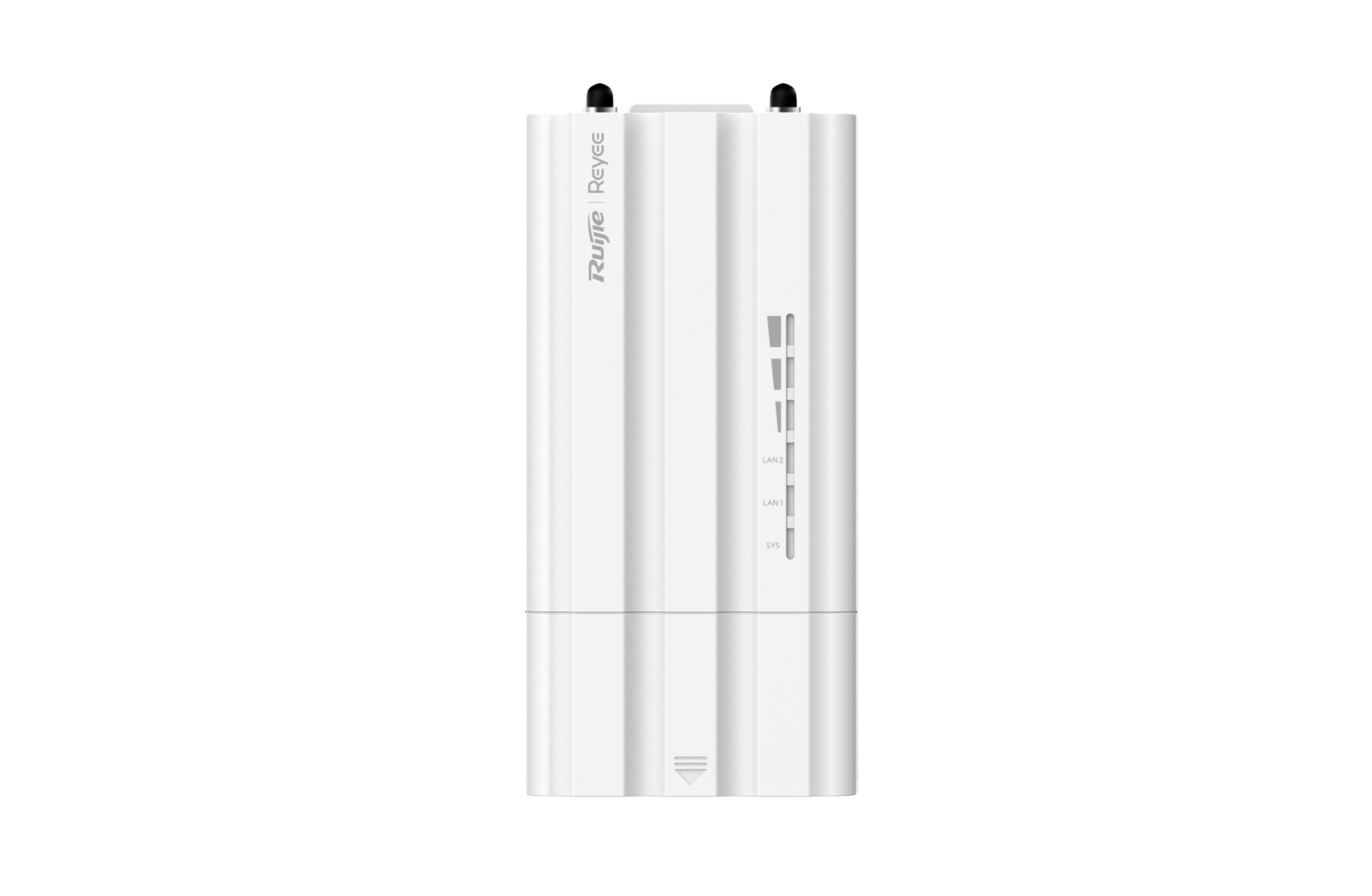

Ruijie RG-AirMetro550G-B, Base Station of RG-AirMetro Series Wireless Bridges (Single)

Highlight Features

• Wireless transmission distance of up to 10 km
• Supports up to 1:32 point-to-multipoint connections
• Easy device pairing in approximately 30 seconds
• 2 × Gigabit Ethernet ports for flexible connectivity
• Supports 24 V passive PoE and 12 V DC power input
• Compatible with solar power supply systems
• IP55-rated weather-resistant design
• 6 kV surge protection
• ±24 kV ESD protection for harsh environments
• All-in-one cloud management for simplified setup, monitoring and maintenance
• Datasheet

Key Specifications

Wireless Radio

• Radio Design: Dual-radio
• Total Spatial Streams: 3
• 2.4 GHz Radio: 1 × 1 SISO, 1 spatial stream
• 5 GHz Radio: 2 × 2 MIMO, 2 spatial streams
• 2.4 GHz Channel Width: Auto / 20 / 40 MHz
• 5 GHz Channel Width: Auto / 20 / 40 / 80 MHz

Dimensions

• Product Dimensions: 98.5 × 29 × 200 mm
• Imperial Dimensions: 3.88 × 1.14 × 7.87 in.
• Dimensions exclude the mounting bracket

Power

• PoE Input Ports: 1
• Supported Power Inputs: 24 V passive PoE and 12 V DC
• Solar Power Compatibility: Supported

Environment and Reliability

• Operating Temperature: –40°C to +80°C
• Operating Humidity: 5% to 95% RH, non-condensing
• MTBF: 400,000 hours, approximately 45 years
• Weather Protection: IP55
• Surge Protection: 6 kV
• ESD Protection: ±24 kV

Software Features

• Bridge Speed Test: Supported
• Self-Organising Network: Supported
• AI Heatmap: Supported
• Remote Restart Through Ruijie Reyee App: Supported
• SNMP v1, v2c and v3: Supported
