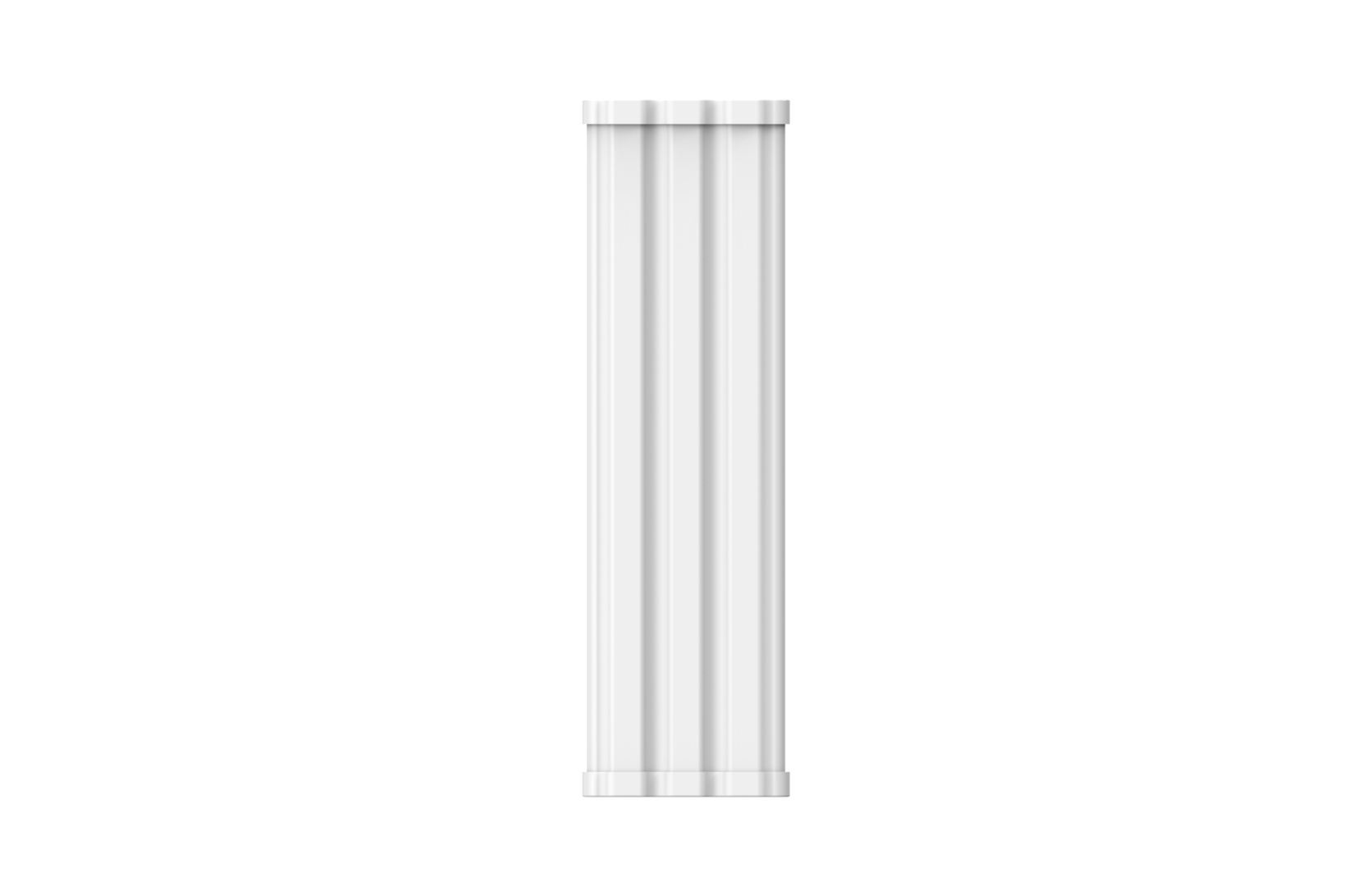

Ruijie RG-ANT16S-120, 120° Sector Antenna of RG-AirMetro Series Wireless Bridges (Single)

Highlight Features

• Choice of three antenna options for diverse application scenarios
• IP55-rated protection for reliable operation in harsh environments
• All-in-one cloud management for simplified setup, monitoring and maintenance
• Datasheet

Key Specifications

Antenna

• Horizontal Beamwidth: 120°
• Vertical Beamwidth: 10°

Dimensions

• Product Dimensions: 110 × 48.5 × 361 mm
• Imperial Dimensions: 4.33 × 1.91 × 14.21 in.
• Dimensions exclude the mounting bracket

Environment and Reliability

• Operating Temperature: –40°C to +80°C
• Operating Humidity: 5% to 95% RH, non-condensing
• MTBF: 400,000 hours, approximately 45 years
• Weather Protection: IP55
