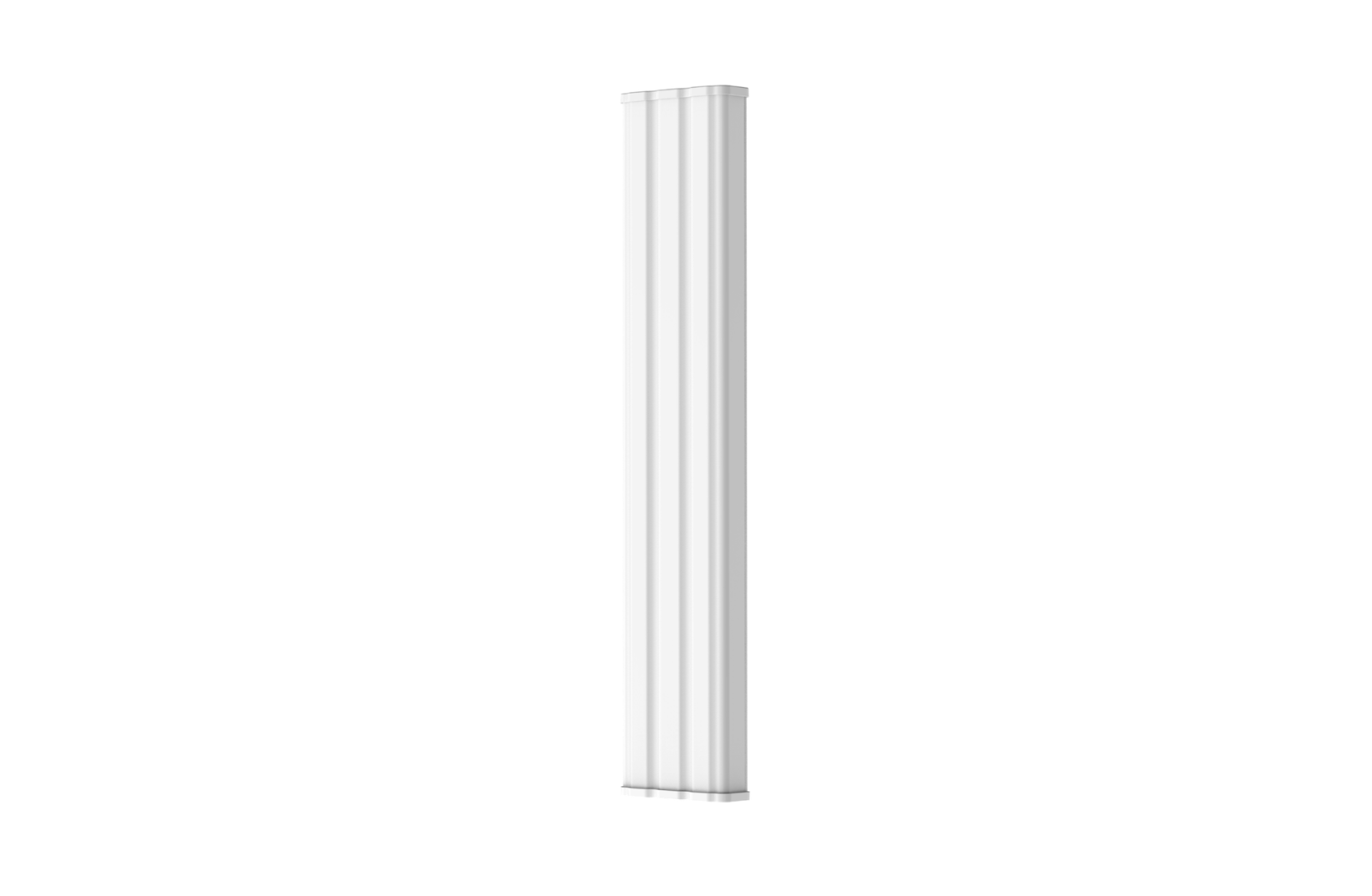

Ruijie RG-ANT20S-90, 90° Sector Antenna of RG-AirMetro Series Wireless Bridges (Single)

Highlight Features

• Choice of three antenna options for diverse application scenarios
• IP55-rated protection for reliable operation in harsh environments
• All-in-one cloud management for simplified setup, monitoring and maintenance
• Datasheet

Key Specifications

Antenna

• Horizontal Beamwidth: 90°
• Vertical Beamwidth: 7°

Dimensions

• Product Dimensions: 139.9 × 48.9 × 694 mm
• Imperial Dimensions: 5.51 × 1.93 × 27.32 in.
• Dimensions exclude the mounting bracket

Environment and Reliability

• Operating Temperature: –40°C to +80°C
• Operating Humidity: 5% to 95% RH, non-condensing
• MTBF: 400,000 hours, approximately 45 years
• Weather Protection: IP55
