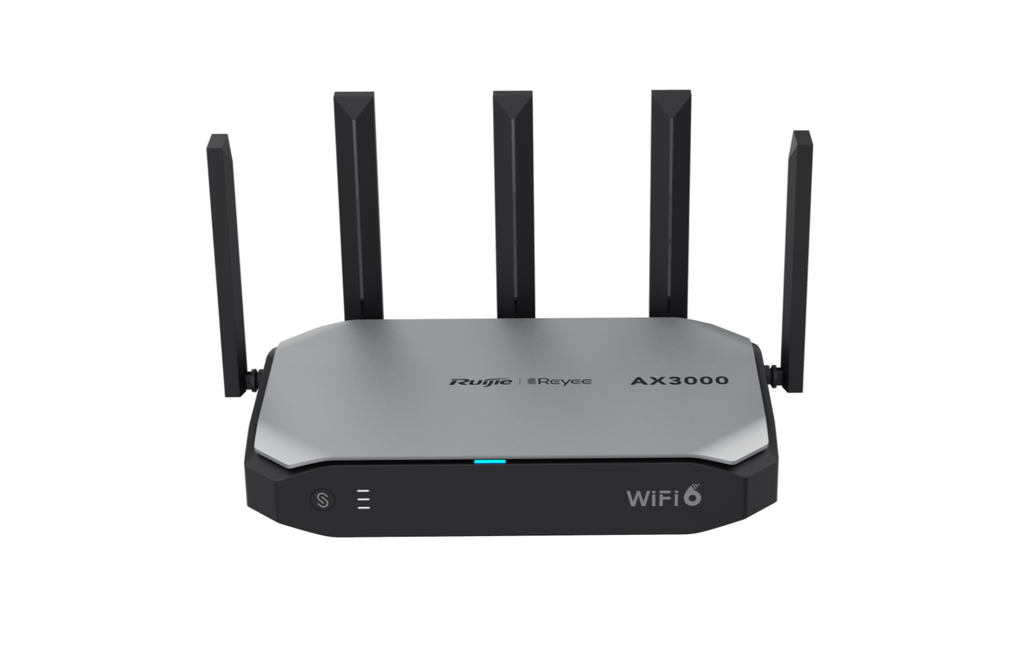

Ruijie RG-EG105GW-X Wi-Fi 6 AX3000 High-performance All-in-One Wireless Router

Highlight Features

• Professional and high-performance Wi-Fi 6 business VPN router

• All-in-one wireless router for easy network deployment

• One-click Reyee Mesh networking

• Enterprise-level features for diverse business scenarios

• Secure remote monitoring of NVRs, IP cameras and internal servers

• Supports up to 160 recommended concurrent clients

• Wireless speeds up to 2974 Mbps

• Network throughput up to 1200 Mbps

• Datasheet

Key Specifications

Hardware Specifications

Port Specifications

• 10/100/1000BASE-T Ports: 5

• Fixed LAN Ports: 1

• Fixed WAN Ports: 1

System Specifications

• CPU: Dual-core processor, 1.3 GHz

• Flash Memory: 128 MB SPI NAND Flash

• RAM: 512 MB DDR3

Wi-Fi Specifications

• Wi-Fi Standard: Wi-Fi 6 (IEEE 802.11ax)

• Backward Compatibility: IEEE 802.11a/b/g/n/ac

• Maximum Wireless Data Rate: 2974 Mbps

Software Specifications

System Performance

• Recommended Concurrent Clients: Up to 160

• Throughput: Up to 1200 Mbps

Dimensions and Weight

• Dimensions (W × D × H): 283 × 172 × 46 mm

• Dimensions in Inches: 11.14 × 6.77 × 1.81 in.

• Dimensions Exclude: Antennas and foot pads

• Weight: 1.2 kg (2.65 lb.) without packaging

Environment and Installation

• Mounting Option: Desktop

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
