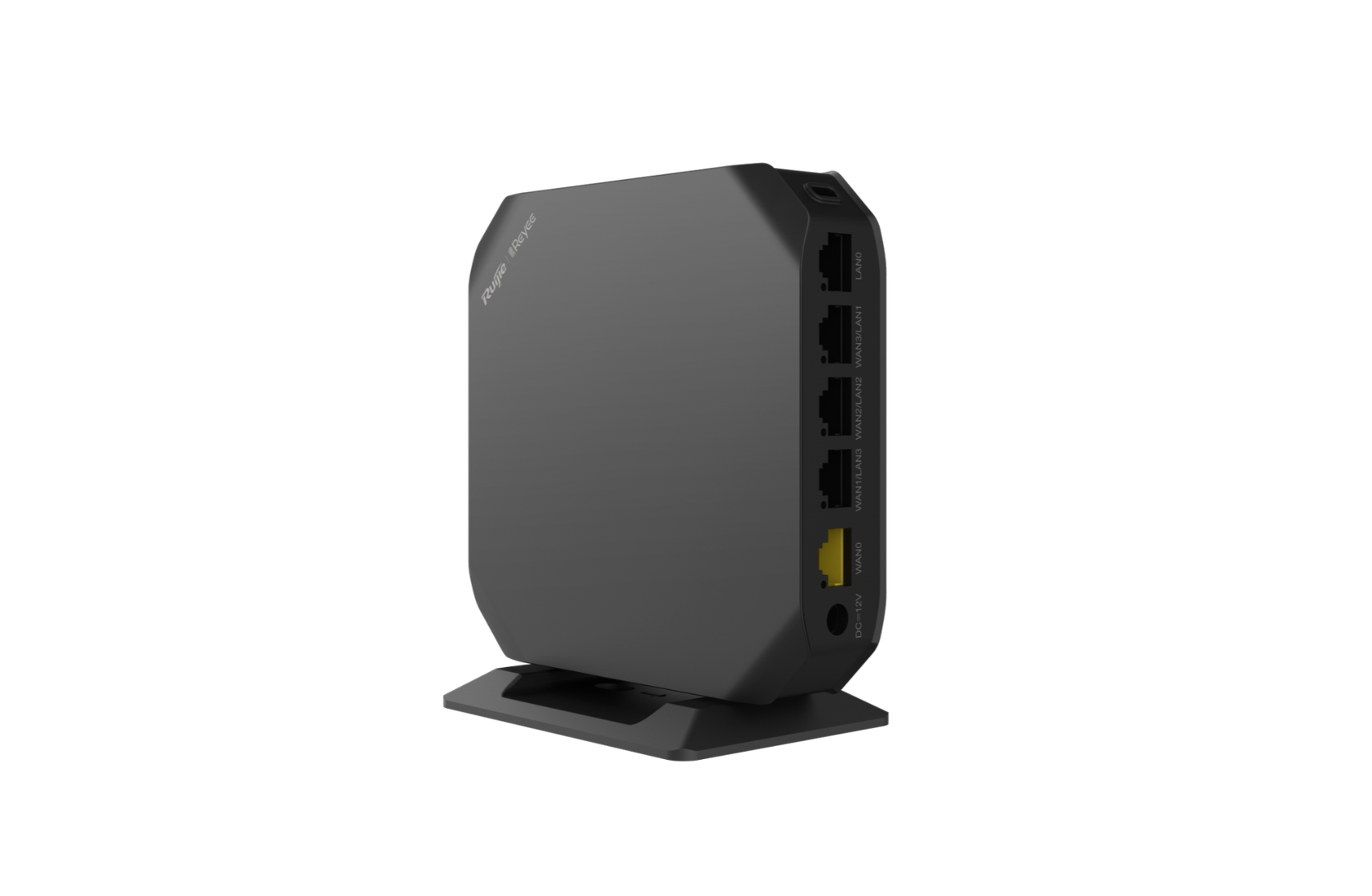

Ruijie RG-EG105GW(T) Wi-Fi 5 1267Mbps Wireless All-in-One Business Router

Highlight Features

• Professional wireless router designed for small businesses

• All-in-one wireless router for easy network setup

• One-click Reyee Mesh networking

• Flexible desktop or wall-mount installation

• Secure remote monitoring of NVRs, IP cameras and internal servers

• Supports up to 150 recommended concurrent clients

• Wireless speeds up to 1266 Mbps

• Gigabit Ethernet connectivity

• Datasheet

Key Specifications

Hardware Specifications

Port Specifications

• 10/100/1000BASE-T Ports: 5

• Fixed LAN Ports: 1

• Fixed WAN Ports: 1

System Specifications

• CPU: Dual-core processor, 880 MHz

• Flash Memory: 32 MB SPI NOR Flash

• RAM: 256 MB DDR3

Wi-Fi Specifications

• Wi-Fi Standard: Wi-Fi 5 (IEEE 802.11ac)

• Backward Compatibility: IEEE 802.11a/b/g/n

• Maximum Wireless Data Rate: 1266 Mbps

System Performance

• Recommended Concurrent Clients: Up to 150

• Throughput: Up to 700 Mbps

Dimensions and Weight

• Dimensions (W × D × H): 120 × 28 × 120 mm

• Dimensions in Inches: 4.72 × 1.10 × 4.72 in.

• Mounting Bracket: Dimensions exclude mounting bracket

• Weight: 0.251 kg (0.55 lb.) without packaging

Environment and Installation

• Mounting Options: Desktop or wall mount

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
