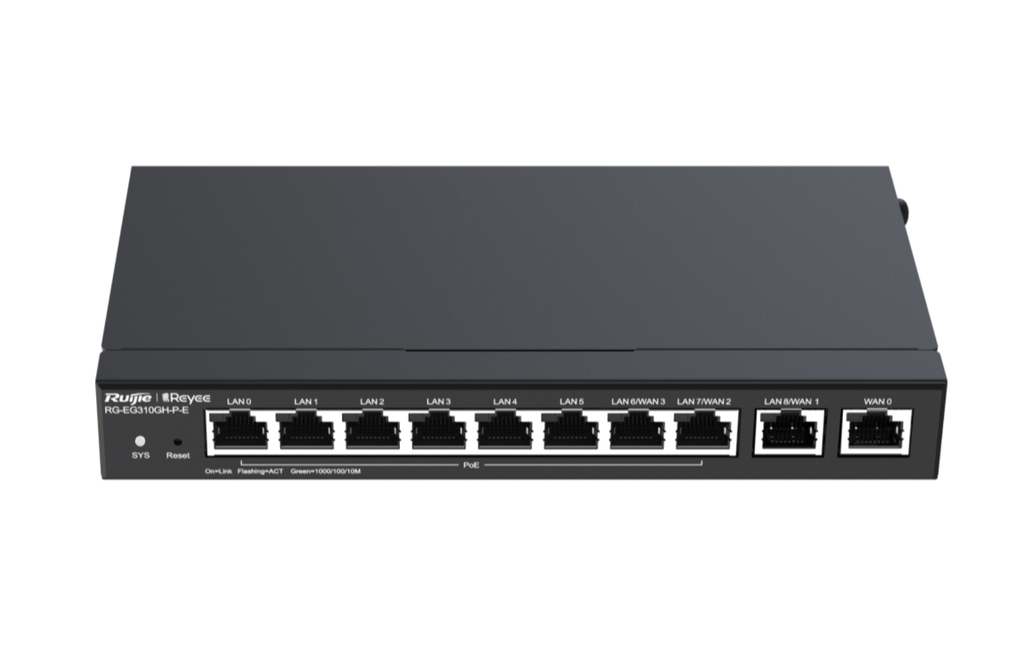

Ruijie RG-EG310GH-P-E, Reyee10-Port High-Performance Cloud Managed PoE Office Router

Highlight Features

• Up to 1.5 Gbps throughput

• High-performance VPN router designed for office networks

• Powerful VPN capabilities for branch offices and remote employees

• Traffic visualization and network monitoring

• Efficient bandwidth management based on applications and users

• Multi-WAN support

• Intelligent load balancing

• Supports up to 350 recommended concurrent clients

• Built-in PoE budget of up to 110 W

• Datasheet

Key Specifications

Hardware Specifications

Port Specifications

• 10/100/1000BASE-T Ports: 10

• Fixed LAN Ports: 6

• Fixed WAN Ports: 1

System Specifications

• CPU: Dual-core processor, 1.35 GHz per core

• Flash Memory: 256 MB

• RAM: 512 MB

Power Supply and Consumption

• PoE Budget: 110 W

System Performance

• Recommended Concurrent Clients: Up to 350

• Throughput in Turbo Mode: 1500 Mbps

• Throughput in Normal Mode: 1500 Mbps

Dimensions and Weight

• Dimensions (W × D × H): 202 × 108 × 28 mm

• Dimensions in Inches: 7.95 × 4.25 × 1.10 in.

• Weight: 1.50 kg (3.31 lb.)

Environment and Installation

• Mounting Option: Desktop

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
