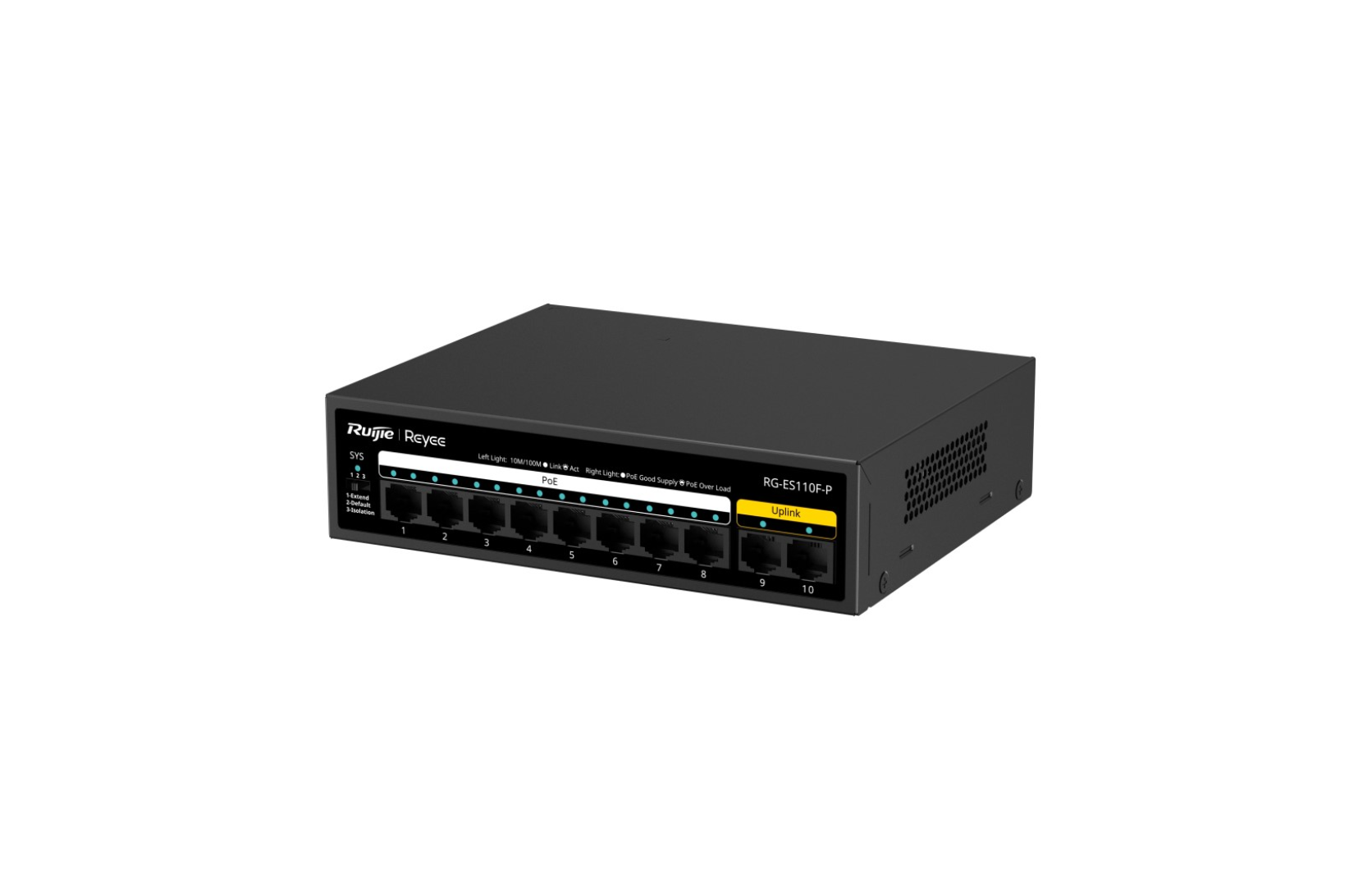

Ruijie RG-ES110F-P, 10-Port 10/100 Mbps Unmanaged PoE Switch

Highlight Features

• 10-port 10/100 Mbps unmanaged PoE switch
• Visible and monitorable through Ruijie Cloud
• Designed for intelligent and secure CCTV networks
• Intelligent PoE management for improved device reliability
• High-quality construction for dependable operation
• Suitable for a wide range of networking and surveillance scenarios
• Datasheet

Key Specifications

Product Information

• Product Category: Layer 2 unmanaged PoE switch
• Warranty: 3 years

Network Ports

• Total RJ45 Ports: 10
• 10/100BASE-T Ports: 10
• PoE Output Ports: 8
• PoE/PoE+ Output Ports: 8

PoE

• Total PoE Budget: 110 W
• PoE Power Pins: Pins 1–2 positive and pins 3–6 negative
• PoE Watchdog: Supported

Performance

• Forwarding Rate: 1.5 Mpps
• Switching Capacity: 2 Gbps

Security

• Port Isolation: Supported

Environment

• Operating Temperature: 0°C to 45°C
