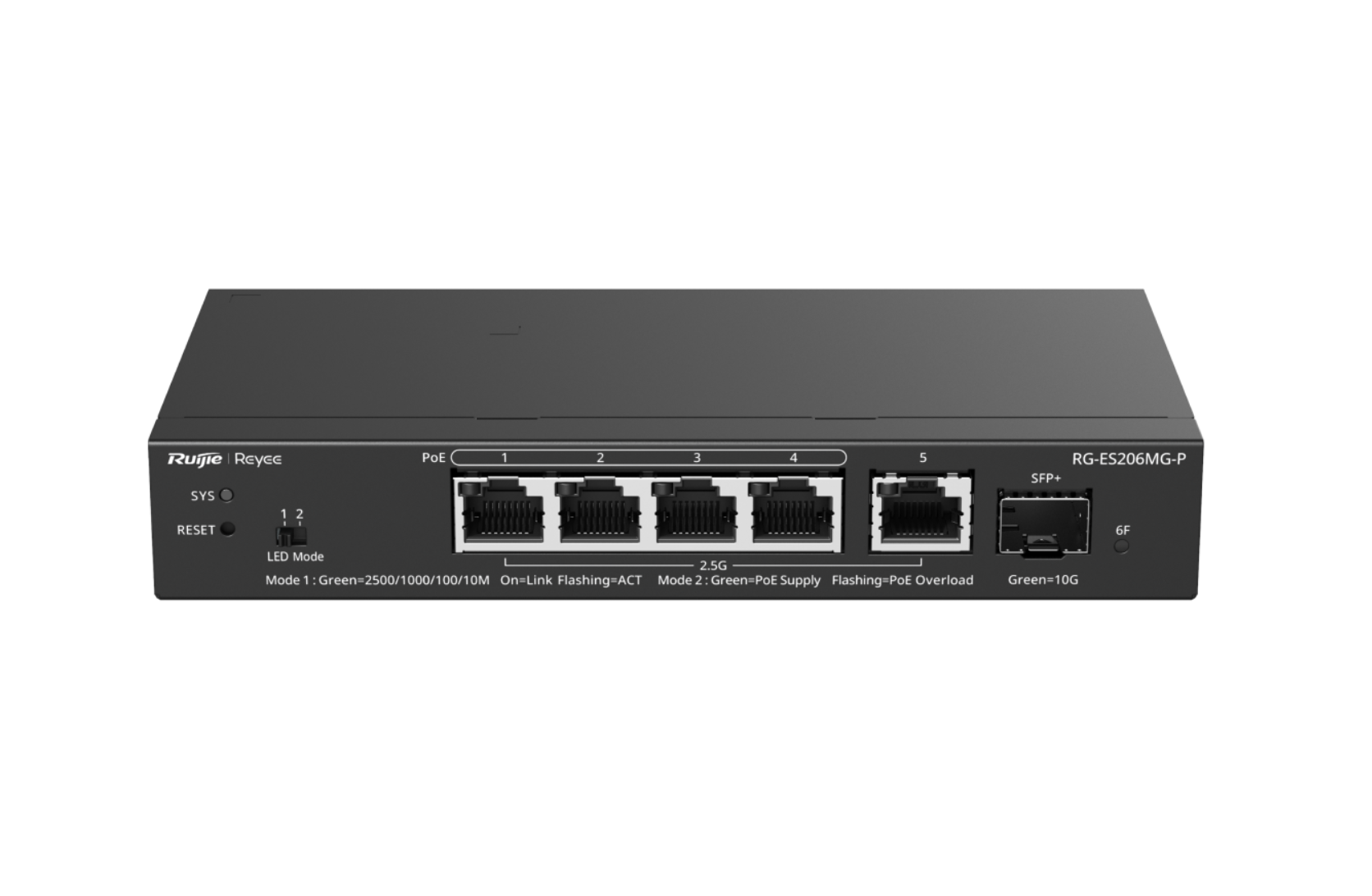

Ruijie RG-ES206MG-P, 5-Port 2.5G Cloud Managed PoE Switch, 1 x 10G Uplink

Highlight Features

• 5 × 2.5 Gigabit Ethernet ports and 1 × 10GE SFP+ port for high-speed network performance
• 4 × PoE/PoE+ output ports supporting IEEE 802.3af/at
• Total PoE power budget of 70 W
• Supports link aggregation of up to 4 ports for increased bandwidth
• Cost-effective smart cloud-managed switching solution
• Lifetime free remote management through Ruijie Cloud from anywhere
• Datasheet

Key Specifications

Product Information

• Product Category: Layer 2 cloud-managed PoE switch
• Warranty: 3 years

Network Ports

• Total RJ45 Ports: 5
• 10/100/1000/2500BASE-T Ports: 5
• Total Optical Ports: 1
• 10GE SFP+ Ports: 1

PoE

• PoE Output Ports: 4
• PoE/PoE+ Output Ports: 4
• Supported PoE Standards: IEEE 802.3af/at
• Total PoE Budget: 70 W
• PoE Power Pins: Pins 1–2 positive and pins 3–6 negative
• PoE Watchdog: Supported

Performance

• Forwarding Rate: 33.75 Mpps
• Switching Capacity: 45 Gbps
• Link Aggregation: Supports aggregation of up to 4 ports

Security

• Port Isolation: Supported

Cloud Management

• Ruijie Cloud Management: Supported
• Lifetime Free Cloud Management: Supported
• Remote Management: Supported

Environment

• Operating Temperature: 0°C to 40°C
