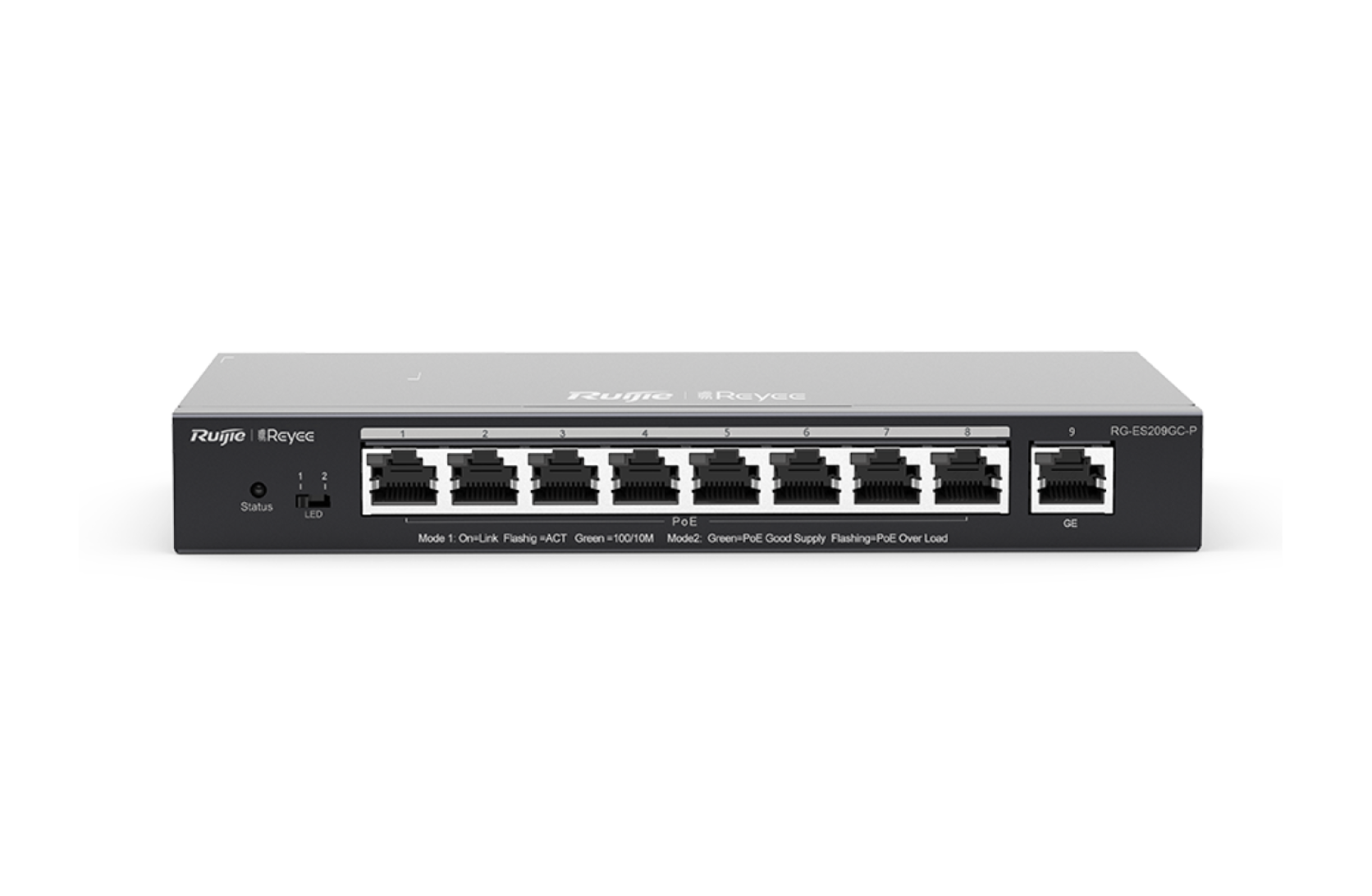

Ruijie RG-ES209GC-P, 9-Port Gigabit Smart Cloud Managed PoE Switch

Highlight Features

• 9-port Gigabit cloud-managed switch with 8 PoE+ ports
• Cost-effective smart cloud-managed switching solution
• Automatic IP camera recognition for CCTV networks
• Automatic loop prevention helps maintain network service continuity
• Lifetime remote management through Ruijie Cloud from anywhere
• Datasheet

Key Specifications

Product Information

• Product Category: Layer 2 cloud-managed PoE switch
• Warranty: 3 years

Network Ports

• Total RJ45 Ports: 9
• 10/100/1000BASE-T Ports: 9

PoE

• PoE Output Ports: 8
• PoE/PoE+ Output Ports: 8
• Total PoE Budget: 120 W
• PoE Power Pins: Pins 1–2 positive and pins 3–6 negative
• PoE Watchdog: Supported

Performance

• Forwarding Rate: 13.4 Mpps
• Switching Capacity: 18 Gbps

Security

• Port Isolation: Supported
• Automatic Loop Prevention: Supported

Cloud Management

• Ruijie Cloud Management: Supported
• Remote Management: Supported
• IP Camera Recognition: Supported

Environment

• Operating Temperature: 0°C to 40°C
