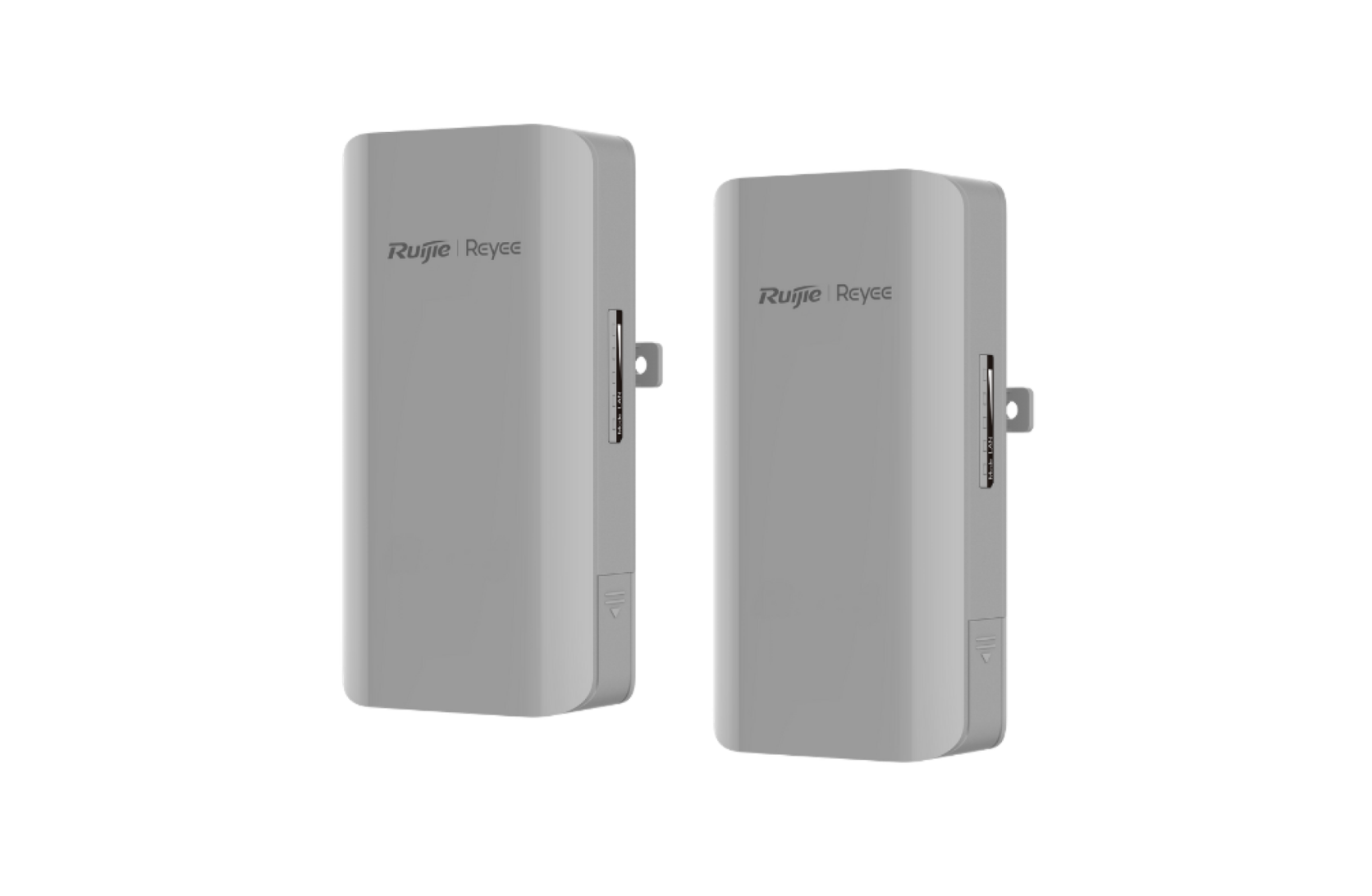

Ruijie RG-EST310 V2, 5GHz Dual-stream 802.11ac 1KM Wireless Bridge (Pair)

RG-EST310 V2 Wireless Bridge

Highlight Features

• Stable traffic transmission over distances of up to 1 km
• Factory-paired for quick installation
• Automatically reconnects after power is restored
• IP54 weather-resistant design
• Operates reliably in temperatures from –30°C to +55°C
• Cost-effective wireless solution for elevator CCTV systems
• Helps avoid damage and maintenance issues associated with elevator cabling
• Datasheet

Key Specifications

Wireless Radio

• Radio Design: Single-radio
• Spatial Streams: 2
• 5 GHz Radio: 2 × 2 MIMO
• Channel Width: Auto / 20 / 40 / 80 MHz

Antenna

• Horizontal Beamwidth: 60°
• Vertical Beamwidth: 30°

Dimensions

• Product Dimensions: 76 × 37 × 147 mm
• Imperial Dimensions: 2.99 × 1.46 × 5.79 in.
• Dimensions exclude the mounting bracket

Power

• PoE Input Ports: 1

Environment and Reliability

• Operating Temperature: –30°C to +55°C
• Operating Humidity: 5% to 95% RH, non-condensing
• MTBF: 400,000 hours, approximately 45 years
• Weather Protection: IP54

Software Features

• Bridge Speed Test: Supported
• Self-Organising Network: Supported
• Restart Through Ruijie Reyee App: Supported
• AI Heatmap: Not supported
• SNMP v1, v2c and v3: Not supported
