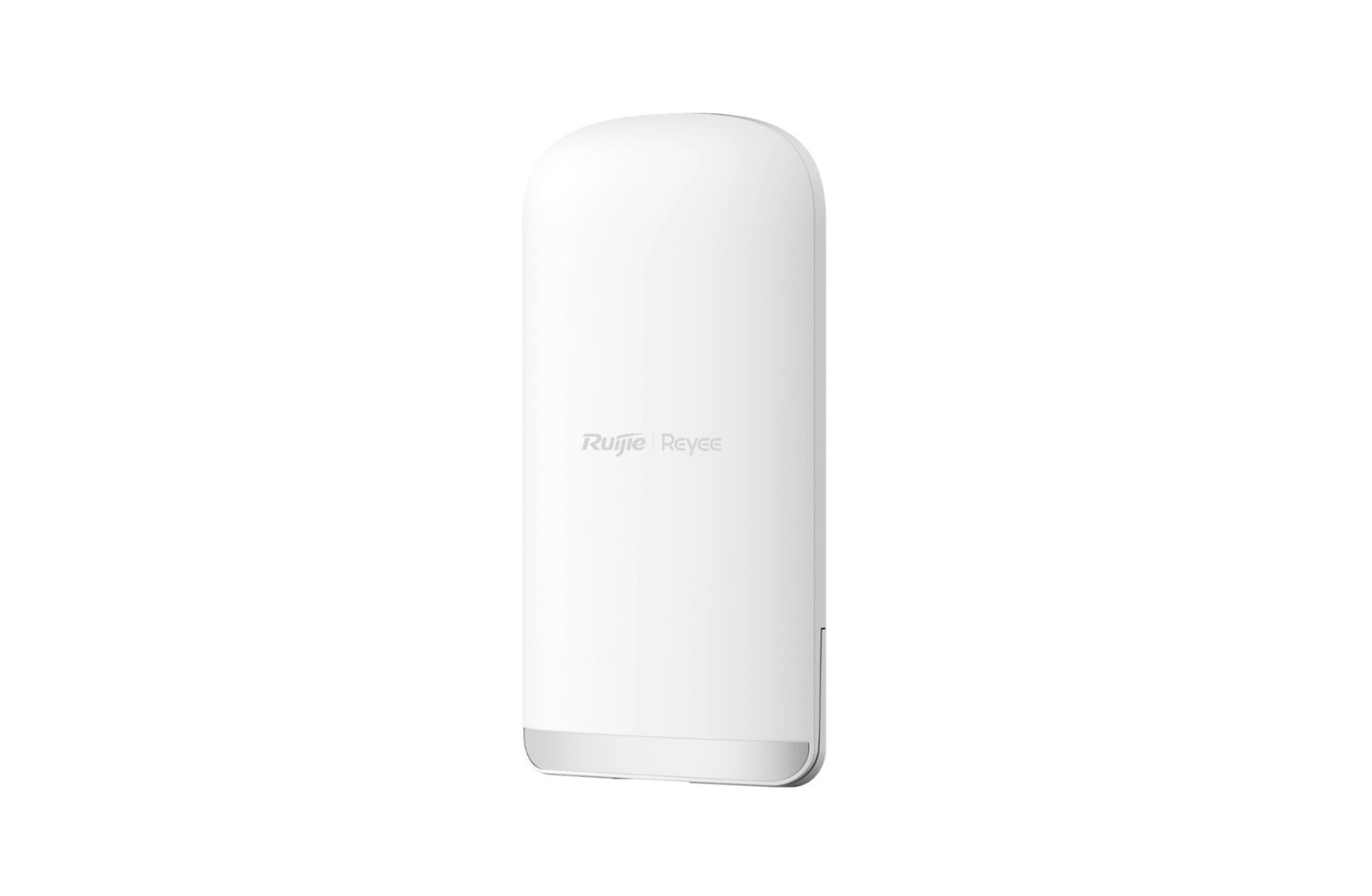

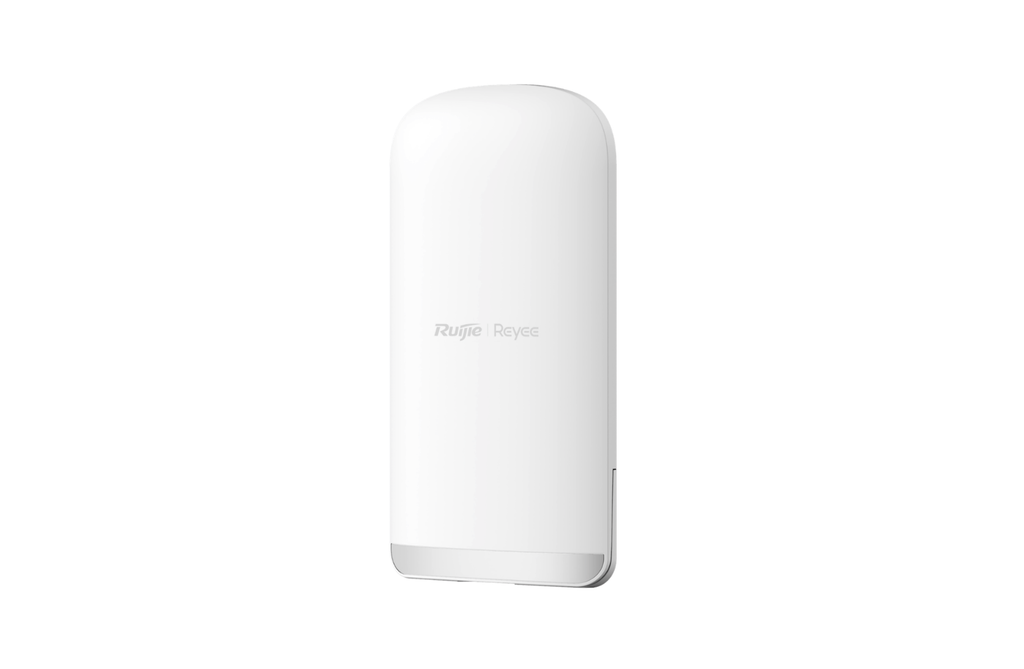

Ruijie RG-EST330F-P, 3 km, 13 dBi Wireless Bridge (Single)

Highlight Features

• 3 × Fast Ethernet ports, including 2 × PoE output ports
• Supports three power supply options:
  • 12 V DC
  • Passive PoE
  • IEEE 802.3af/at PoE
• Supports TDMA
• Supports Self-Organising Network functionality
• Datasheet

Key Specifications

Wireless Radio

• Radio Design: Dual-radio
• Total Spatial Streams: 3
• 2.4 GHz Radio: 1 × 1 SISO, 1 spatial stream
• 5 GHz Radio: 2 × 2 MIMO, 2 spatial streams
• 2.4 GHz Channel Width: Auto / 20 / 40 MHz
• 5 GHz Channel Width: Auto / 20 / 40 / 80 MHz

Antenna

• Horizontal Beamwidth: 30°
• Vertical Beamwidth: 30°

Dimensions

• Product Dimensions: 103 × 53.4 × 199 mm
• Imperial Dimensions: 4.06 × 2.1 × 7.83 in.
• Dimensions exclude the mounting bracket

Power and PoE

• PoE Input Ports: 1
• PoE/PoE+ Input Ports: 1
• PoE Output Ports: 2
• Supported Power Inputs: 12 V DC, Passive PoE and IEEE 802.3af/at PoE

Environment and Reliability

• Operating Temperature: –30°C to +55°C
• Operating Humidity: 5% to 95% RH, non-condensing
• MTBF: 400,000 hours, approximately 45 years
• Weather Protection: IP55

Software Features

• Bridge Speed Test: Supported
• Self-Organising Network: Supported
• AI Heatmap: Supported
• Remote Restart Through Ruijie Reyee App: Supported
• SNMP v1, v2c and v3: Not supported
