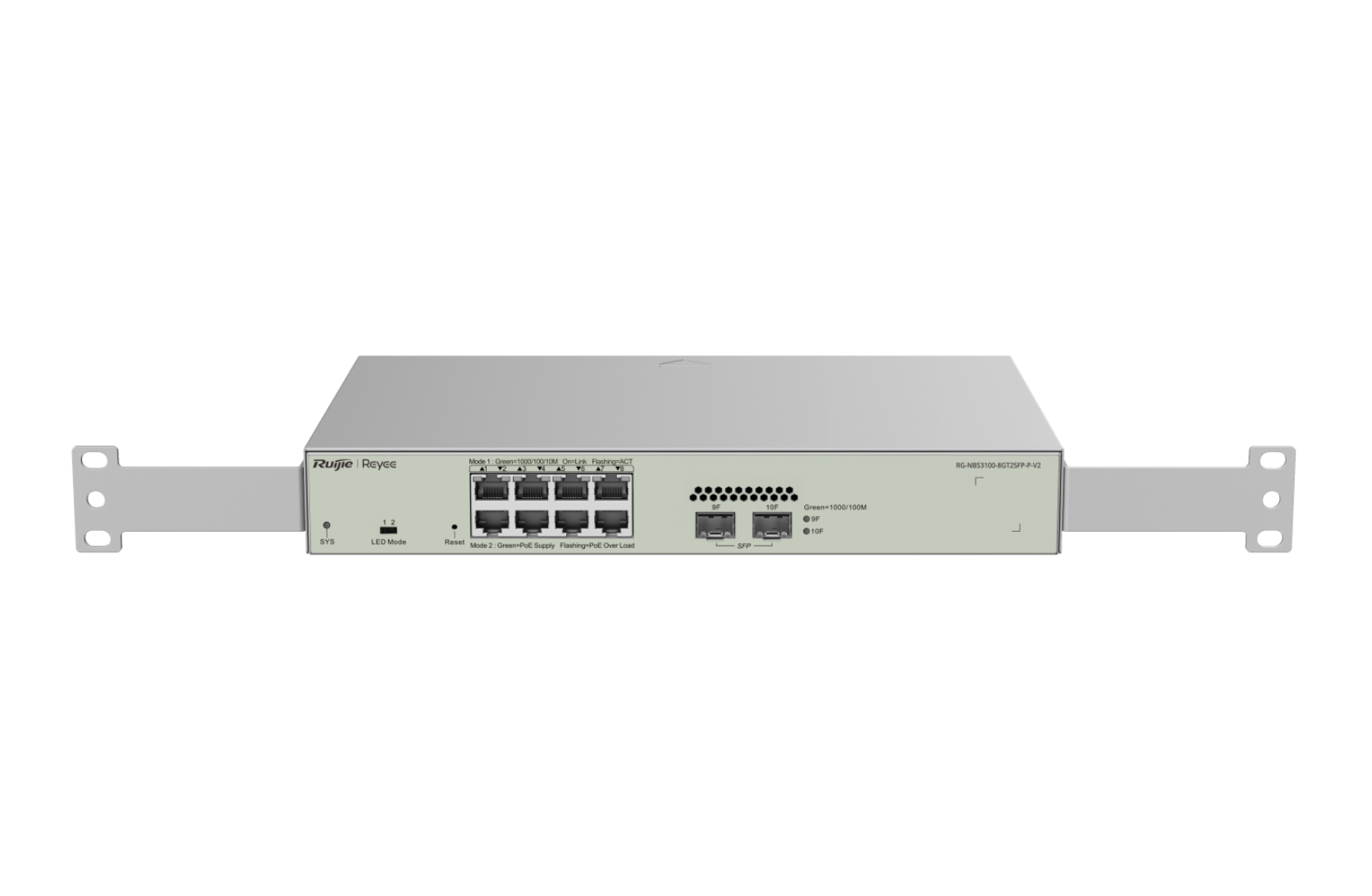

Ruijie RG-NBS3100-8GT2SFP-P-V2, 10-Port Gigabit Layer 2 Cloud Managed PoE Switch

Highlight Features

• 10-port Gigabit Layer 2 managed PoE switch with 2 SFP uplink ports
• Enterprise-class build quality for reliable, high-performance networking
• Automatic IP camera recognition for CCTV networks
• Multiple security policies help protect the network
• Lifetime remote management through Ruijie Cloud from anywhere
• Datasheet

Key Specifications

Product Information

• Product Category: Layer 2 managed PoE switch
• Warranty: 5 years

Network Ports

• Total RJ45 Ports: 8
• 10/100/1000BASE-T Ports: 8
• Total Optical Ports: 2
• 1GE SFP Ports: 2
• Total Ports: 10
• 1GE Combo Ports: Not supported
• 10GE SFP+ Ports: Not supported
• 2.5G/5G/10G Ethernet Ports: Not supported

PoE

• PoE Output Ports: 8
• PoE/PoE+ Output Ports: 8
• PoE++ Output Ports: Not supported
• Total PoE Budget: 125 W
• PoE Power Pins: Pins 1–2 positive and pins 3–6 negative
• PoE Watchdog: Supported

Performance

• Forwarding Rate: 14.88 Mpps
• Switching Capacity: 20 Gbps
• Jumbo Frame Size: Up to 9216 bytes

Security

• Port Isolation: Supported
• Broadcast Storm Control: Supported

Environment and Reliability

• Operating Temperature: 0°C to +50°C
• MTBF: 400,000 hours
• Operating Altitude: –500 m to +5,000 m
• Storage Altitude: –500 m to +5,000 m

Surge Protection

• Service Ports: ±6 kV common-mode protection
• Power Connector: ±6 kV common-mode and differential-mode protection

Cloud Management

• Ruijie Cloud Management: Supported
• Lifetime Remote Management: Supported
• IP Camera Recognition: Supported
