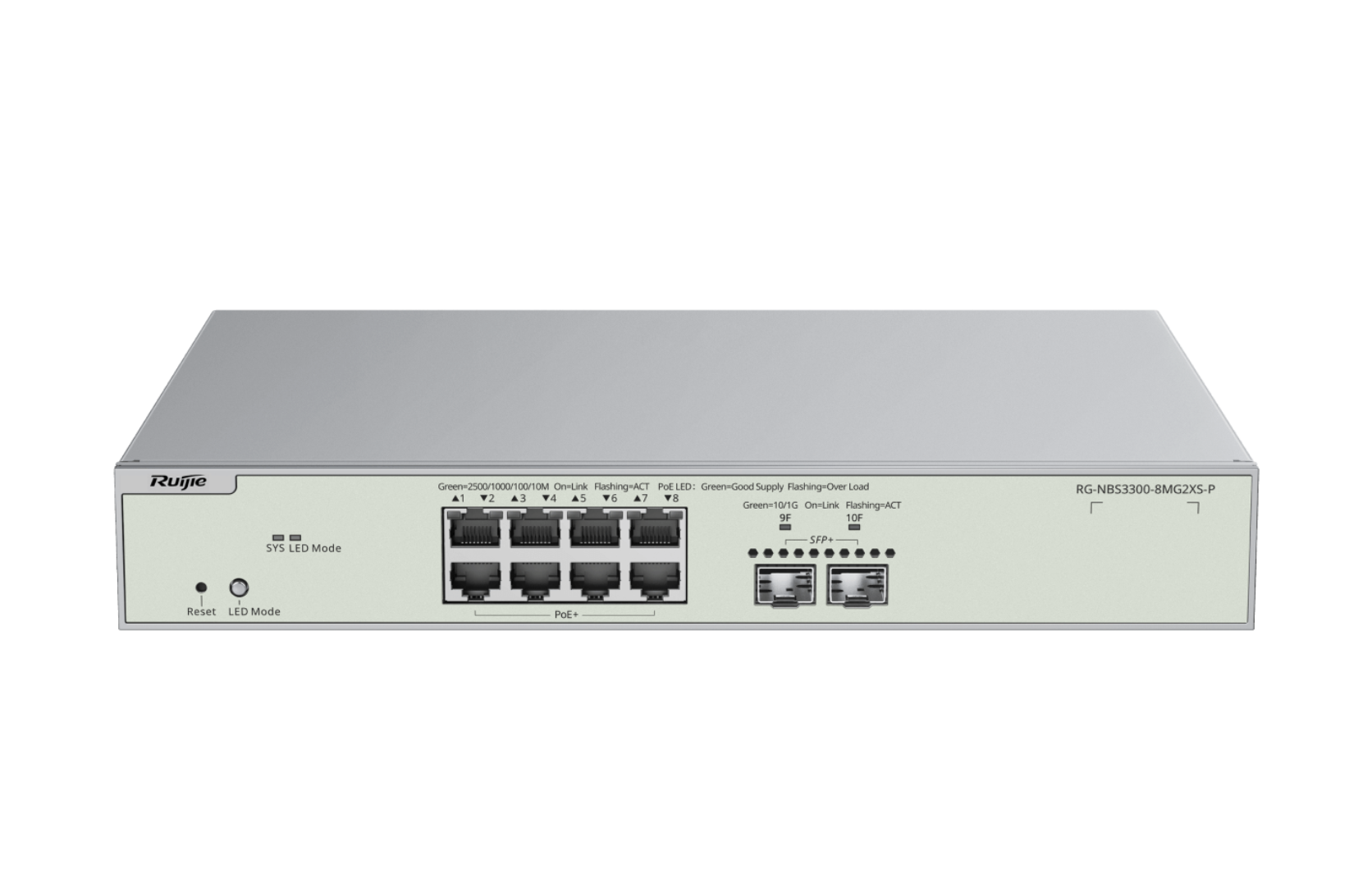

Ruijie RG-NBS3300-8MG2XS-P, 8-Port Muti-Gigabit Layer 2 Managed Switch with 8 x PoE+ Ports, and 2 x SFP+ Uplink Ports

Highlight Features

• 2.5 Gbps Ethernet ports exceed Gigabit speeds and unlock the full performance of Wi-Fi 6 and Wi-Fi 7 access points
• Control Plane Protection helps protect the CPU against attacks, maintaining system performance and stability
• Enterprise-grade build quality ensures reliable, high-performance networking
• Multiple security policies help protect the network
• Easy remote cloud management from anywhere
• Datasheet

Key Specifications

Product Information

• Product Category: Layer 2+ managed PoE switch
• Warranty: 5 years

Network Ports

• Total RJ45 Ports: 8
• 10/100/1000/2500BASE-T Ports: 8
• Total Optical Ports: 2
• 10GE SFP+ Ports: 2
• Total Ports: 10
• 1GE Combo Ports: Not supported
• 1GE SFP Ports: Not supported
• 10GBASE-T Ports: Not supported

PoE

• PoE Output Ports: 8
• PoE/PoE+ Output Ports: 8
• PoE++ Output Ports: Not supported
• Total PoE Budget: 240 W
• PoE Power Pins: Pins 1–2 positive and pins 3–6 negative
• PoE Watchdog: Supported

Performance

• Forwarding Rate: 59.52 Mpps
• Switching Capacity: 80 Gbps
• Jumbo Frame Size: Up to 9216 bytes

Security

• Control Plane Protection: Supported
• Port Isolation: Supported
• Broadcast Storm Control: Supported

Environment and Reliability

• Operating Temperature: 0°C to +50°C
• MTBF: 400,000 hours
• Operating Altitude: –500 m to +5,000 m
• Storage Altitude: –500 m to +5,000 m

Surge Protection

• Service Ports: ±6 kV common-mode protection
• Power Connector: ±6 kV common-mode and differential-mode protection

Cloud Management

• Cloud Management: Supported
• Remote Management: Supported
