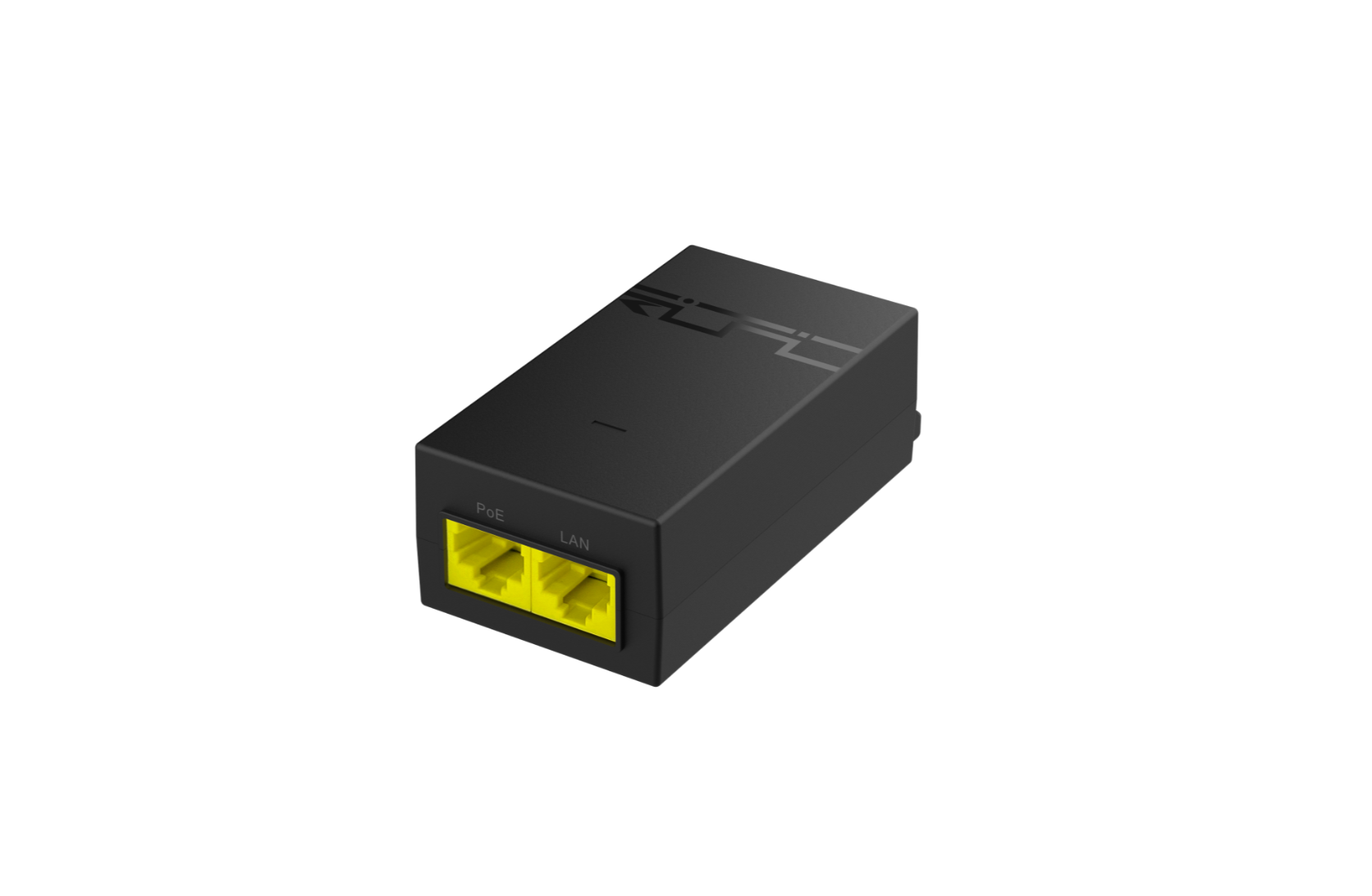

Ruijie RG-POE-AF15, 1-Port PoE Injector (1000Base-T, 52 V, 15.6 W)

Highlight Features

• Provides a stable, high-performance power supply for compatible wireless access points
• Wide operating temperature range from –10°C to +45°C
• High surge-current protection for improved reliability
• Datasheet

Key Specifications

Power Output

• Output Voltage: 52 V DC, 0.3 A
• Maximum Output Power: 15.6 W
• PoE Standard: 52 V passive PoE

Network Port

• Ethernet Port: 1 × 1000BASE-T Gigabit port

Power Input

• Rated Input Voltage: 100–240 V AC, 50/60 Hz
• Maximum Input Current: 0.5 A
• Inrush Current: Less than 80 A at 230 V AC

Environment

• Operating Temperature: –10°C to +45°C
• Storage Temperature: –40°C to +70°C

Dimensions and Weight

• Dimensions: 92 × 46.5 × 29.5 mm
• Imperial Dimensions: 3.62 × 1.83 × 1.16 in.
• Dimensional Tolerance: ±1 mm (±0.04 in.)
• Weight: 95 ± 5 g (3.35 ± 0.18 oz)

Protection and Warranty

• Surge Protection Rating: Not specified
• Maximum Discharge Current: 2000 A (8/20 µs)
• Warranty: 3 years
