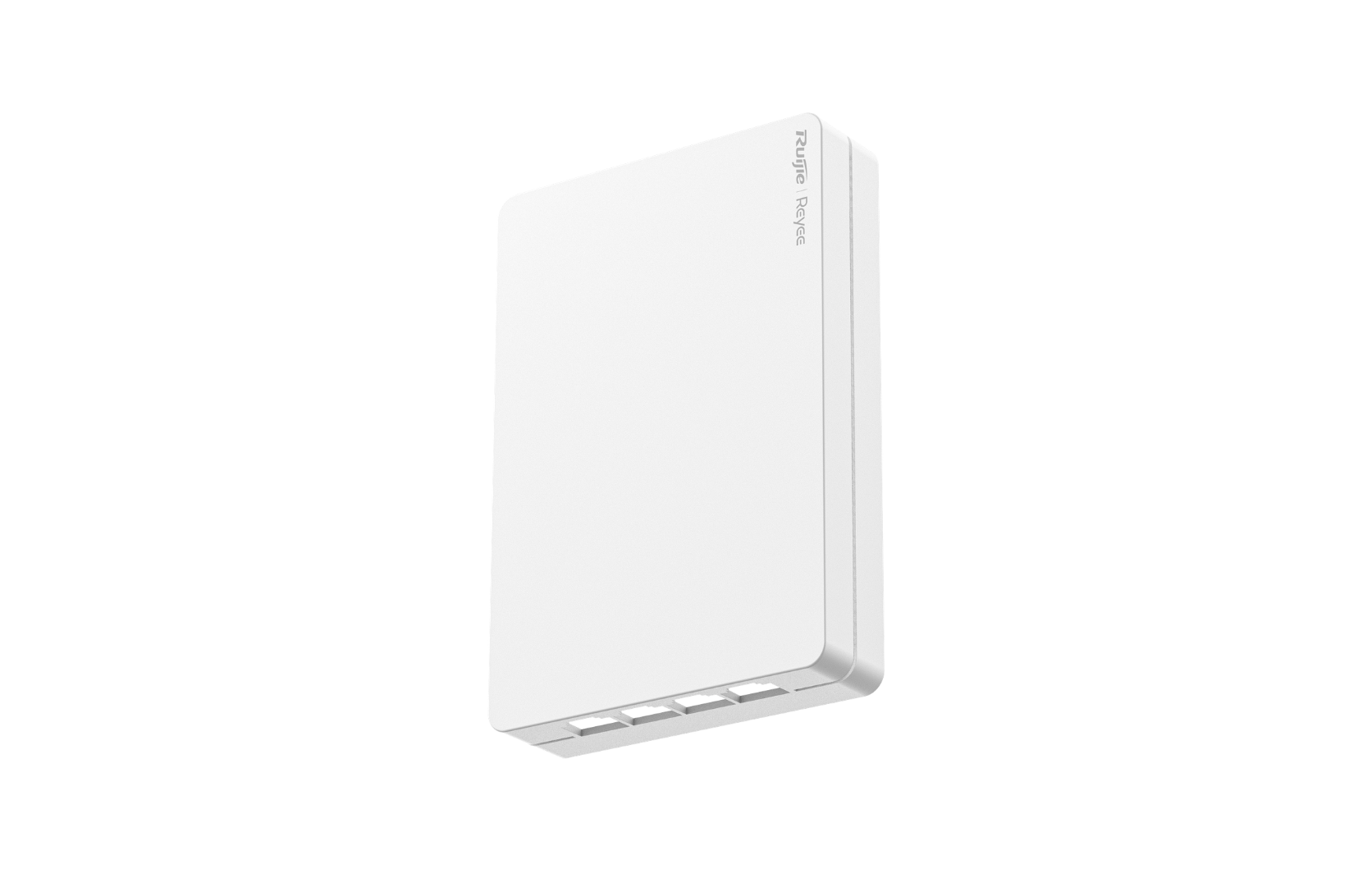

Ruijie RG-RAP1260, Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point

Highlight Features

• Gigabit wall-mounted wireless access point with dual-radio performance
• Wi-Fi 6 MU-MIMO technology delivers an improved multi-user experience
• Easy installation with broad junction-box compatibility
• Supports Reyee Mesh and IEEE 802.11k/v/r for improved wireless roaming
• Powerful standalone captive portal managed through Ruijie Cloud
• Datasheet

Key Specifications

Product Information

• Product Type: Wall-mounted wireless access point
• Colour: White
• Mounting Option: Junction box
• Protection Rating: IP41

Wireless Radio

• Wireless Standard: Wi-Fi 6
• Radio Design: Dual-radio
• Total Spatial Streams: 4
• 2.4 GHz Radio: 2 × 2 MU-MIMO
• 5 GHz Radio: 2 × 2 MU-MIMO
• Maximum Wireless Data Rate: 2974 Mbps
• 2.4 GHz Data Rate: Up to 573 Mbps
• 5 GHz Data Rate: Up to 2401 Mbps
• 6 GHz Support: No

Antenna

• 5 GHz Antenna: 1 × built-in omnidirectional antenna
• Dual-Band Antennas: 2 × built-in omnidirectional antennas supporting 2.4 GHz and 5 GHz
• Antenna Design: Internal

Dimensions and Weight

• Product Dimensions: 86 × 24 × 124 mm
• Imperial Dimensions: 3.39 × 0.94 × 4.88 in.
• Dimensions exclude the mounting bracket
• Weight: Up to 0.26 kg (0.57 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 5

Power Supply and Consumption

• Power Supply: PoE/PoE+
• Local DC Power: Not supported
• DC Connector: Not applicable
• PoE Budget: Not applicable
• Maximum Power Consumption: 12 W

Environment and Installation

• Operating Temperature: 0°C to 40°C
• Mounting Option: Junction box
• IP Rating: IP41

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 256
• Maximum Clients with Both Radios Enabled: 256
• Maximum Managed Devices: 300

Network Features

• Reyee Mesh: Supported
• IEEE 802.11k/v/r: Supported
• Standalone Captive Portal: Supported through Ruijie Cloud
• IPv6: Supported
