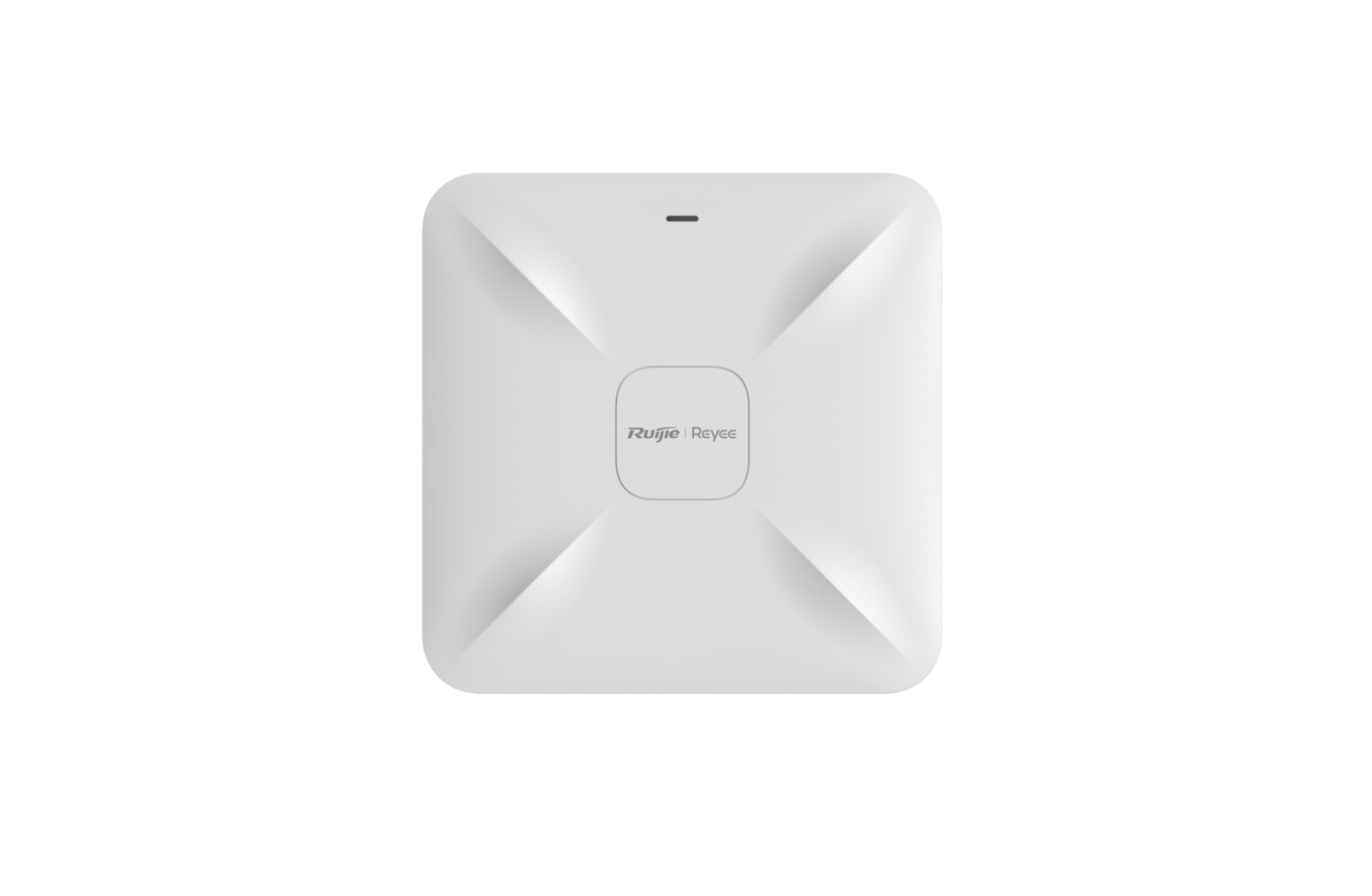

Ruijie RG-RAP2200(E) Reyee Wi-Fi 5 1267Mbps Ceiling Access Point

Highlight Features

• Dual-radio wireless performance with speeds of up to 1.267 Gbps
• Supports 802.11ac Wave 2 MU-MIMO for improved multi-user performance
• One-click optimisation for the entire wireless network
• Quick Wi-Fi setup through the Ruijie Cloud App in approximately 3 minutes
• Remote network monitoring and maintenance through Ruijie Cloud
• Datasheet

Key Specifications

Product Information

• Product Type: Ceiling-mounted wireless access point
• Colour: White
• Mounting Options: Ceiling or wall

Wireless Radio

• Radio Design: Dual-radio
• Total Spatial Streams: 4
• 2.4 GHz Radio: 2 × 2 MIMO
• 5 GHz Radio: 2 × 2 MIMO
• Maximum Wireless Data Rate: 1266 Mbps
• 2.4 GHz Data Rate: Up to 400 Mbps
• 5 GHz Data Rate: Up to 866 Mbps
• 6 GHz Support: No

Antenna

• 2.4 GHz Antennas: 2 × built-in omnidirectional antennas
• 5 GHz Antennas: 2 × built-in omnidirectional antennas

Dimensions and Weight

• Product Dimensions: 194 × 194 × 35 mm
• Imperial Dimensions: 7.64 × 7.64 × 1.38 in.
• Dimensions exclude the mounting bracket
• Weight: Up to 0.45 kg (0.99 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 2

Power Supply and Consumption

• Supported Power Options:
  • DC power adapter
  • PoE/PoE+
• When both DC and PoE power are available, the DC power adapter takes priority
• DC Input: 12 V, 1.5 A
• DC Connector Outer Diameter: 5.5 mm
• DC Connector Inner Diameter: 2.1 mm
• DC Connector Depth: 10 mm
• PoE Budget: Not applicable
• Maximum Power Consumption: 12.95 W

Environment and Installation

• Operating Temperature: 0°C to 40°C
• Mounting Options: Ceiling or wall
• IP Rating: Not rated

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 110
• Maximum Clients with Both Radios Enabled: 110
• Maximum Managed Devices: 300

Network Features

• IPv6: Supported
