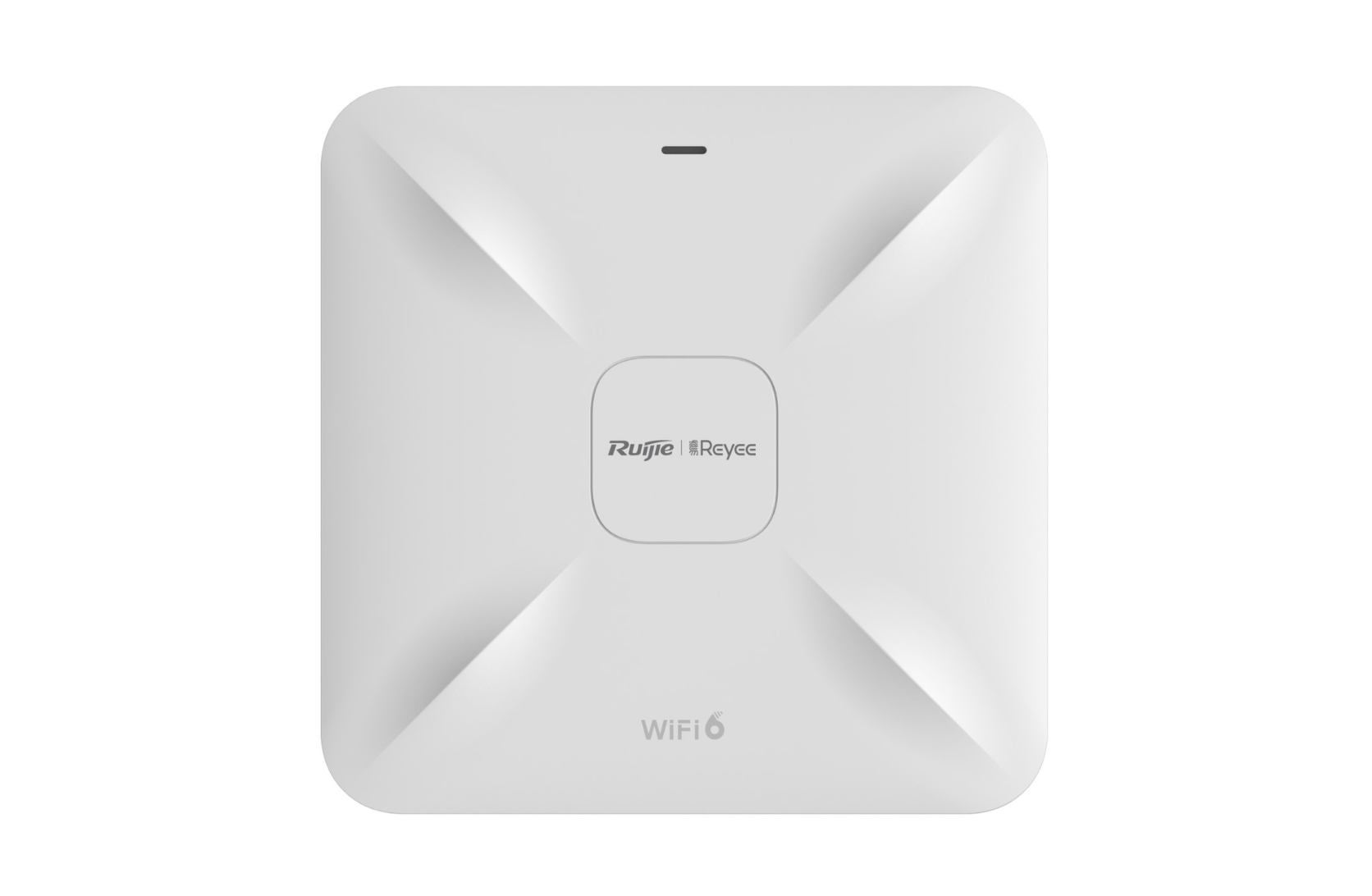

Ruijie RG-RAP2260(G) Reyee Wi-Fi 6 AX1800 Ceiling Access Point

Highlight Features

• Build an ultra-fast wireless network with Wi-Fi 6 technology
• Supports more than 500 client connections for improved multi-user performance
• Delivers higher practical throughput and a better user experience
• Easily expand the wireless network using Reyee Mesh technology
• Set up a Wi-Fi 6 network in approximately 3 minutes using the Ruijie Cloud App
• Datasheet

Key Specifications

Product Information

• Product Type: Ceiling-mounted wireless access point
• Colour: White
• Mounting Options: Ceiling or wall
• Protection Rating: IP41

Wireless Radio

• Radio Design: Dual-radio
• Total Spatial Streams: 4
• 2.4 GHz Radio: 2 × 2 MU-MIMO
• 5 GHz Radio: 2 × 2 MU-MIMO
• Maximum Wireless Data Rate: 1774 Mbps
• 2.4 GHz Data Rate: Up to 573 Mbps
• 5 GHz Data Rate: Up to 1201 Mbps
• 6 GHz Support: No

Antenna

• 2.4 GHz Antennas: 2 × built-in omnidirectional antennas
• 5 GHz Antennas: 2 × built-in omnidirectional antennas

Dimensions and Weight

• Product Dimensions: 194 × 194 × 35 mm
• Imperial Dimensions: 7.64 × 7.64 × 1.38 in.
• Dimensions exclude the mounting bracket
• Weight: Up to 0.55 kg (1.21 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 2

Power Supply and Consumption

• Supported Power Options:
  • DC power adapter
  • PoE/PoE+
• When both DC and PoE power are available, the DC power adapter takes priority
• DC Input: 12 V, 1.5 A
• DC Connector Outer Diameter: 5.5 mm
• DC Connector Inner Diameter: 2.1 mm
• DC Connector Depth: 10 mm
• PoE Budget: Not applicable
• Maximum Power Consumption: 15.5 W

Environment and Installation

• Operating Temperature: 0°C to 40°C
• Mounting Options: Ceiling or wall
• IP Rating: IP41

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 256
• Maximum Clients with Both Radios Enabled: 256
• Maximum Managed Devices: 300

Network Features

• Wi-Fi 6: Supported
• Reyee Mesh: Supported
• Ruijie Cloud App Setup: Supported
• IPv6: Supported
