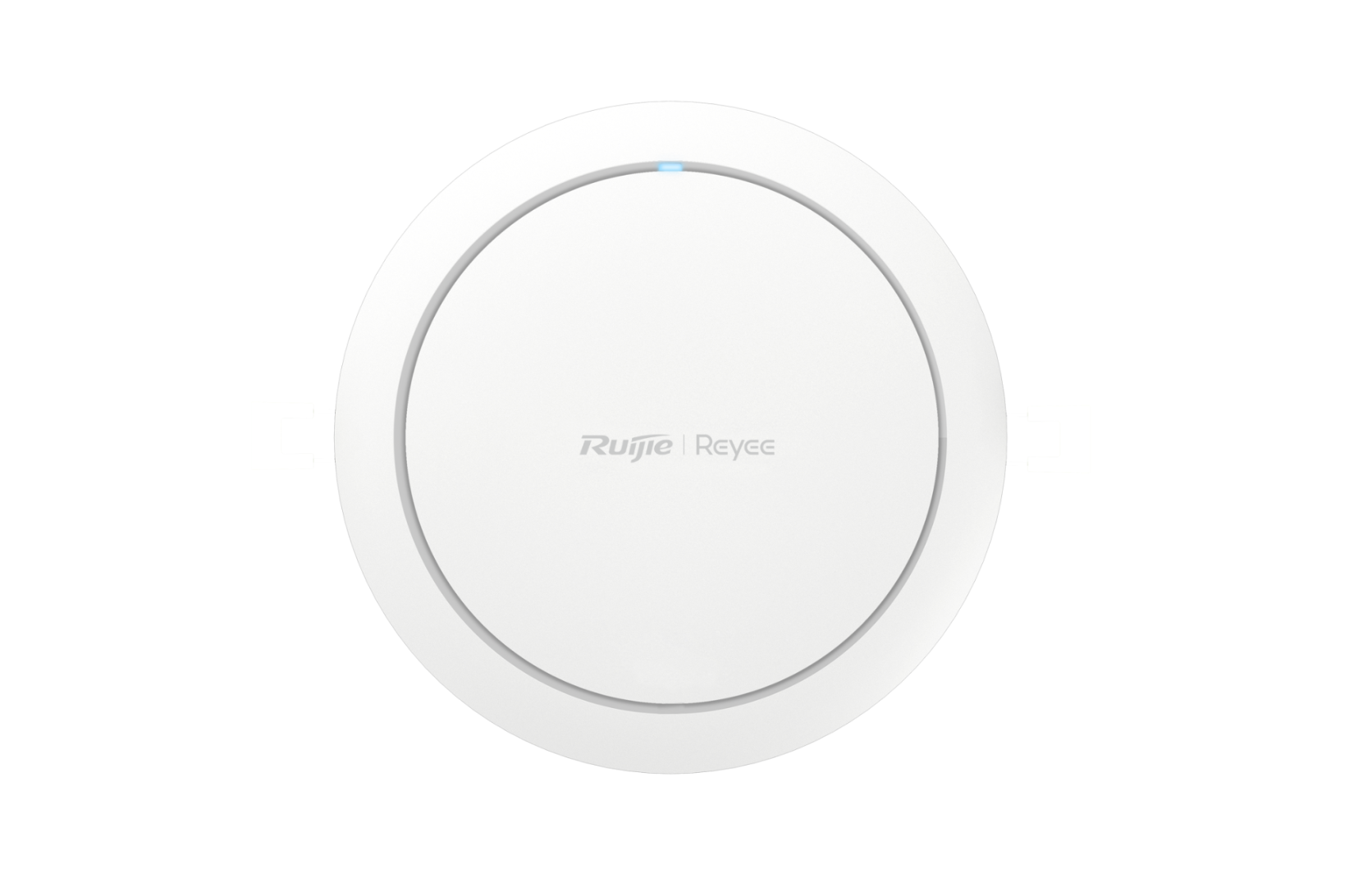

Ruijie RG-RAP2266, Reyee Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point

Highlight Features

• Gigabit ceiling-mounted wireless access point with dual-radio performance
• Supports Reyee Mesh and IEEE 802.11k/v for improved roaming
• Simple twist-and-lock installation
• Modern circular design suited to hotels and commercial interiors
• Powerful standalone captive portal managed through Ruijie Cloud
• Datasheet

Key Specifications

Product Information

• Product Type: Ceiling-mounted wireless access point
• Colour: White
• Mounting Options: Ceiling or wall
• Protection Rating: IP41

Wireless Radio

• Radio Design: Dual-radio
• Total Spatial Streams: 4
• 2.4 GHz Radio: 2 × 2 MU-MIMO
• 5 GHz Radio: 2 × 2 MU-MIMO
• Maximum Wireless Data Rate: 2974 Mbps
• 2.4 GHz Data Rate: Up to 573 Mbps
• 5 GHz Data Rate: Up to 2401 Mbps
• 6 GHz Support: No

Antenna

• 2.4 GHz Antennas: 2 × built-in omnidirectional antennas
• 5 GHz Antennas: 3 × built-in omnidirectional antennas

Dimensions and Weight

• Product Dimensions: Ø220 × 52.6 mm
• Imperial Dimensions: Ø8.66 × 2.07 in.
• Dimensions exclude the mounting bracket
• Weight: Up to 0.5 kg (1.10 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 1

Power Supply and Consumption

• Supported Power Options:
  • DC power adapter
  • PoE/PoE+
• When both DC and PoE power are available, the DC power adapter takes priority
• DC Input: 12 V, 2 A
• DC Connector Outer Diameter: 5.5 mm
• DC Connector Inner Diameter: 2.1 mm
• DC Connector Depth: 10 mm
• PoE Budget: Not applicable
• Maximum Power Consumption: 18 W

Environment and Installation

• Operating Temperature: 0°C to 40°C
• Mounting Options: Ceiling or wall
• IP Rating: IP41

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 512
• Maximum Clients with Both Radios Enabled: 512
• Maximum Managed Devices: 300

Network Features

• Reyee Mesh: Supported
• IEEE 802.11k/v: Supported
• Standalone Captive Portal: Supported through Ruijie Cloud
• IPv6: Supported
