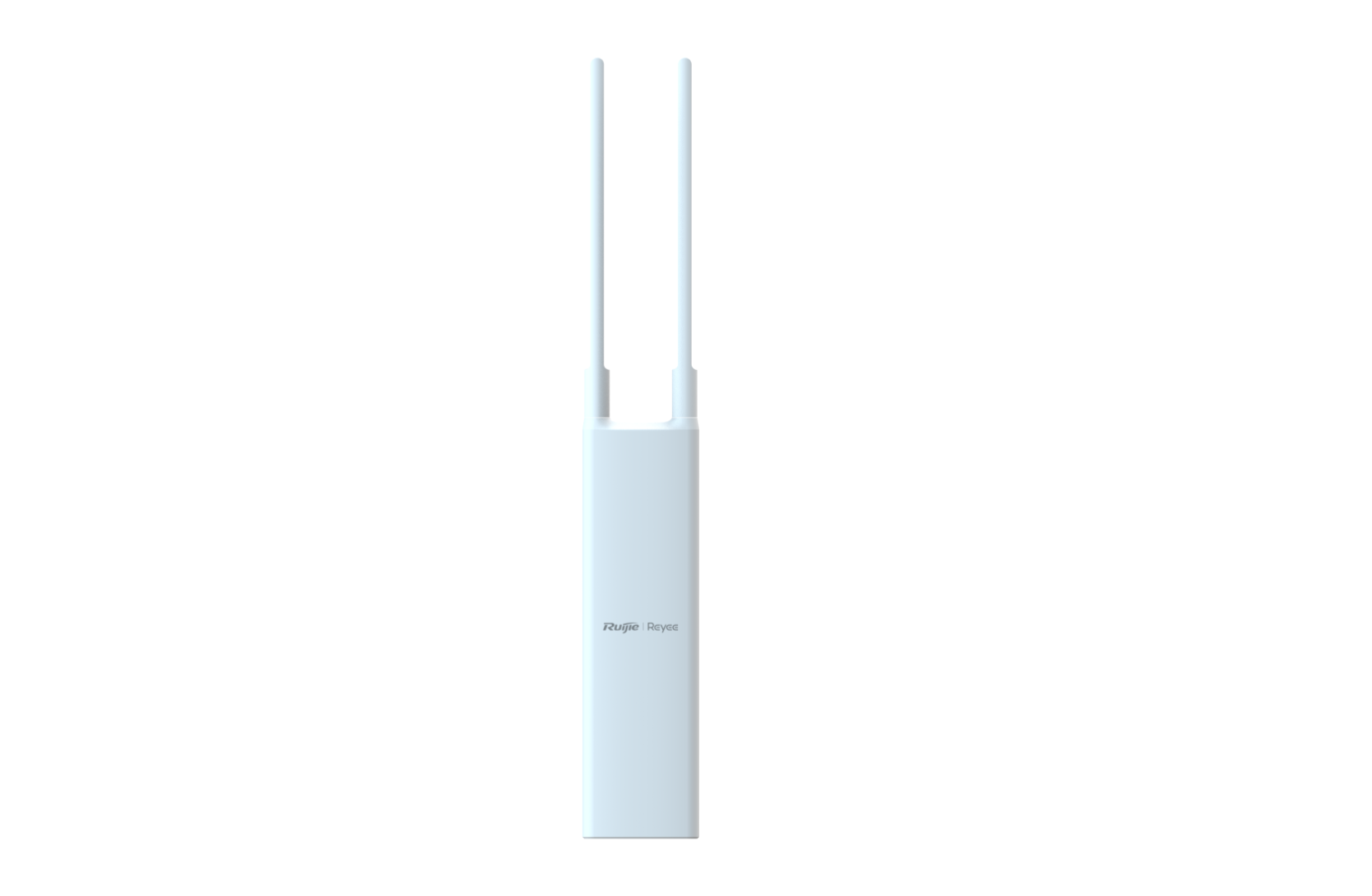

Ruijie RG-RAP52-OD, Reyee Wi-Fi 5 AC1300 Dual-Band Outdoor Access Point

Highlight Features

• AC1300 Wave 2 outdoor mesh access point designed for villas and retail businesses
• Supports wall or pole mounting for flexible installation
• IP65 weather-resistant construction for reliable outdoor protection and signal stability
• Detachable antennas allow customised wireless coverage
• Designed for retail environments with Reyee Mesh, standalone portal and AI roaming features
• Datasheet

Key Specifications

Product Information

• Product Type: Outdoor wireless access point
• Colour: White
• Mounting Options: Wall or pole
• Protection Rating: IP65

Wireless Radio

• Wireless Standard: AC1300 Wave 2
• Radio Design: Dual-radio
• Total Spatial Streams: 4
• 2.4 GHz Radio: 2 × 2 MIMO
• 5 GHz Radio: 2 × 2 MIMO
• Maximum Wireless Data Rate: 1266 Mbps
• 2.4 GHz Data Rate: Up to 400 Mbps
• 5 GHz Data Rate: Up to 866 Mbps
• 6 GHz Support: No

Antenna

• Antenna Type: 2 × external omnidirectional antennas
• Supported Bands: Integrated 2.4 GHz and 5 GHz
• Antenna Design: Detachable
• Antenna Length: 185 mm (7.28 in.)

Dimensions and Weight

• Product Dimensions: 50 × 35.7 × 220 mm
• Imperial Dimensions: 1.97 × 1.41 × 8.66 in.
• Dimensions exclude the mounting bracket and antennas
• Weight: Up to 0.4 kg (0.88 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 1

Power Supply and Consumption

• Power Supply: PoE/PoE+
• Local DC Power: Not supported
• DC Connector: Not applicable
• PoE Budget: Not applicable
• Maximum Power Consumption: 13.5 W

Environment and Installation

• Operating Temperature: –30°C to +65°C
• Mounting Options: Wall or pole
• IP Rating: IP65

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 110
• Maximum Clients with Both Radios Enabled: 110
• Maximum Managed Devices: 300

Network Features

• Reyee Mesh: Supported
• Standalone Captive Portal: Supported
• AI Roaming: Supported
• IPv6: Not supported
