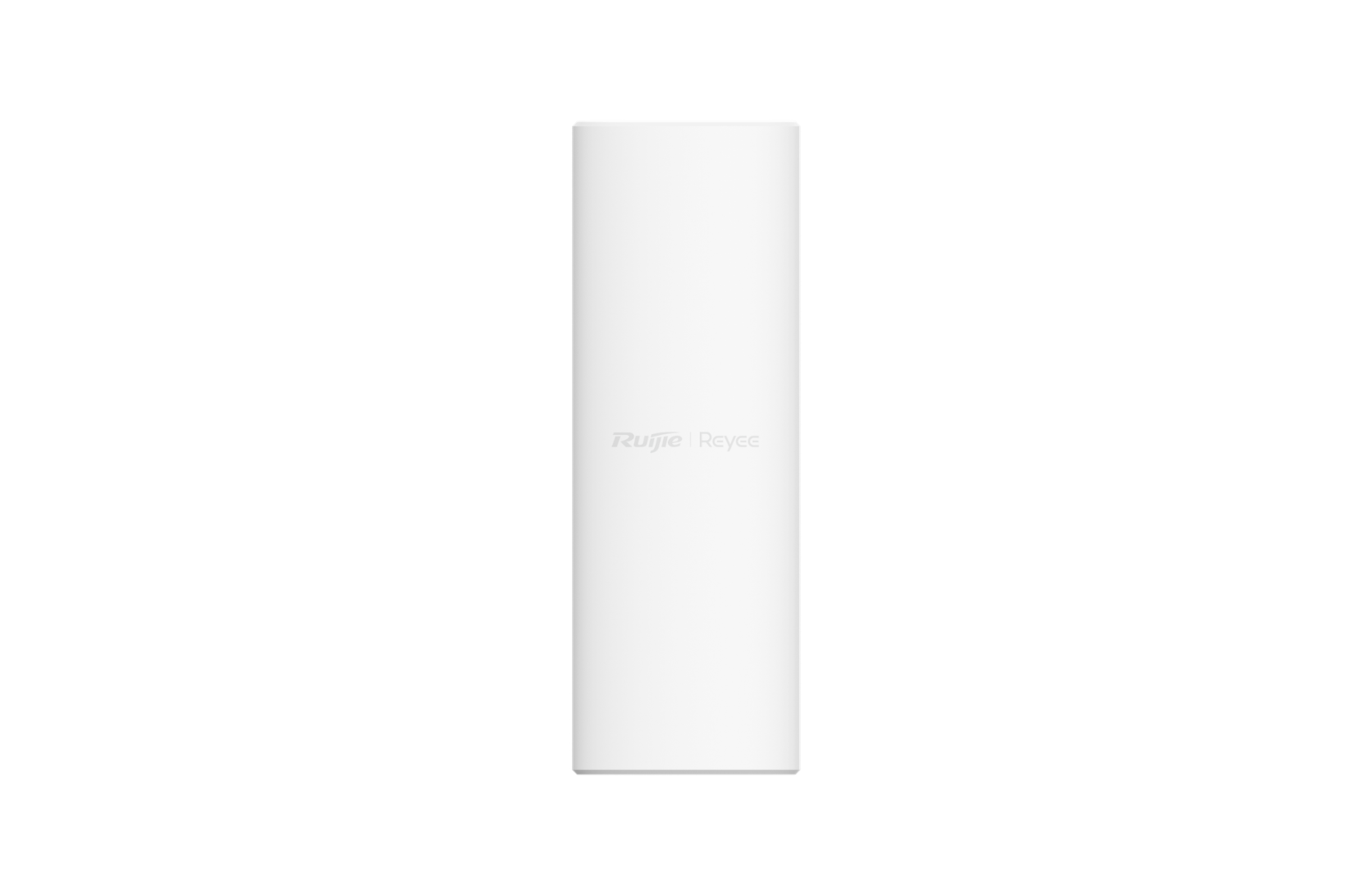

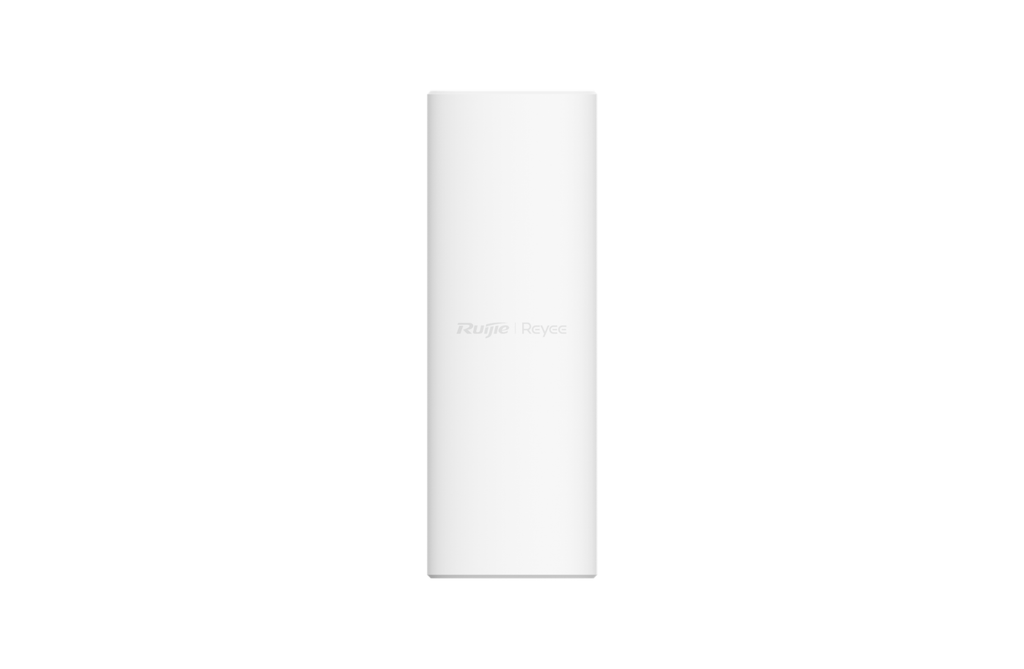

Ruijie RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point

Highlight Features

• AX3000 versatile indoor/outdoor mesh access point designed for villas and retail businesses
• Supports wall or pole mounting for flexible installation
• IP65 weather-resistant construction for consistent outdoor protection and signal stability
• Built-in antennas provide reliable wireless coverage without external antennas
• Designed for retail environments with Reyee Mesh, standalone portal and AI roaming features
• Datasheet

Key Specifications

Product Information

• Product Type: Outdoor wireless access point
• Colour: White
• Mounting Options: Wall or pole
• Protection Rating: IP65

Wireless Radio

• Wireless Standard: Wi-Fi 6 AX3000
• Radio Design: Dual-radio
• Total Spatial Streams: 4
• 2.4 GHz Radio: 2 × 2 MU-MIMO
• 5 GHz Radio: 2 × 2 MU-MIMO
• Maximum Wireless Data Rate: 2974 Mbps
• 2.4 GHz Data Rate: Up to 573 Mbps
• 5 GHz Data Rate: Up to 2401 Mbps
• 6 GHz Support: No

Antenna

• 5 GHz Antenna: 1 × built-in omnidirectional antenna
• Dual-Band Antennas: 2 × built-in omnidirectional antennas supporting 2.4 GHz and 5 GHz
• Antenna Design: Internal

Dimensions and Weight

• Product Dimensions: 70 × 35 × 200 mm
• Imperial Dimensions: 2.76 × 1.38 × 7.87 in.
• Dimensions exclude the mounting bracket
• Weight: Up to 0.4 kg (0.88 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 1

Power Supply and Consumption

• Power Supply: PoE/PoE+
• Local DC Power: Not supported
• DC Connector: Not applicable
• PoE Budget: Not applicable
• Maximum Power Consumption: 16 W

Environment and Installation

• Operating Temperature: –30°C to +65°C
• Mounting Options: Wall or pole
• IP Rating: IP65

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 512
• Maximum Clients with Both Radios Enabled: 512
• Maximum Managed Devices: 300

Network Features

• Reyee Mesh: Supported
• Standalone Captive Portal: Supported
• AI Roaming: Supported
• IPv6: Supported
