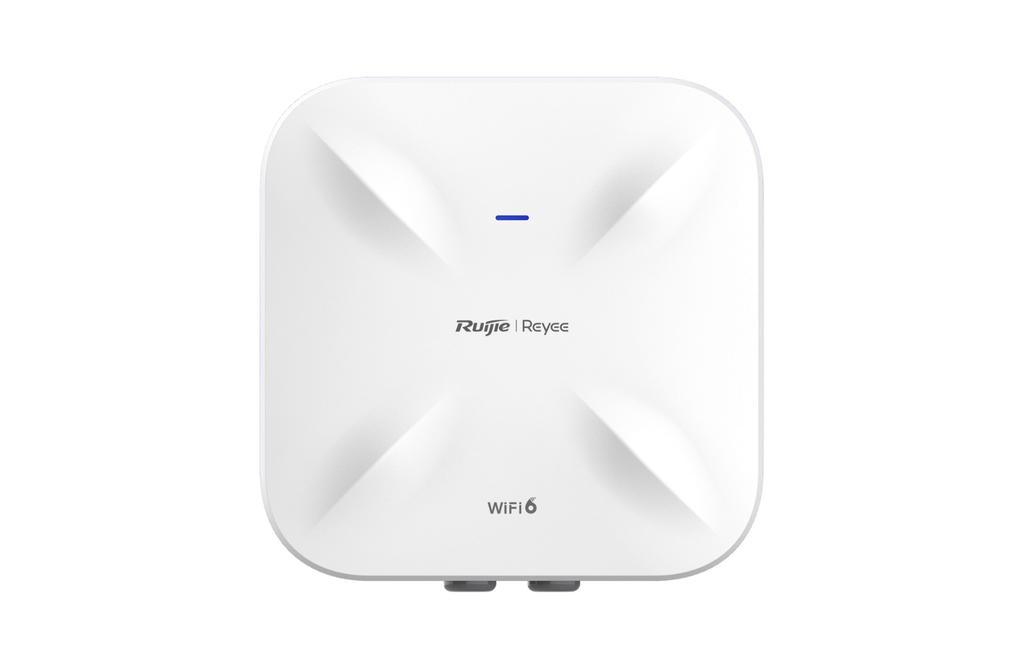

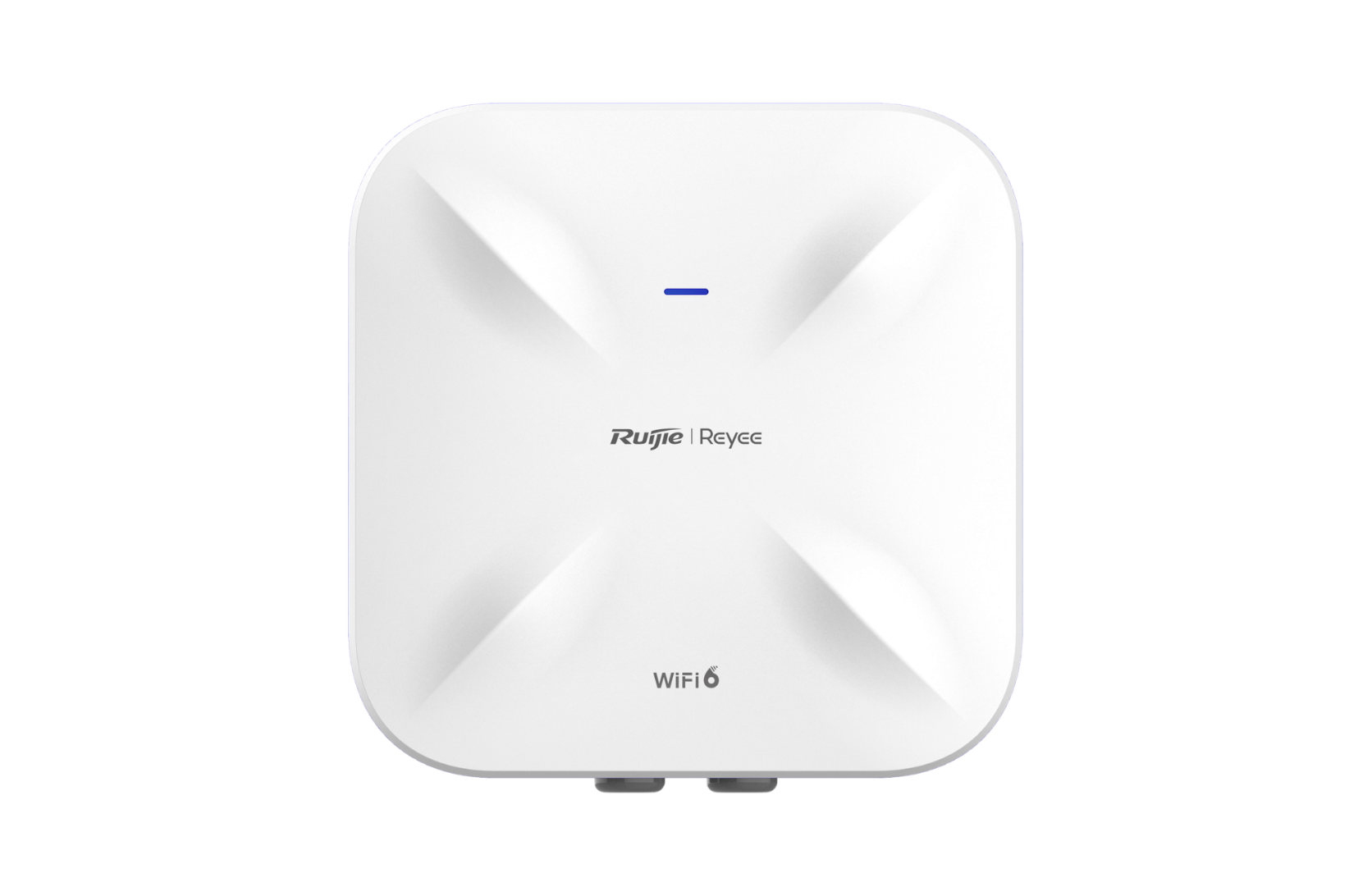

Ruijie RG-RAP6260(G) Wi-Fi 6 AX1800 Outdoor Omnidirectional Access Point

Highlight Features

• Wi-Fi 6 AX1800 dual-band Gigabit outdoor wireless access point
• Supports long-distance network deployment through a Gigabit SFP fibre port
• IP68-rated protection for reliable operation in harsh outdoor environments
• Easy outdoor Wi-Fi expansion using Reyee Mesh
• Separate mounting-bracket design for easier installation at elevated locations
• Datasheet

Key Specifications

Product Information

• Product Type: Outdoor wireless access point
• Colour: White
• Mounting Options: Wall or pole
• Protection Rating: IP68

Wireless Radio

• Wireless Standard: Wi-Fi 6 AX1800
• Radio Design: Dual-radio
• Total Spatial Streams: 4
• 2.4 GHz Radio: 2 × 2 MU-MIMO
• 5 GHz Radio: 2 × 2 MU-MIMO
• Maximum Wireless Data Rate: 1774 Mbps
• 2.4 GHz Data Rate: Up to 573 Mbps
• 5 GHz Data Rate: Up to 1201 Mbps
• 6 GHz Support: No

Antenna

• 2.4 GHz Antennas: 2 × built-in omnidirectional antennas
• 5 GHz Antennas: 2 × built-in omnidirectional antennas
• Coverage Type: Omnidirectional

Dimensions and Weight

• Product Dimensions: 298 × 298 × 65 mm
• Imperial Dimensions: 11.73 × 11.73 × 2.56 in.
• Dimensions exclude the mounting bracket
• Weight: Up to 1.35 kg (2.98 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 1
• 1GE SFP Ports: 1

Power Supply and Consumption

• Power Supply: PoE+
• Local DC Power: Not supported
• DC Connector: Not applicable
• PoE Budget: Not applicable
• Maximum Power Consumption: 18 W

Environment and Installation

• Operating Temperature: –40°C to +65°C
• Mounting Options: Wall or pole
• IP Rating: IP68

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 256
• Maximum Clients with Both Radios Enabled: 256
• Maximum Managed Devices: 300

Network Features

• Reyee Mesh: Supported
• IPv6: Supported
