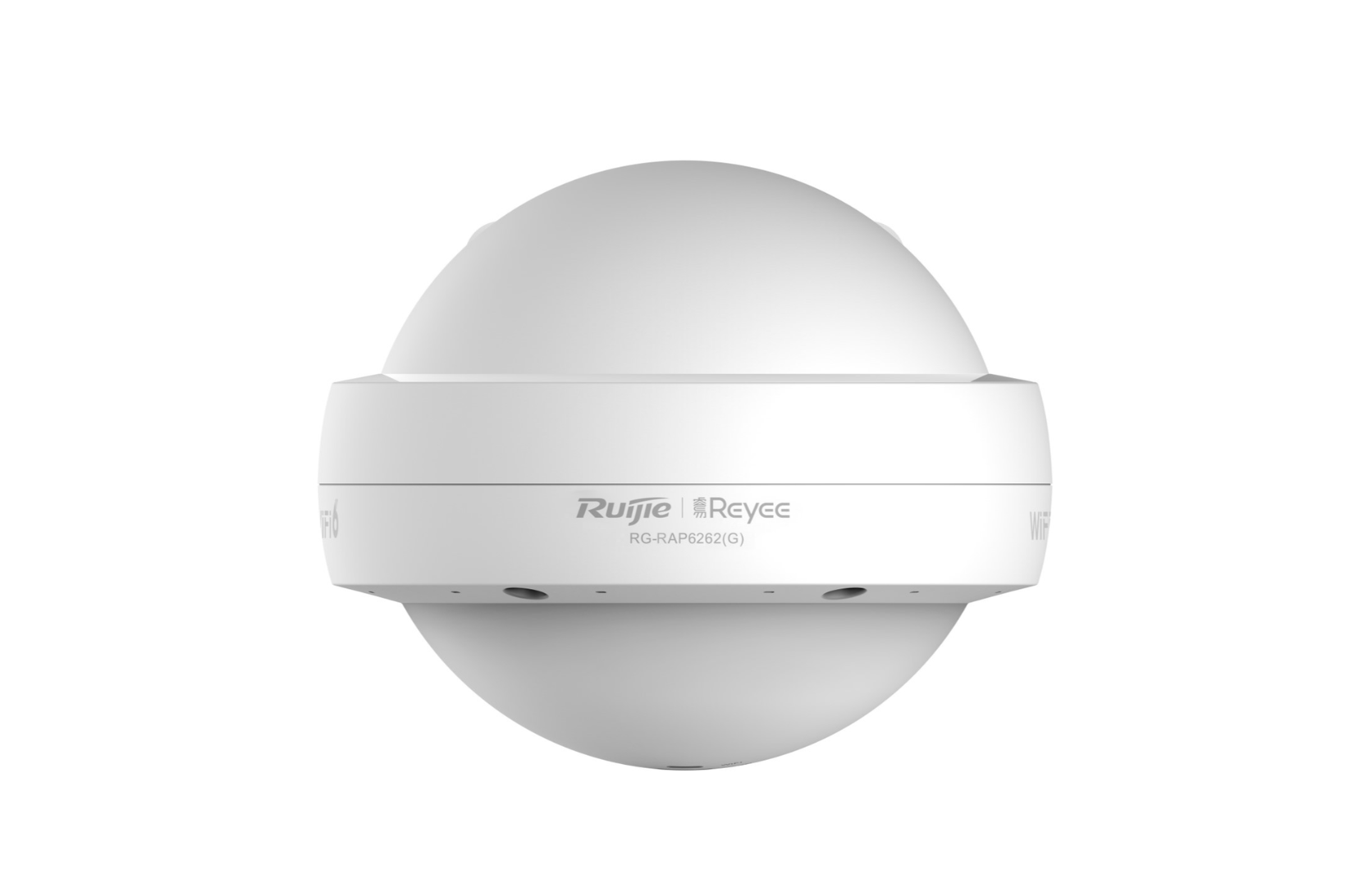

Ruijie RG-RAP6262(G) Wi-Fi 6 AX1800 Outdoor Omni-directional Access Point

Highlight Features

• Distinctive UFO-inspired design combining Wi-Fi 6 technology with modern aesthetics
• IP68-rated protection for reliable operation in harsh outdoor environments
• Long-range omnidirectional wireless coverage
• Easily expand outdoor Wi-Fi coverage using Reyee Mesh
• Separate mounting-bracket design for easier installation at elevated locations
• Datasheet

Key Specifications

Product Information

• Product Type: Outdoor wireless access point
• Colour: White
• Mounting Options: Wall or pole
• Protection Rating: IP68

Wireless Radio

• Wireless Standard: Wi-Fi 6
• Radio Design: Dual-radio
• Total Spatial Streams: 4
• 2.4 GHz Radio: 2 × 2 MU-MIMO
• 5 GHz Radio: 2 × 2 MU-MIMO
• Maximum Wireless Data Rate: 1774 Mbps
• 2.4 GHz Data Rate: Up to 573 Mbps
• 5 GHz Data Rate: Up to 1201 Mbps
• 6 GHz Support: No

Antenna

• 2.4 GHz Antennas: 2 × built-in omnidirectional antennas
• 5 GHz Antennas: 2 × built-in omnidirectional antennas
• Coverage Type: Omnidirectional

Dimensions and Weight

• Product Dimensions: Ø200 × 166 mm
• Imperial Dimensions: Ø7.87 × 6.54 in.
• Spherical device dimensions exclude the mounting bracket
• Weight: Up to 1.2 kg (2.65 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 2

Power Supply and Consumption

• Supported Power Options:
  • DC power adapter
  • PoE+
• When both DC and PoE+ power are available, the DC power adapter takes priority
• DC Input: 12 V, 2 A
• DC Connector Outer Diameter: 5.5 mm
• DC Connector Inner Diameter: 2.1 mm
• DC Connector Depth: 10 mm
• PoE Budget: Not applicable
• Maximum Power Consumption: 18 W

Environment and Installation

• Operating Temperature: –30°C to +65°C
• Mounting Options: Wall or pole
• IP Rating: IP68

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 256
• Maximum Clients with Both Radios Enabled: 256
• Maximum Managed Devices: 300

Network Features

• Reyee Mesh: Supported
• IPv6: Supported
