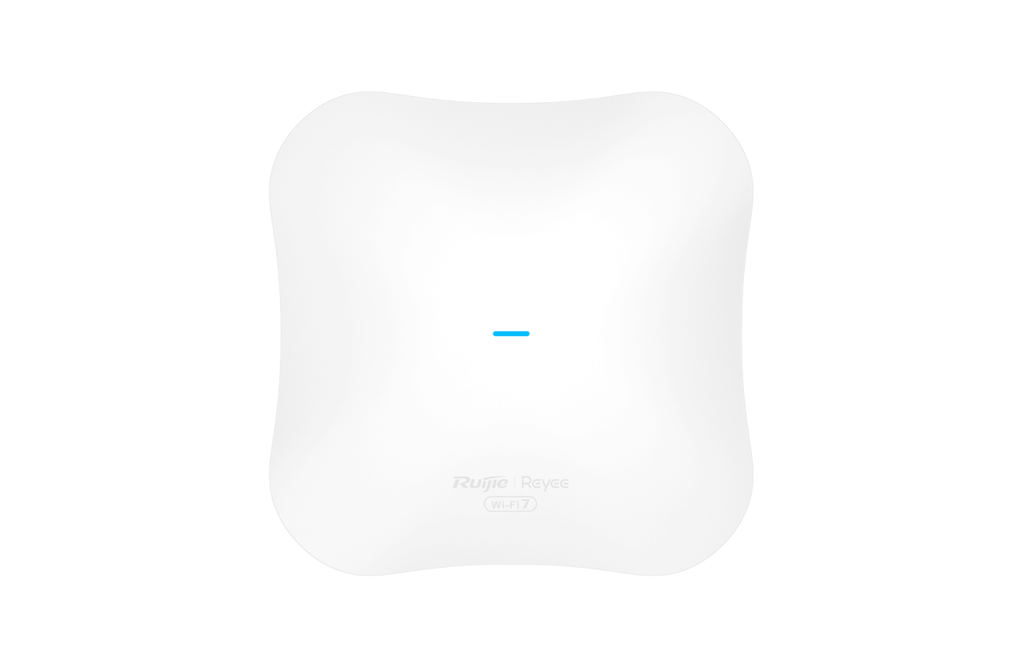

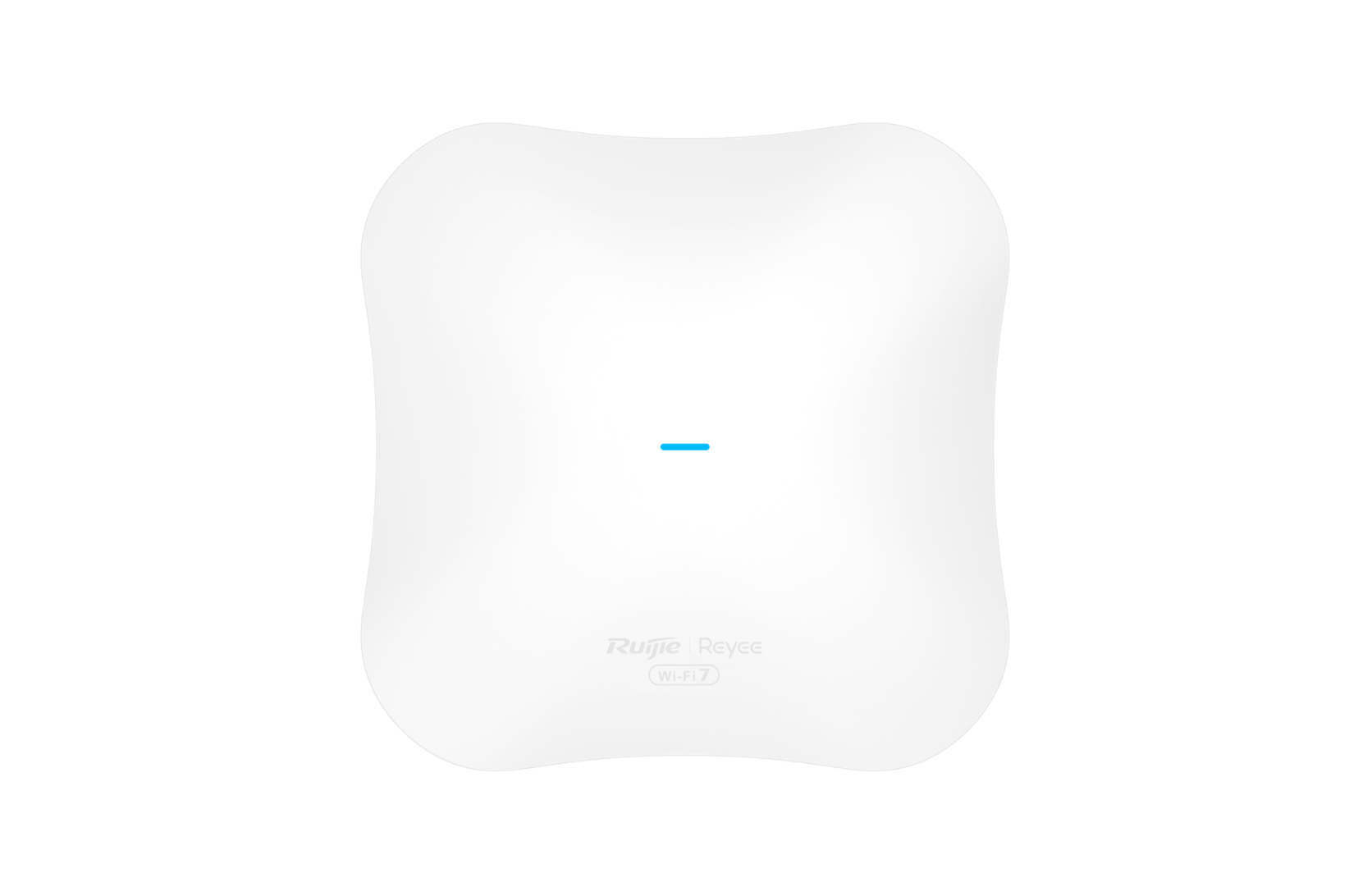

Ruijie RG-RAP72Pro, Reyee Wi-Fi 7 BE5000 Dual-Band Ceiling Access Point

Highlight Features

• Next-generation Wi-Fi 7 performance with ultra-high wireless speeds
• Supports Multi-Link Operation for smoother, more reliable streaming
• Compact design for easy installation
• Enhanced data transmission with 4K-QAM for faster wireless performance
• Ideal for integration with enterprise switches to create a robust office network
• Datasheet

Key Specifications

Product Information

• Product Type: Ceiling-mounted wireless access point
• Colour: White
• Mounting Options: Ceiling or wall
• Protection Rating: IP41

Wireless Radio

• Wireless Standard: Wi-Fi 7
• Radio Design: Dual-radio
• Total Spatial Streams: 5
• 2.4 GHz Radio: 2 × 2 MU-MIMO
• 5 GHz Radio: 3 × 3 MU-MIMO
• Maximum Wireless Data Rate: 5011 Mbps
• 2.4 GHz Data Rate: Up to 688 Mbps
• 5 GHz Data Rate: Up to 4323 Mbps
• 6 GHz Support: No

Antenna

• 2.4 GHz Antennas: 2 × built-in omnidirectional antennas
• 5 GHz Antennas: 3 × built-in omnidirectional antennas

Dimensions and Weight

• Product Dimensions: 208 × 208 × 40 mm
• Imperial Dimensions: 8.19 × 8.19 × 1.57 in.
• Dimensions exclude the mounting bracket
• Weight: Up to 0.75 kg (1.65 lb), excluding packaging

Network Ports

• 10/100/1000BASE-T Ports: 1
• 10/100/1000/2500BASE-T Ports: 1

Power Supply and Consumption

• Supported Power Options:
  • DC power adapter
  • PoE/PoE+
• When both DC and PoE power are available, the DC power adapter takes priority
• DC Input: 12 V, 2.5 A
• DC Connector Outer Diameter: 5.5 mm
• DC Connector Inner Diameter: 2.1 mm
• DC Connector Length: 10 mm
• PoE Budget: Not applicable
• Maximum Power Consumption: 30 W

Environment and Installation

• Operating Temperature: 0°C to 40°C
• Mounting Options: Ceiling or wall
• IP Rating: IP41

Wireless Capacity

• Maximum 2.4 GHz Clients: 64
• Maximum 5 GHz Clients: 511
• Maximum Clients with Both Radios Enabled: 511
• Maximum Managed Devices: 300

Network Features

• Multi-Link Operation: Supported
• 4K-QAM: Supported
• IPv6: Supported
