Highlight Features
-
Supports data rates up to 10.3125 Gbps
-
Transmission distance of up to 10 km
-
1310 nm operating wavelength
-
Duplex LC connector
-
Designed for single-mode fibre
-
Maximum power consumption of 1.5 W
-
Hot-pluggable SFP+ form factor
-
Supports Digital Diagnostic Monitoring (DDM/DOM)
-
Compliant with IEEE 802.3ae 10G Ethernet
-
SFP+ MSA and SFF-8431 compliant
-
Class 1 laser safety and RoHS compliant
- Datasheet
Product Overview

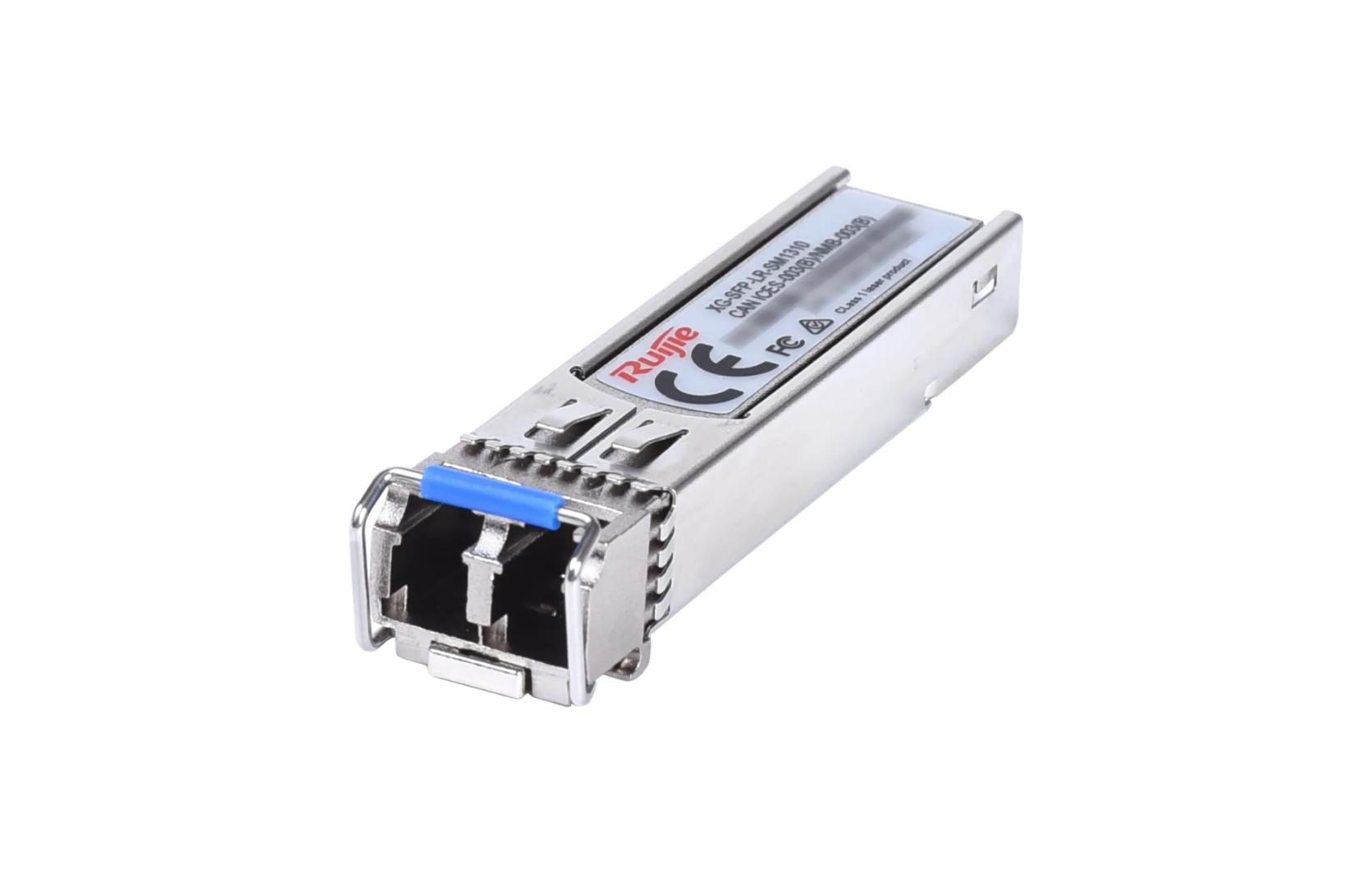

The Ruijie XG-SFP-LR-SM1310 is a high-performance and low-power 10G optical transceiver designed for data centre and campus network applications.
It provides reliable, cost-effective and high-speed connections between switches, routers, servers and network interface controllers.
The module complies with IEEE 10GBASE-LR optical specifications and supports transmission distances of up to 10 km over single-mode fibre. It uses a Duplex LC connector, adopts the SFP+ form factor and operates at a wavelength of 1310 nm.
The XG-SFP-LR-SM1310 complies with IEEE 802.3ae, SFF-8431, SFP+ MSA and RoHS standards.
Optical Module Specifications
General
-
Model: XG-SFP-LR-SM1310
-
Data Rate: 10.3125 Gbps
-
Form Factor: SFP+
-
Connector Type: Duplex LC
-
Cable Type: Single-mode fibre (SMF)
-
Fibre End-Face Finish: Ultra Physical Contact (UPC)
-
Transmitter Type: DFB
-
Receiver Type: PIN
-
Maximum Transmission Distance: 10 km (32,808.40 ft.)
-
Bit Error Ratio: 1.00E-12
-
Digital Diagnostic Monitoring: Yes, DDM/DOM supported
-
Maximum Power Consumption: 1.5 W
Transmitter Optical Parameters
-
Operating Wavelength: 1310 nm
-
Maximum Average Transmit Power: 0.5 dBm
-
Minimum Average Transmit Power: –8.2 dBm
-
Minimum Extinction Ratio: 3.5 dB or higher
Receiver Optical Parameters
Environmental Specifications
-
Operating Temperature: 0°C to 70°C (32°F to 158°F)
-
Operating Humidity: 10% to 90% RH
-
Storage Temperature: –40°C to +85°C (–40°F to +185°F)
-
Storage Humidity: 10% to 90% RH
Dimensions and Weight
