Highlight Features
-
Maximum power consumption of 1.5 W
-
Hot-swappable SFP+ design for easy installation and replacement
-
Supports Digital Diagnostic Monitoring for enhanced diagnostics
-
Compliant with IEEE 802.3ae 10 Gigabit Ethernet
-
Class 1 laser safety compliant
-
RoHS compliant
-
Supports transmission distances of up to 300 m over OM3 fibre or 400 m over OM4 fibre
- Datasheet
Product Overview

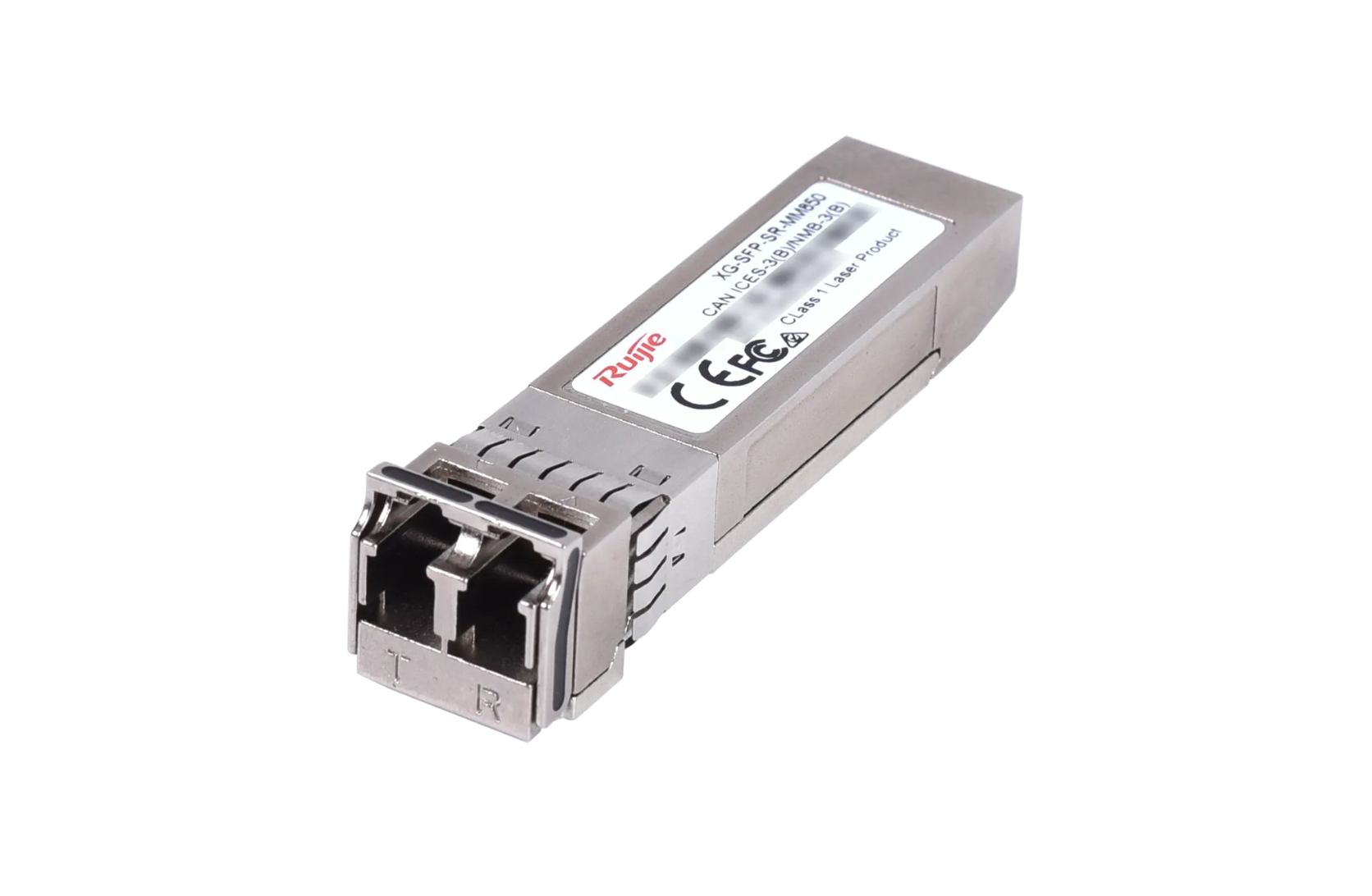

The Ruijie XG-SFP-SR-MM850 is a 10 Gigabit optical transceiver designed for high-speed interconnection across data centre, campus and enterprise networks.
It complies with IEEE 10GBASE-SR optical specifications and supports transmission distances of up to 300 metres using OM3 multimode fibre or up to 400 metres using OM4 multimode fibre.
The module uses a duplex LC connector, operates at a wavelength of 850 nm and adopts the compact SFP+ form factor. It is suitable for connecting compatible switches, routers, servers and network interface controllers.
Key Specifications
Optical Interface
-
Data Rate: 10.3125 Gbps
-
Ethernet Standard: 10GBASE-SR
-
Form Factor: SFP+
-
Connector Type: Duplex LC
-
Cable Type: Multimode fibre
-
Fibre End-Face Type: Ultra Physical Contact
-
Maximum Transmission Distance with OM3: 300 m (984.25 ft.)
-
Maximum Transmission Distance with OM4: 400 m (1,312.34 ft.)
-
Operating Wavelength: 850 nm
Optical Components
-
Transmitter Type: VCSEL
-
Receiver Type: PIN photodiode
-
Maximum Transmit Power: –1 dBm
-
Minimum Transmit Power: –7.3 dBm
-
Minimum Extinction Ratio: ≥3.0 dB
-
Receiver Sensitivity: Less than –11.1 dBm
-
Receiver Overload Power: –1 dBm
-
Bit Error Ratio: 1.00 × 10⁻¹²
Monitoring and Diagnostics
Power Consumption
Standards and Compliance
-
IEEE 802.3ae
-
SFF-8431
-
SFP+ MSA
-
RoHS
-
Class 1 laser safety
Environment and Reliability
-
Operating Temperature: 0°C to 70°C
-
Operating Humidity: 10% to 90% RH
-
Storage Temperature: –40°C to +85°C
-
Storage Humidity: 10% to 90% RH
Dimensions and Weight
