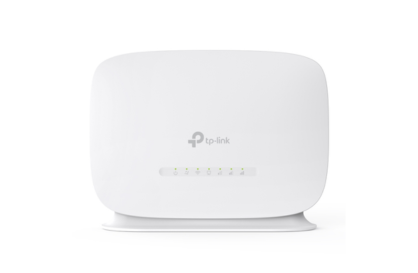

300 Mbps Wireless N 4G LTE Router
-
Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
-
Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
-
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
|
HARDWARE FEATURES
|
| Interface |
1 10/100Mbps LAN Port
1 10/100Mbps LAN/WAN Port
1 Nano SIM Card Slot |
| Button |
Reset/WPS Button |
| External Power Supply(EU) |
9V/0.85A |
| Dimensions ( W x D x H ) |
6.85×5.12×2.36 in (174×130×60 mm) |
| Antenna |
2× Internal 4G/3G Antennas
2× Internal Wi-Fi Antennas
2× External 4G/3G Antenna Ports |
|
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11b/g/n |
| Frequency |
2.4 GHz |
| Signal Rate |
300 Mbps |
| Reception Sensitivity |
11g 54M: -74dBm
11n HT20: -73dBm
11n HT40: -70dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover |
Yes |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Transmission Power |
< 20 dBm (2.4 GHz) |
| Network Type |
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
|
SOFTWARE FEATURES
|
| Security |
IPv4 SPI Firewall, IP and MAC Address Binding |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features |
Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDns, NO-IP |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network |
| Administration |
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
|
OTHERS
|
| Certification |
CE, RoHS |
| Package Content |
300 Mbps Wireless N 4G LTE TL-MR105
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Nano SIM Card |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
