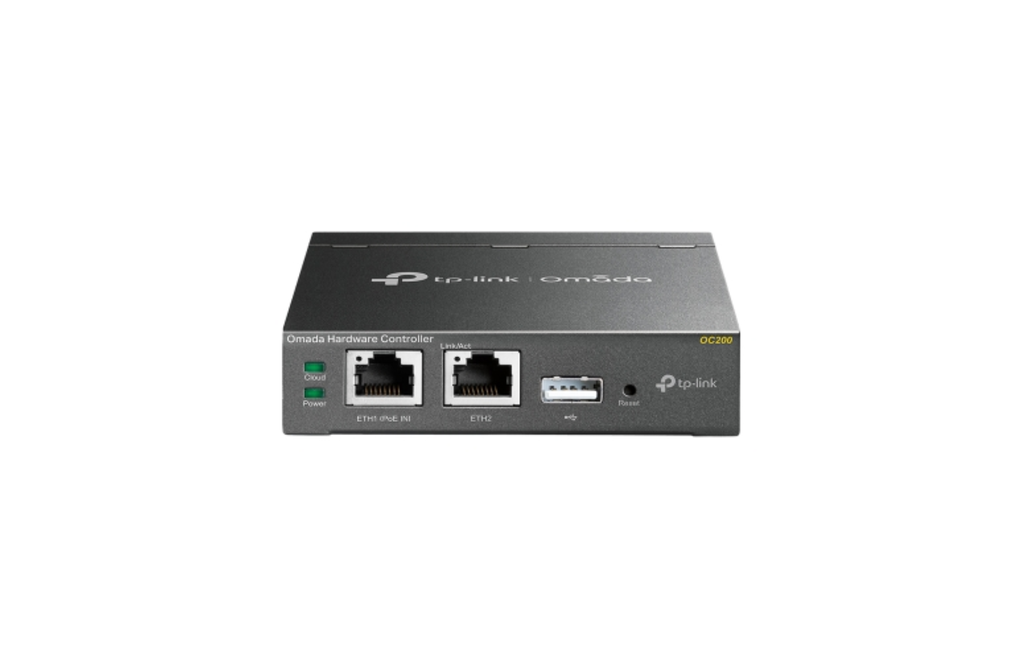

TP-Link OC200 Omada Hardware Controller

Omada Hardware Controller

Key Features

• Centralised Management: Supports up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.

• Free Cloud Access: Manage and monitor via the Omada App or Web UI from anywhere.

• On-Premises Management: Secure and stable local management for sensitive environments.

• Industry-Leading Hardware Design: Equipped with a powerful chipset, durable metal housing, USB 2.0 port for auto backup, and two Fast Ethernet ports.

• Flexible Power Options: Supports 802.3af/at PoE or Micro USB (DC 5V / 1A min.) for easy installation.

• Intelligent Network Monitoring: Simple dashboard for real-time network status, device health, and traffic distribution.

• Real-Time Network Topology: Visualise links and troubleshoot instantly.

• Effortless Maintenance: Includes WiFi heatmap simulator, visual network reports, multi-site management, and batch operations.

---

Hardware Features

Interface

• 2 × 10/100 Mbps Ethernet Ports

• 1 × USB 2.0 Port

• 1 × Micro USB Port

Power Supply

• 802.3af/at PoE

• Micro USB (DC 5V / Minimum 1A)

Dimensions

• 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)

---

Management Features

• Omada App Support: Yes

• Centralised Management Capacity:

  • Up to 100 Omada APs

  • Up to 20 JetStream switches

  • Up to 10 Omada routers

  • Up to 1,000 clients

• Cloud Access: Yes

• Layer 3 Management: Yes

• Multi-Site Management: Yes

Advanced Tools & Functions

• Automatic Device Discovery

• Batch Configuration & Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Alerts

• Unified Configuration

• Reboot Scheduling

• Captive Portal Management

Note: For full compatibility list, visit the official TP-Link Omada device page.

---

Other Information

Certification: CE, FCC, RoHS

Package Contents:

• Omada Hardware Controller OC200

• Quick Installation Guide

• Ethernet Cable

System Requirements:

• Windows® 10/8/7/Vista/XP, macOS®, NetWare®, UNIX®, or Linux

Environmental Conditions:

• Operating Temp: 0–40°C (32–104°F)

• Storage Temp: –40–70°C (–40–158°F)

• Operating Humidity: 10–90% RH (non-condensing)

• Storage Humidity: 5–90% RH (non-condensing)
