TP-Link Omada EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Key Features

• Outdoor-Ready Design: IP65 weatherproof enclosure for harsh outdoor environments

• Fast Dual-Band Wi-Fi:

  • 300 Mbps @ 2.4 GHz

  • 867 Mbps @ 5 GHz

  • Total Wi-Fi Speed: 1167 Mbps

• Long-Range Coverage: High-power amplifier and professional antennas with 802.11ac Wave 2 MU-MIMO

• Omada SDN Integration: Zero-Touch Provisioning (ZTP), centralized cloud management, intelligent monitoring

• Centralised Management: Omada Cloud & Omada App support

• Omada Mesh: Wireless AP-to-AP connectivity for flexible deployments*

• Seamless Roaming: Smooth video and voice handover between APs*

• Flexible Power Options: 802.3af/at PoE or 24V Passive PoE (adapter included)

---

Hardware Specifications

Interface

• 1 × Gigabit Ethernet (RJ-45)

• Supports 802.3af/at PoE (Alternative A) and 24V Passive PoE

Buttons

• Reset

Power Supply

• 802.3af/at PoE (Alternative A)

• 24V Passive PoE (+4,5pins; −7,8pins)

• Passive PoE adapter included

Max Power Consumption

• 10.5 W

Dimensions (W × D × H)

• 215.7 × 45 × 37.7 mm (without antenna & mounting kit)

• 403.8 × 90.7 × 55.2 mm (with antenna & mounting kit)

Antenna

• 2.4 GHz: 2 × 3 dBi

• 5 GHz: 2 × 4 dBi

Weatherproof Rating

• IP65

Mounting

• Pole or wall mounting (kits included)

---

Wireless Specifications

Wireless Standards

• IEEE 802.11a/b/g/n/ac

Frequency Bands

• 2.4 GHz, 5 GHz

Maximum Data Rates

• 802.11ac:

  • 5 GHz: 6.5 Mbps – 867 Mbps (MCS0–MCS9, VHT20/40/80, NSS 1–2)

  • 2.4 GHz: 78 Mbps – 300 Mbps (MCS8–MCS9, VHT20/40, NSS 1–3)

• 802.11n: 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT20/40)

• 802.11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps

• 802.11b: 1 / 5.5 / 11 Mbps

• 802.11a: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps

Wireless Features

• Up to 16 SSIDs (8 per band)

• Enable / Disable wireless radio

• Automatic channel assignment

• Transmit power control (dBm)

• QoS (WMM)

• MU-MIMO

• Seamless roaming*

• Omada Mesh*

• Airtime Fairness

• Beamforming

• Band Steering

• Load Balancing

• Rate Limiting

• Reboot Schedule

• Wireless Schedule

• SSID/AP/Client statistics

Wireless Security

• Captive Portal Authentication*

• Access Control

• MAC Address Filtering

• Client Isolation

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

Transmission Power

• CE:

  • <20 dBm (2.4 GHz, EIRP)

  • <27 dBm (5 GHz, EIRP)

• FCC:

  • <23 dBm (2.4 GHz)

  • <22 dBm (5 GHz)

---

Management Features

• Omada App support

• Omada Cloud-Based Controller

• Omada Hardware Controllers: OC200, OC300

• Omada Software Controller

• Cloud access (controller required)

• Zero-Touch Provisioning (Omada Cloud-Based Controller required)

• Email Alerts

• Management MAC Access Control

• SNMP v1 / v2c

• Local & Remote Syslog

• SSH

• Web-based Management

• L3 Management

• Multi-Site Management

• Management VLAN

---

Certifications

• CE

• FCC

• RoHS

---

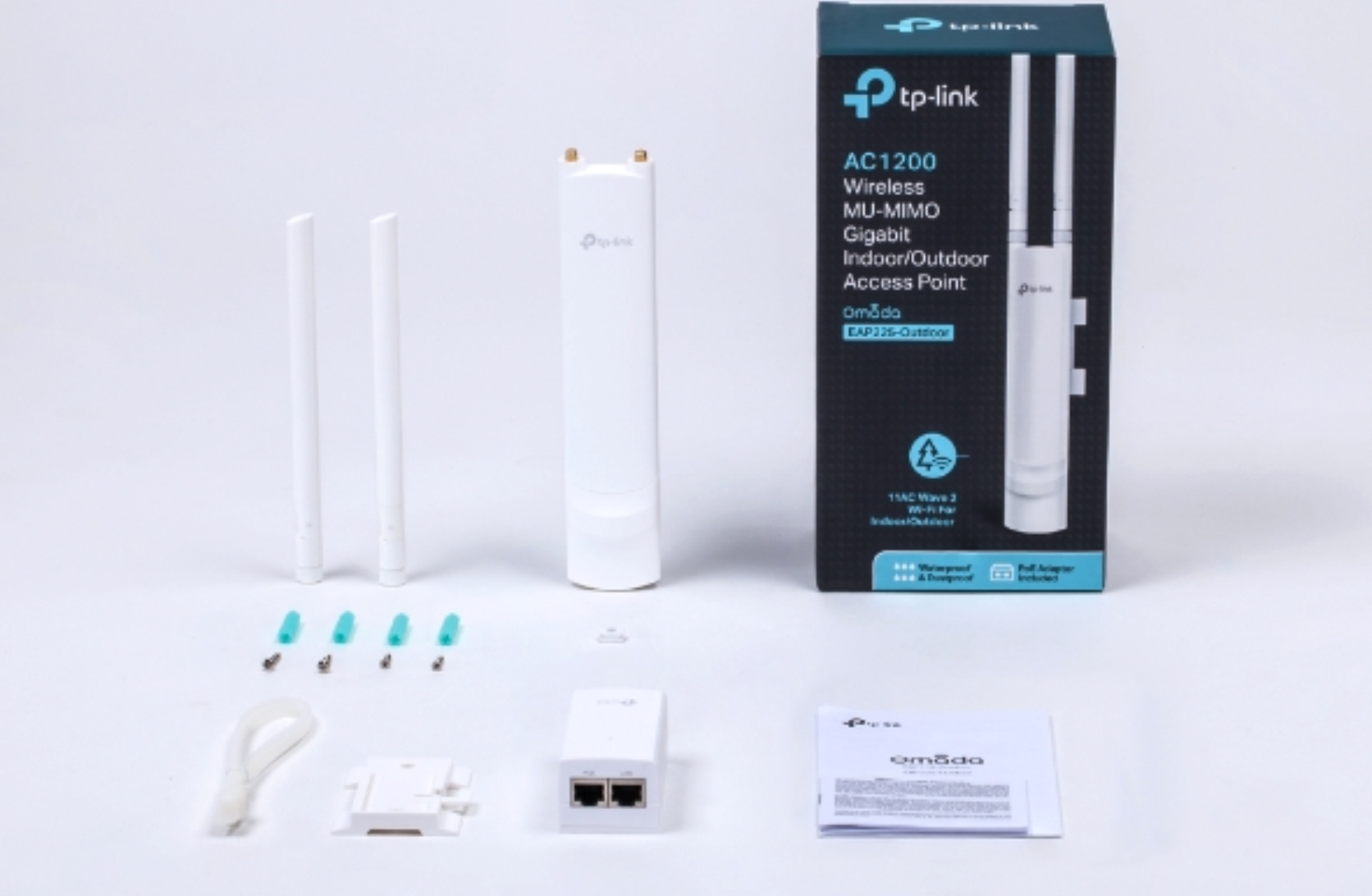

Package Contents

• EAP225-Outdoor Access Point

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Installation Guide

• Waterproof Rubber Insert

• Waterproof Antennas

---

System Requirements

• Windows XP / Vista / 7 / 8 / 10 / 11

• Linux

---

Environmental Specifications

• Operating Temperature: −30°C to 70°C (−22°F to 158°F)

• Storage Temperature: −40°C to 70°C (−40°F to 158°F)

• Operating Humidity: 10%–90% RH (non-condensing)

• Storage Humidity: 5%–90% RH
