Description

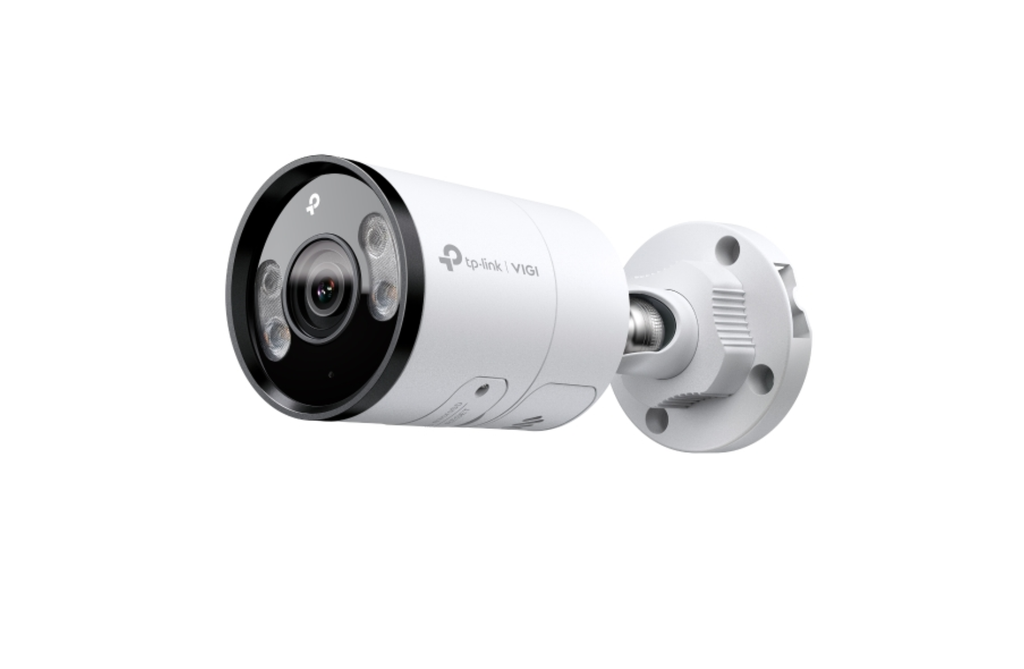

VIGI C355 – 5MP Outdoor Full-Color Bullet Network Camera
Key Features
-
5MP Super-High Definition
-
24/7 Full-Colour Imaging
-
People & Vehicle Analytics
-
Human & Vehicle Classification
-
Smart Detection
-
Smart Video Enhancement Technology
-
Active Defense with Two-Way Audio
-
IP67 Weatherproof
-
H.265+ Compression Technology
Camera
-
Image Sensor: 1/2.7” Progressive Scan CMOS
-
Shutter Speed: 1/3 – 1/10000 s
-
Slow Shutter: Supported
-
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
-
Day/Night Mechanism: IR Cut Filter
-
Day/Night Switch: Unified / Scheduled / Auto
Lens
-
Type: Fixed Focal
-
Focal Length: 2.8 mm / 4 mm / 6 mm
-
Aperture: F1.6
-
Lens Mount: M12 × P0.5
Field of View
2.8 mm:
-
Horizontal 111.4°, Vertical 58.8°, Diagonal 134°
4 mm:
-
Horizontal 88°, Vertical 46°, Diagonal 105.4°
6 mm:
-
Horizontal 57.3°, Vertical 31.3°, Diagonal 67.2°
DORI Distance
2.8 mm: Detect 64 m, Observe 27 m, Recognize 13 m, Identify 6 m
4 mm: Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 m
6 mm: Detect 120 m, Observe 50 m, Recognize 24 m, Identify 12 m
Angle Adjustment
-
Pan 0°–360°
-
Tilt 0°–90°
-
Rotation 0°–360°
Illuminator
IR LEDs:
-
Quantity: 2
-
Range: 30 m
-
Wavelength: 850 nm
White LEDs:
-
Quantity: 2
-
Range: 30 m
Control: Auto / Scheduled / Always On / Always Off
Video
-
Max Resolution: 2880 × 1620
-
Main Stream Frame Rate:
-
50Hz: 1 / 5 / 10 / 15 / 20 / 25 fps
-
60Hz: 1 / 5 / 10 / 15 / 20 / 25 / 30 fps
-
-
Main Stream Resolutions: 2880×1620, 2688×1520, 2304×1296, 2048×1280, 1920×1080, 1280×720
-
Sub-Stream Frame Rate: Same as main (max 30 fps)
-
Sub-Stream Resolutions: 704×576, 640×480, 352×288, 320×240
-
Note: Rotation 90°/270° → max 20 fps
-
Compression:
-
Main: H.265+/H.265/H.264+/H.264
-
Sub: H.265/H.264
-
-
H.264 Type: High Profile
-
H.265 Type: Main Profile
-
Bitrate:
-
Main Stream: 256 Kbps – 6 Mbps
-
Sub-Stream: 64 Kbps – 512 Kbps
-
-
Bitrate Control: CBR / VBR
-
Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, Client-adjustable HLC
-
Enhancement: BLC / 3D DNR / HLC / SmartIR
-
Wide Dynamic Range: 120 dB
-
Note: With People & Vehicle Analytics ON → DWDR only
-
-
SNR: ≥ 52 dB
-
Image Profiles: Supported
-
Privacy Mask: Up to 4
-
ROI: 1 region
-
OSD: Supported
Audio
-
Two-Way Audio: Yes
-
Audio Input: Yes
-
Audio Output: Yes
-
Compression: G.711 A-law
-
Sampling Rate: 8 kHz
-
Noise Filtering: Supported
-
Bitrate: 64 Kbps
Network
-
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
-
ONVIF: Profile S
-
Simultaneous Live View: 3 Main + 3 Sub
-
Clients: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
-
Browser Support: Chrome 57+, Firefox 52+, Safari 11+, Edge 91+
-
Cloud: Supported
-
Security: Password Protection, HTTPS Encryption, IP Filter, Digest Authentication
Alarm & Event Management
Smart Events
-
Human & Vehicle Classification
-
Intrusion Detection
-
Line Crossing
-
Region Entering / Exiting
-
Object Abandoned / Object Removal
-
Loitering
-
Smart Frame
-
People Detection
-
Vehicle Detection
Basic Events
-
Motion Detection
-
Video Tampering
-
Illegal Login
-
Scene Change
Alarm Linkage
-
Memory Card Recording
-
Message Push
-
Audible Warning
-
White Light Flashing
Deep Learning
-
People & Vehicle Analytics: Attribute-based searching for faster investigations
Interfaces
-
Network: 1× RJ45 10/100M (PoE)
-
Reset Button: Yes
-
Power Port: DC
-
On-Board Storage: MicroSD up to 512 GB
-
Microphone: Built-In (5 m range)
-
Speaker: Built-In
General
-
Operating Temp: –30°C to 60°C
-
Storage Temp: –40°C to 60°C
-
Operating Humidity: ≤95% (non-condensing)
-
Storage Humidity: ≤95%
-
Material: Metal
-
Net Weight: 0.525 kg
-
Dimensions: 74 × 184 × 74 mm
-
Power:
-
12V DC ±5%, Max 9.7 W
-
PoE 802.3af/at, Max 10.7 W
-
-
Protection: IP67
-
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC
Package Includes
-
VIGI Network Camera
-
Quick Start Guide
-
Waterproof Cable Attachments
-
Mounting Accessories
