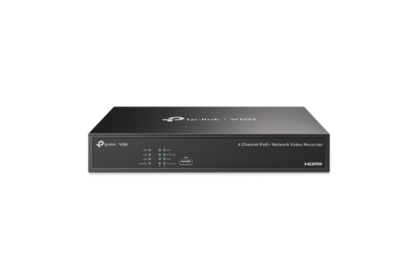

Tp-link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder

• 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle^†.
• Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
• 4-Channel Simultaneous Playback^§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• ONVIF Ensures Compatibility^△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
• Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
• 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.



Video and Audio Specifications

IP Video Input:

• 4-Channel

Bandwidth:

• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps

Output Resolution:

• HDMI:
  • 1 Channel
  • 3840x2160/30Hz
  • 1920x1080/60Hz
  • 1680x1050/60Hz
  • 1440x900/60Hz
  • 1280x1024/60Hz
  • 1280x720/60Hz
• VGA:
  • 1 Channel
  • 1920x1080/60Hz
  • 1680x1050/60Hz
  • 1440x900/60Hz
  • 1280x1024/60Hz
  • 1280x720/60Hz

Video Output Mode:

• HDMI/VGA Simultaneous Output

Multi-View Display:

• 1/4

Decoding Specifications

Audio Compression:

• G.711A/G.711U/G.726

Video Compression:

• H.265+/H.265/H.264+/H.264

Record Resolution:

• 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback:

• 4-Channel

Capability:

• 25fps:
  • 2-ch @ 8MP
  • 4-ch @ 4MP
• 30fps:
  • 4-ch @ 4MP
  • 3-ch @ 5MP

Record Management

Record Mode:

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode:

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback

Backup Mode:

• Regular Backup
• Video Clip Backup

Playback Function:

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

Network Specifications

Protocol:

• UPnP (Plug and Play)
• NTP (Network Timing)

Mobile Phone Access:

• Android, iOS

Web Browser:

• Chrome (57+)
• Firefox (52+)
• Edge (91+)

Interoperability:

• ONVIF, CGI

External Interface

Network Interface:

• 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface:

• 1 Front USB 2.0 Port
• 1 Rear USB 2.0 Port

Audio Interface:

• 1 Audio In
• 1 Audio Out

Alarm In/Out:

• N/A

Serial Interface:

• N/A

Power:

• 1× DC Jack

Reset Button:

• 1

Speaker:

• N/A

eSATA:

• N/A

HDMI:

• 1

VGA:

• 1

Hard Disk Specifications

SATA:

• 1 SATA Interface

Capacity:

• Up to 10 TB Capacity for Each HDD

PoE Specifications

Standard:

• 802.3at/af Compliant

Interface:

• 1-4 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

PoE Budget:

• 53 W Available for All PoE+ Ports
• 30 W Max per Port

Alarm Specifications

General Alarm:

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Anomaly Alarm:

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception

Alarm Linkage:

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

General Specifications

Storage Temperature:

• -40–70 °C

Storage Humidity:

• 10%~90% RH Non-Condensing

Package Contents:

• VIGI Network Video Recorder
• Power Adapter
• Power Cables
• Rubber Feet
• Mouse
• Quick Installation Guide

Working Temperature:

• NVR: -10–55 °C
• Power Adapter: 0–40 °C

Working Humidity:

• 10%~90% RH Non-Condensing

Dimensions (W x D x H):

• 246.2 × 148.2 × 45 mm

Power Supply:

• 53.5V DC/1.31A

Power Consumption:

• 4.25 W (Without Disk)
• 13.10 W (With Disk)

Certifications:

• CE
• EAC
• UKCA
• RCM
• Triman
• BSMI
• VCCI
• FCC
• IC
• HDMI
