Description

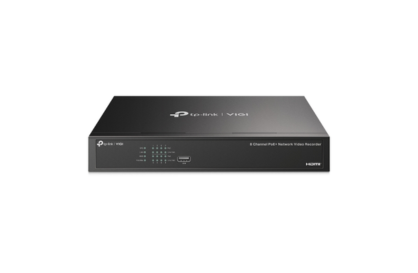

VIGI 8 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡.
 - Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter is needed.
 - 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
 - H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
 - ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
 - Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
 - 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
 - Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
 - Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.
 - Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

Video and Audio Specifications
IP Video Input:
- 8-Channel

Bandwidth:
- Incoming Bandwidth: 80 Mbps
 - Outgoing Bandwidth: 60 Mbps

Output Resolution:
- HDMI:
- 1 Channel
 - 3840x2160/30Hz
 - 1920x1080/60Hz
 - 1680x1050/60Hz
 - 1440x900/60Hz
 - 1280x1024/60Hz
 - 1280x720/60Hz

 - VGA:
- 1 Channel
 - 1920x1080/60Hz
 - 1680x1050/60Hz
 - 1440x900/60Hz
 - 1280x1024/60Hz
 - 1280x720/60Hz


Video Output Mode:
- HDMI/VGA Simultaneous Output

Multi-View Display:
- 1/4/6/8

Decoding Specifications
Audio Compression:
- G.711A/G.711U/G.726

Decoding Format:
- H.265+/H.265/H.264+/H.264

Video Compression:
- H.265+/H.265/H.264+/H.264

Record Resolution:
- 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution:
- 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback:
- 8 Channel

Capability:
- 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Record Management
Record Mode:
- Manual Recording
 - Scheduling Recording
 - Motion Detection Recording

Playback Mode:
- Instant Playback
 - Regular Playback
 - Tag Playback
 - Event Playback

Backup Mode:
- Regular Backup
 - Video Clip Backup

Playback Function:
- Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Network Specifications
Protocol:
- TCP/IP, DHCP, DNS, NTP, UPnP

Mobile Phone Access:
- Android, iOS

Bandwidth:
- Incoming Bandwidth: 80 Mbps
 - Outgoing Bandwidth: 60 Mbps

Web Browser:
- Chrome (57+), Firefox (52+), Edge (91+)

Interoperability:
- ONVIF, CGI

External Interface
Network Interface:
- 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface:
- 2× USB 2.0

Audio Interface:
- 1 Audio In, 1 Audio Out

Alarm In/Out:
- N/A

Serial Interface:
- N/A

Power:
- 1× DC Jack

Reset Button:
- 1

Speaker:
- N/A

eSATA:
- N/A

HDMI:
- 1

VGA:
- 1

Hard Disk Specifications
SATA:
- 1 SATA Interface

Capacity:
- Up to 10 TB

PoE Specifications
Standard:
- 802.3at/af Compliant

Interface:
- 1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

PoE Budget:
- 53 W Available for All PoE+ Ports
 - 30 W Max per Port

Alarm Specifications
General Alarm:
- Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame

Anomaly Alarm:
- Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

Alarm Linkage:
- Recording, White Light Alarm, Buzzer, Log, Audible Alarm

General Specifications
Operating Temperature:
- -10–55 °C

Storage Temperature:
- -40–70 °C

Storage Humidity:
- 10%~90% RH Non-Condensing

Package Contents:
- VIGI Network Video Recorder
 - Power Adapter
 - HDD Screws
 - Quick Installation Guide

Working Temperature:
- NVR: -10–55 °C
 - Power Adapter: 0–40 °C

Working Humidity:
- 10%~90% RH Non-Condensing

Dimensions (W x D x H):
- 294 × 180 × 44 mm

PoE:
- Standard: 802.3af/at
 - PoE Ports: Ports 1-8
 - PoE Budget: 53 W

External Power Supply:
- 53.5V DC/1.31 A

Net Weight:
- 1.12 Kg

Gross Weight:
- 2.06 Kg

Power Supply:
- 53.5V DC/1.31A

Power Consumption:
- 2.38 W (without disk)
 - 12.94 W (with disk)

Certifications:
- CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
