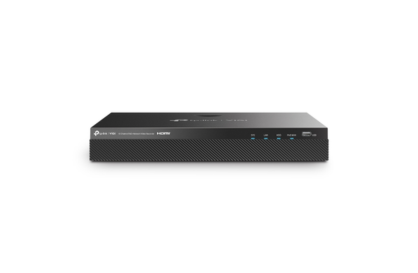

Tp-link VIGI NVR2016H-16P 16 Channel Network Video Recorder with 16 POE

• 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP, and 8-ch@2MP^† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
• 90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.^‡
• 16-Channel Simultaneous Playback^*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• ONVIF Ensures Compatibility^△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• Auto Initialise for Quick Configuration: Just click "Auto Initialise" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
• 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
• Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
• Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.



Video and Audio Specifications

IP Video Input:

• 16-Channel

Bandwidth:

• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps

Output Resolution:

• HDMI:
  • 1 Channel
  • 3840x2160/30Hz
  • 1920x1080/60Hz
  • 1680x1050/60Hz
  • 1440x900/60Hz
  • 1280x1024/60Hz
  • 1280x720/60Hz
• VGA:
  • 1 Channel
  • 1920x1080/60Hz
  • 1680x1050/60Hz
  • 1440x900/60Hz
  • 1280x1024/60Hz
  • 1280x720/60Hz

Video Output Mode:

• HDMI/VGA Simultaneous Output

Multi-View Display:

• 1/4/6/8/9/16

Decoding Specifications

Audio Compression:

• G.711A/G.711U/G.726

Video Compression:

• H.265+/H.265/H.264+/H.264

Record Resolution:

• 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback:

• 16-Channel

Capability:

• 25fps:
  • 2-ch @ 8MP
  • 4-ch @ 4MP
  • 8-ch @ 2MP
• 30fps:
  • 4-ch @ 3MP
  • 2-ch @ 5MP

Record Management

Record Mode:

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode:

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback

Backup Mode:

• Regular Backup
• Video Clip Backup

Playback Function:

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

Network Specifications

Protocol:

• UPnP (Plug and Play)
• NTP (Network Timing)

Mobile Phone Access:

• Android, iOS

Web Browser:

• Chrome (57+)
• Firefox (52+)
• Edge (91+)

Interoperability:

• ONVIF, CGI

External Interface

Network Interface:

• 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

USB Interface:

• 1 Front USB 2.0 Port
• 1 Rear USB 2.0 Port

Audio Interface:

• 1 Audio In
• 1 Audio Out

Alarm In/Out:

• N/A

Serial Interface:

• N/A

Power:

• 1× DC Jack

Reset Button:

• 1

Speaker:

• N/A

eSATA:

• 1

HDMI:

• 1

VGA:

• 1

Hard Disk Specifications

SATA:

• 2 SATA Interfaces

Capacity:

• Up to 10 TB Capacity for Each HDD

PoE Specifications

Standard:

• 802.3at/af Compliant

Interface:

• 1-16 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

PoE Budget:

• 90 W Available for All PoE+ Ports
• 30 W Max per Port

Alarm Specifications

General Alarm:

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Anomaly Alarm:

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception

Alarm Linkage:

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

General Specifications

Storage Temperature:

• -40–70 °C

Storage Humidity:

• 10%~90% RH Non-Condensing

Package Contents:

• VIGI Network Video Recorder
• Power Adapter
• Power Cables
• HDD Power Cables
• HDD Data Cables
• Mounting Accessories
• Mouse
• Quick Installation Guide

Working Temperature:

• NVR: -10–55 °C
• Power Adapter: 0–40 °C

Working Humidity:

• 10%~90% RH Non-Condensing

Dimensions (W x D x H):

• 330 × 285 × 45 mm

Net Weight:

• 1.9 Kg

Gross Weight:

• 3.2 Kg

Power Supply:

• 53.5V DC/2.43A

Power Consumption:

• 6.2 W (Without Disk)
• 40 W (With Disk)

Certifications:

• CE
• EAC
• UKCA
• RCM
• Triman
• BSMI
• VCCI
• FCC
• IC
• HDMI
