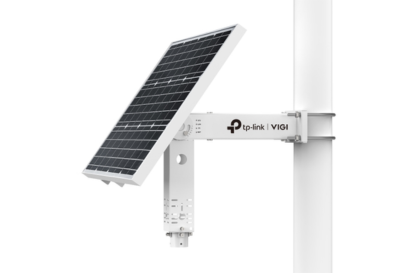

VIGI SP6020
VIGI Intelligent Solar Power Supply System
- 60W Photovoltaic Panel and 20.8Ah/10.8V Lithium Battery
- 3× DC Voltage Output Ports
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
SOLAR PANEL (PHOTOVOLTAIC PANEL)
-
Power: 60 W
-
Voltage: 18 V
-
Dimensions (L x W x H): 690×516×30 mm (27.2×20.3×1.2 in)
BATTERY
-
Type: Lithium
-
Intelligent Auxiliary Heat: Yes
-
Battery Capacity: 20.8 Ah
-
Voltage: 10.8 V
-
Max. Output Voltage: 12.6 V
-
Life: More than 500 cycles
-
Dimension: 242×70×55 mm (9.5×2.8×2.2 in)
-
Charging Condition:
- 0°C~45°C
- -30°C~45°C (With intelligent auxiliary heating)
-
Discharging Condition:
- -20°C~60°C
- -30°C~60°C (With intelligent auxiliary heating)
ANGLE ADJUSTMENT (MANUAL)
-
Range: 5°/15°/25°/35°/45°/55°
HARDWARE
-
Interface:
- 1× 10/100 Mbps RJ45
- 1× Photovoltaic Panel Connector
- 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
-
Indicator LED:
- Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
- Color: Blue
SOFTWARE FEATURES
-
Load Control: Yes
-
High and Low Temperature Protection: Yes
-
Overdischarge Protection: Yes
-
Power Consumption Statistics: Yes
-
Displays Real-time Load Status: Yes
-
Battery Level Display: Yes
-
Time Zone Selection: Yes
-
Region Selection: Yes
-
Schedule Saving: Yes
-
Firmware Remote Update: Yes
-
Remote Reboot: Yes
-
Local LAN Management: Yes
-
Smart Charging Control: -30°C~5°C
-
Account Management: Yes
-
Web Management: Yes
-
Remote Reset: Yes
-
Remote Message Push: Yes
OTHERS
-
Certification:
- CB, PSE (Battery)
- CE, FCC, VCCI, IC, IP66
-
Package Contents:
- VIGI SP6020
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
-
Box Dimensions (W X D X H): 800×615×225 mm (31.5×24.2×8.9 in)
-
Weight:
- Product Weight: 13 kg
- Package Weight: 14.5 kg
-
Environment:
- Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
- Operating Humidity: 10%~90% RH, Non-condensing
