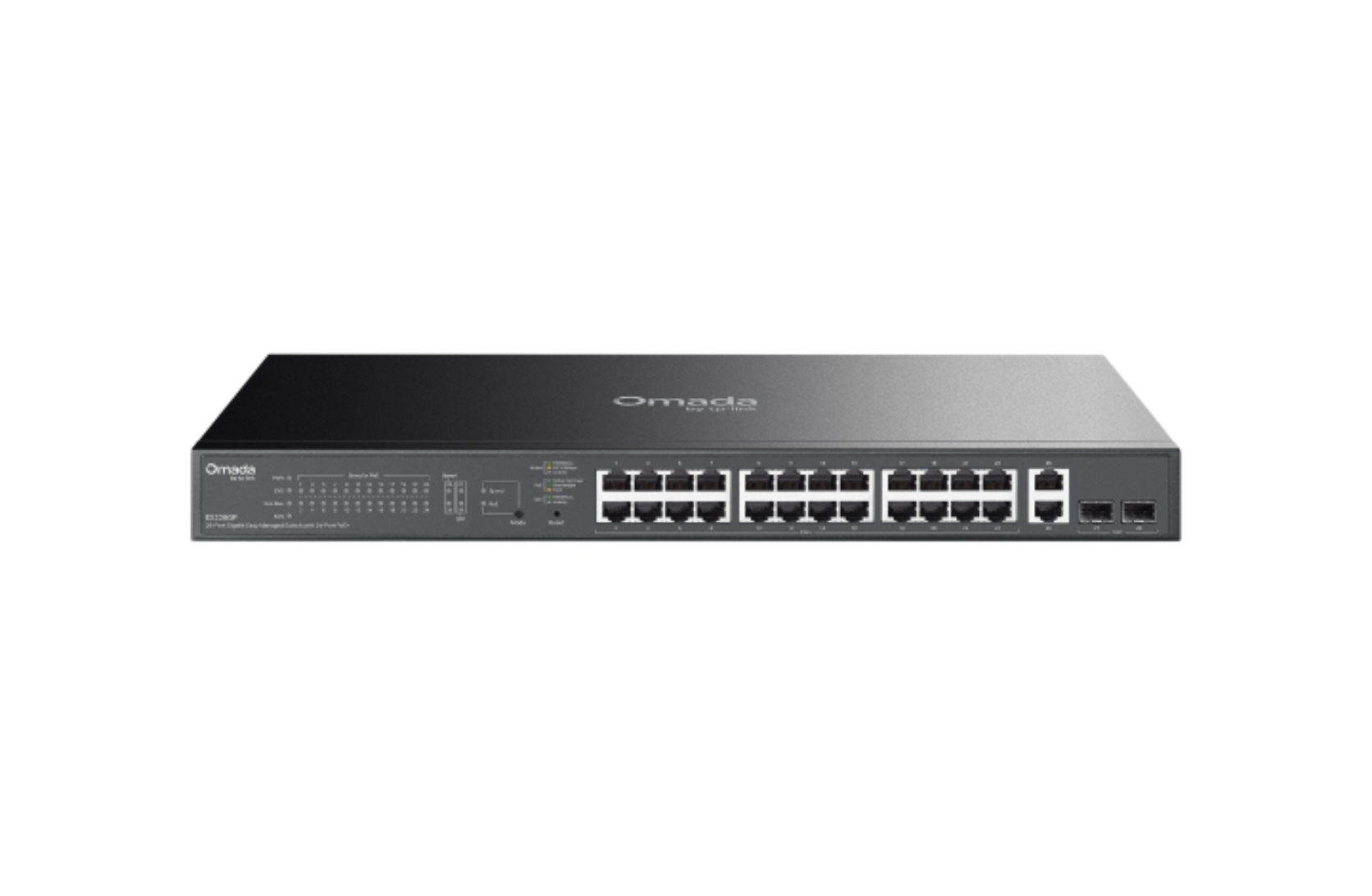

TPLink ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

Key Points

• 26 × 10/100/1000 Mbps RJ45 Ports

• 24 × 802.3af/at-Compliant PoE+ Ports

• 2 × Gigabit SFP Slots

• 250W Total PoE Budget

• Up to 30W PoE Output per Port

• Plug-and-Play Connectivity

• Centralised Cloud Management via Web or Omada App

• Up to 250 m (820 ft) PoE Transmission Distance

• Remote Camera Reboot

• QoS and Port Isolation

• Automatic Loop Prevention

• VLAN Support

• IGMP Snooping

• Durable Metal Casing

• Desktop or Rackmount Installation

Hardware Features

• Interface: 26 × 10/100/1000 Mbps RJ45 Ports

• SFP Slots: 2 × Gigabit SFP Slots

• Auto-Negotiation: Supported

• Auto MDI/MDIX: Supported

• Fan Quantity: 2

• Installation: Desktop / Rackmount

• Physical Security Lock: Yes

• Power Supply: 100–240V~, 50/60Hz, 4.0A

• PoE Standard: IEEE 802.3af PoE and IEEE 802.3at PoE+

• PoE Ports: 24

• PoE Budget: 250W Total

• Maximum PoE Output: Up to 30W per Port

• Fast PoE: Supported

• Perpetual PoE: Supported

• PoE Auto Recovery: Supported

• PoE Transmission Distance: Up to 250 m

• Dimensions: 440 × 180 × 44 mm

• Surge Protection: ±6 kV

Performance

• Packet Buffer Memory: 4 Mbit

• Jumbo Frame: 15 KB

• Switching Capacity: 56 Gbps

• Packet Forwarding Rate: 41.67 Mpps

• MAC Address Table: 8K

Quality of Service

• Port-Based QoS

• IEEE 802.1p QoS

• DSCP QoS

• 8 Priority Queues

• WRR (Weighted Round Robin) Priority Scheduling

• Queue Weight Configuration

• Bandwidth Control

• Port-Based Rate Limiting

• Storm Control

• Multiple Control Modes: kbps / pps

• Broadcast Control

• Multicast Control

• Unknown-Unicast Control

Layer 2 Features

• Static Link Aggregation

• Up to 4 Aggregation Groups

• Up to 8 Ports per Aggregation Group

• Loopback Detection

• IEEE 802.3x Flow Control

• Port Mirroring

• One-to-One Mirroring

• Many-to-One Mirroring

• Ingress Mirroring

• Egress Mirroring

• Ingress and Egress Mirroring

• Port Statistics

• Port Mirror Status

• Traffic Statistics

• IEEE 802.1ab LLDP

L2 Multicast

• IGMP Snooping

• IGMP v1 Snooping

• IGMP v2 Snooping

• IGMP v3 Snooping

• Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• IEEE 802.1Q Tag VLAN

• Up to 32 VLAN Groups

• 4K VID

Transmission Method

• Store-and-Forward

Management Features

• Omada App Support

• Omada Cloud-Based Controller Support

• Omada Hardware Controller Support

• Omada Software Controller Support

• Centralised Management

• Cloud Access

• Zero-Touch Provisioning

• Web-Based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Unified Configuration

Certification

• FCC

• CE

• RoHS

Package Contents

• ES228GP

• Power Cord

• Mounting Brackets

• Rubber Feet

• Screws

• Installation Guide

Environment

• Operating Temperature: -5°C to 45°C (23°F to 113°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10%–90% RH, Non-Condensing

• Storage Humidity: 5%–90% RH, Non-Condensing
