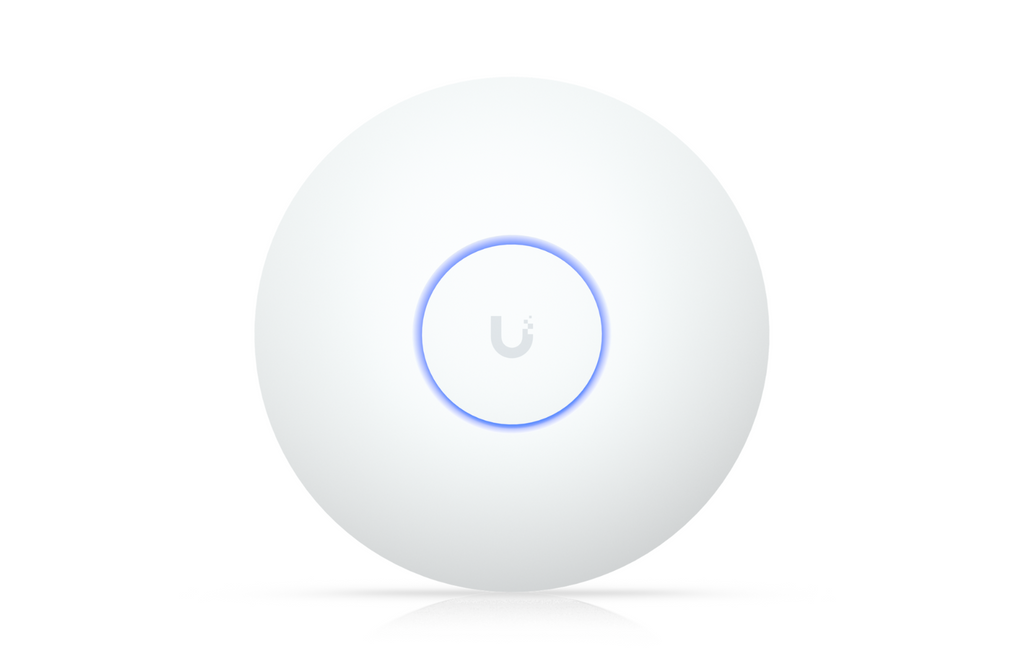

U7-LR Long-Range WiFi 7 Access Point

The UniFi U7-LR is a high-performance WiFi 7 long-range access point designed to deliver ultra-fast speeds, extended coverage, and reliable connectivity for demanding environments. It is ideal for homes, offices, and enterprise networks, supporting more than 300 clients with seamless roaming and advanced security features.

---

Overview

• WiFi Standard: WiFi 7

• Coverage Area: 160 m² (1,750 ft²)

• Max. Client Count: 300+

• Uplink: 2.5 GbE

• Mounting: Ceiling or Wall (mounting plate included)

• Power Method: PoE

---

Performance

• MIMO:

  • 5 GHz: 3 x 3 (DL/UL MU-MIMO)

  • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

• Maximum Data Rates:

  • 5 GHz: Up to 4.3 Gbps (BW160)

  • 2.4 GHz: Up to 688 Mbps (BW40)

• Antenna Gain:

  • 5 GHz: 6 dBi

  • 2.4 GHz: 4 dBi

• Maximum TX Power:

  • 5 GHz: 27 dBm

  • 2.4 GHz: 26 dBm

---

Features

• Wireless meshing

• Band steering

• 802.11v BSS transition management

• 802.11r fast roaming

• 802.11k radio resource management

• Advanced radio management

• Passpoint (Hotspot 2.0)

• Captive hotspot portal with custom branding

• Voucher and payment-based authentication

• External portal server support

• Password authentication

• Guest network isolation

• Private pre-shared key (PPSK)

• WiFi speed limiting

• Client device isolation

• WiFi scheduling

• RADIUS over TLS (RadSec)

• Dynamic RADIUS-assigned VLAN

---

Hardware Specifications

• Maximum Power Consumption: 14W

• Supported Voltage Range: 42.5–57V DC

• Networking Interface: 1 × 2.5 GbE RJ45 port

• Weight: 448 g (15.8 oz)

• Enclosure Material: Polycarbonate, aluminum alloy

• Mount Material: Polycarbonate, galvanized steel (SGCC)

• LED Indicators: White/Blue system LED

• Operating Temperature: -30 to 50 °C (-22 to 122 °F)

• Operating Humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

• NDAA Compliant: Yes

---

Software and Management

• Managed through UniFi Network (version 9.1.120 and later)

• Mobile App Support:

  • iOS: Version 10.20.2 and later

  • Android: Version 10.21.7 and later

---

In the Box

• U7-LR Access Point

• Ceiling/Wall Mounting Plate

• Installation Guide
