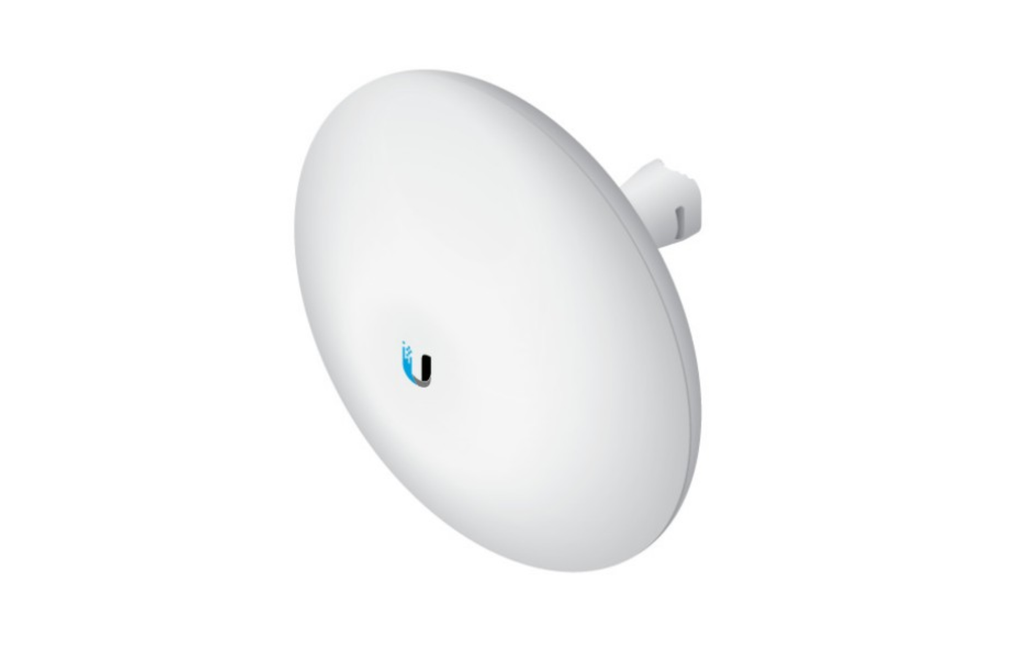

Experience high-speed, long-range wireless connectivity with the Ubiquiti NanoBeam 5AC Gen 2, a compact and powerful 5 GHz airMAX® AC bridge. Designed for both Point-to-Point (PtP) and Point-to-Multipoint (PtMP) links, it delivers outstanding throughput, advanced noise immunity, and simple mobile-based management — ideal for rural broadband links, CCTV backhaul, or building-to-building connections.
Key Features
-
High Performance airMAX AC Technology – Up to 450+ Mbps real TCP/IP throughput using 256QAM modulation.
-
19 dBi Integrated Antenna – Focused beam for maximum gain and minimal interference.
-
Dedicated Management Radio – Configure and monitor easily via Wi-Fi using the UNMS™ app (iOS/Android).
-
airOS 8 Software – Intuitive web interface with spectrum analysis, channel optimization, and diagnostics.
-
Durable Outdoor Design – Weather-resistant UV-stabilized enclosure rated for temperatures from –40 °C to 80 °C.
-
Efficient Mounting System – Quick ball-joint alignment, pole or wall mount (kit included).
- Datasheet
Technical Specifications
-
Model: NBE-5AC-Gen2
-
Frequency Range: 5150 – 5875 MHz
-
Gain: 19 dBi
-
Max Throughput: 450+ Mbps
-
Networking Interface: 2 × Gigabit Ethernet Ports (PoE In & Passthrough)
-
Power Supply: 24 V 0.5 A Gigabit PoE Adapter (included)
-
Power Consumption: 8.5 W (max)
-
Wind Survivability: 200 km/h (125 mph)
-
Dimensions: 189 × 189 × 125 mm | Weight: 0.53 kg
-
Certifications: CE, FCC, IC | RoHS Compliant
Applications
-
Wireless CCTV backhaul for remote camera poles
-
Long-distance building-to-building links
-
Rural internet service distribution (PtMP CPE)
