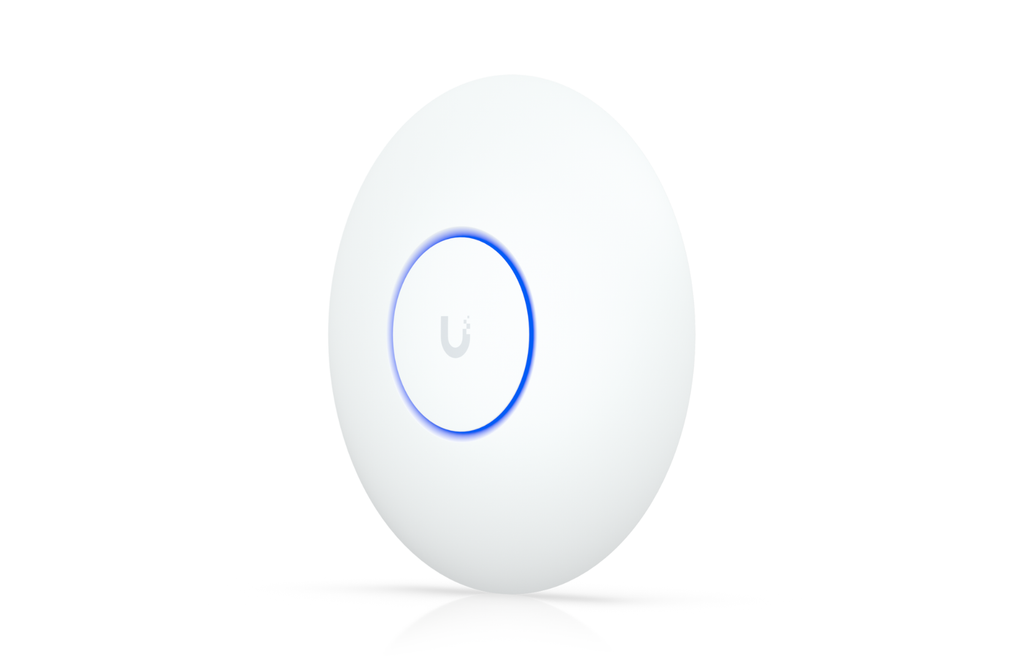

Ubiquiti UniFi U7 Lite – WiFi 7 Access Point (U7-Lite)

The U7 Lite is powered by the latest WiFi 7 technology, offering up to 4.3 Gbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band. With a 2.5 GbE uplink and Power-over-Ethernet support, installation is simple and flexible. It supports advanced UniFi features such as wireless meshing, fast roaming, and custom guest portals, making it ideal for modern, high-density environments.

---

Key Features

• WiFi 7 (802.11be) dual-band access point

• Up to 4.3 Gbps (5 GHz) + 688 Mbps (2.4 GHz) throughput

• 2x2 MU-MIMO for both 2.4 GHz and 5 GHz bands

• Supports 200+ concurrent client devices

• 2.5 GbE RJ45 uplink with PoE power

• Wireless mesh support for cable-free expansion

• Fast roaming (802.11r/k/v) and band steering

• Guest networks with voucher or payment authentication

• PPSK, RADIUS over TLS, and VLAN assignment

• Central management via UniFi Network app or Cloud

---

Specifications

• WiFi Standard: WiFi 7 (802.11be)

• Spatial Streams: 4 (2x2 per band)

• Coverage Area: 115 m² (1,250 ft²)

• Max Client Count: 200+

• Max Data Rate: 5 GHz – 4.3 Gbps, 2.4 GHz – 688 Mbps

• Antenna Gain: 5 GHz – 5 dBi, 2.4 GHz – 4 dBi

• Max TX Power: 5 GHz – 24 dBm, 2.4 GHz – 23 dBm

• Interface: 1 × 2.5 GbE RJ45 (PoE In)

• Power Consumption: 13 W max

• Dimensions: Ø171.5 × 33 mm

• Weight: 313 g

• Mounting: Ceiling or Wall (Lite mount included)

• Enclosure: UV-stabilized polycarbonate

• Operating Temperature: –30 to 40 °C

• Certifications: CE, FCC, IC, Anatel, SRRC, NDAA compliant

---

Software and Management

• UniFi Network version 9.0.114 or later

• iOS app version 10.20.2 or later

• Android app version 10.21.7 or later

---

In the Box

• U7 Lite Access Point

• Ceiling/Wall Lite Mount Kit

• Screws and Anchors

• Quick Start Guide

(PoE injector sold separately)
