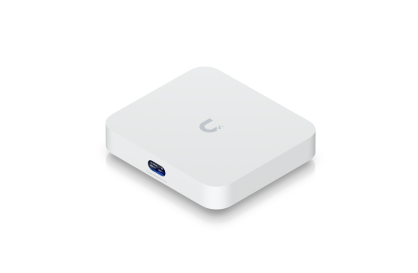

UCG-Ultra Ubiquiti Cloud Gateway Ultra

Overview

• Form Factor: Compact Desktop

• Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

• Managed UniFi Devices: 30+

• Simultaneous Users: 300+

• Max WAN Ports: 4

• Default WAN Port: (1) 2.5 GbE RJ45

• Port Layout:

  • (4) 1 GbE RJ45 (1G/100M/10M)

  • (1) 2.5 GbE RJ45 (2.5G/1G/100M/10M)

• IDS/IPS Throughput: 1 Gbps

---

Security Features

• Stateful Firewall

• Application-Aware Layer 7 Firewall

• Deep Packet Inspection (DPI) & Traffic Identification

• Zone-Based Firewall Filtering (Regions, Domains, Applications)

• Content Filtering

• Intrusion Detection and Prevention (IPS/IDS)

• Ad Blocking

• 55,000+ IDS/IPS Signatures with CyberSecure

• VLAN/Subnet-Based Traffic Segmentation

---

VPN & SD-WAN

• License-Free SD-WAN

• Site-to-Site VPN (Site Magic)

• IPsec

• OpenVPN

• WireGuard

• L2TP

• Identity Endpoint One-Click VPN

• Teleport Zero-Configuration VPN

• VPN Client Support (OpenVPN, WireGuard)

---

Networking Features

• Multi-WAN Load Balancing

• Dynamic Routing (OSPF)

• Advanced QoS

• Multicast DNS (mDNS)

• Advanced NAT (SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT)

• Integrated RADIUS Server

• RADIUS over TLS (RadSec)

• Additional Internet Failover with UniFi LTE Backup

• Internet Quality and Outage Reporting

• MAC Address Table Size: 2,000

• Policy-Based WAN and VPN Routing

• Customizable DHCP Server

• IPv6 ISP Support

• IGMP Proxy

---

Hardware Specifications

• Max Power Consumption: 6.2W

• Power Method: USB Type-C (5V DC/3A)

• Power Supply: USB Type-C Adapter Included

• Supported Voltage Range: 100–240V AC

• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz

• System Memory: 3 GB

• On-board Storage: 16 GB

• Weight: 520 g (1.1 lb)

• Enclosure Material: Polycarbonate

• LCM Display: 0.96" Status Display

• Management: Ethernet, Bluetooth

• LEDs: Ethernet

• Button: Factory Reset

• Ambient Operating Temperature: -10 to 40°C (14 to 104°F)

• Ambient Operating Humidity: 5 to 95% Noncondensing

• NDAA Compliant

• Certifications: CE, FCC, IC, Anatel, SRRC

---

Software Compatibility

• UniFi iOS App: Version 10.12.0 and later

• UniFi Android App: Version 10.11.2 and later
