Description

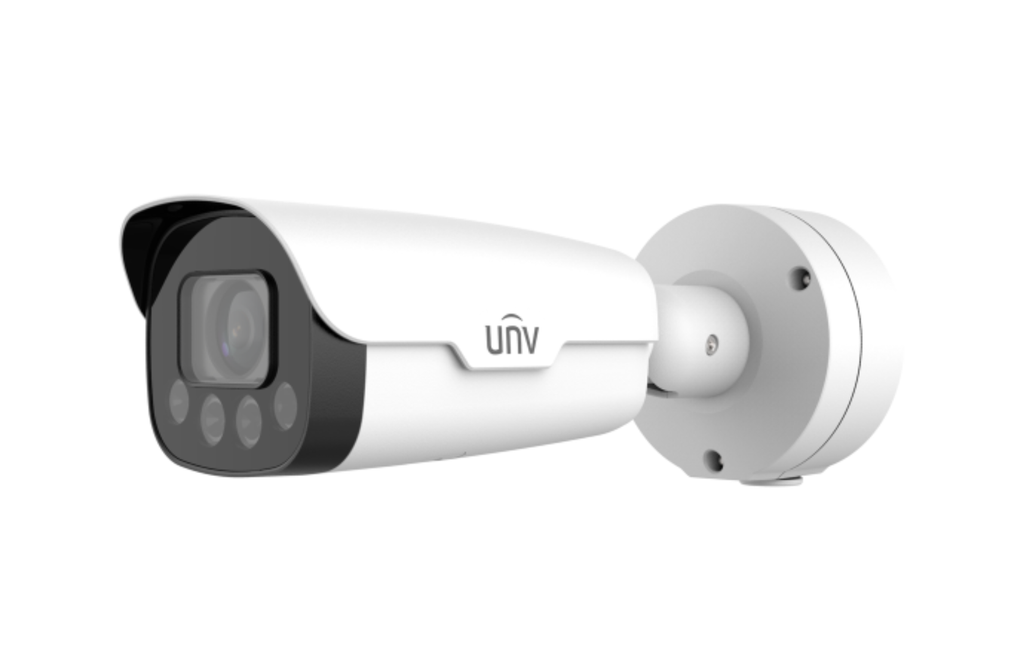

5MP varifocal bullet network camera featuring 12X optical zoom, LightHunter low-light technology, intelligent intrusion prevention, people counting, and built-in heater for extreme environments.
Designed for long-range perimeter monitoring, traffic monitoring, industrial sites, and large outdoor areas.
Key Features
• 5MP (2880 × 1620) up to 30fps
• 1/2.7" CMOS sensor
• 12X optical zoom (5–60mm)
• 16X digital zoom
• LightHunter low-light technology
• 120dB WDR
• Smart intrusion prevention with false alarm filtering
• People counting and crowd density monitoring
• Traffic monitoring (up to 4 lanes)
• IR distance up to 100m
• Built-in heater for low temperature start-up
• MicroSD support up to 512GB
• PoE+ (802.3at) supported
• IP67 and IK10 rated
Camera Specifications
Sensor: 1/2.7" CMOS
Minimum Illumination:
• Color: 0.001 Lux (F1.6, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000 s
WDR: 120 dB
S/N Ratio: >56 dB
Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
Lens
Focal Length: 5 – 60 mm
Optical Zoom: 12X
Digital Zoom: 16X
Iris: F1.6
Iris Type: DC-iris
Field of View:
• Horizontal: 59.99° to 5.73°
• Vertical: 35.03° to 3.39°
• Diagonal: 67.01° to 6.61°
DORI Distance (5–60mm)
Detect: 119.3 m to 1417.5 m
Observe: 47.7 m to 567.0 m
Recognize: 23.9 m to 283.5 m
Identify: 11.9 m to 141.8 m
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 5MP (2880 × 1620) up to 30fps
Sub Stream:
• 1080P up to 30fps
Third Stream:
• D1 up to 30fps
ROI: Supported
Privacy Mask: Up to 4 areas
OSD: Up to 10 areas
Intelligent Functions
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering (human, vehicle, non-motor vehicle classification)
People Counting:
• People flow counting
• Crowd density monitoring
Traffic Monitoring:
• License plate capture on tripwire
• Up to 4 lanes configurable
• High pole / Low pole modes
Exception Detection:
• Object removed
• Object left behind
Image Functions
White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D / 3D DNR
Smart IR: Supported
Flip: Vertical, Horizontal, 180°, 90° rotation
HLC / BLC: Supported
Defog: Digital defog
Heatwave Reduction: Supported
Illumination
IR Distance: Up to 100 m
IR Control: Auto / Manual
Wavelength: 850 nm
Audio
Audio Input: 1
Audio Output: 1
Two-way Audio: Supported
Compression: G.711U / G.711A
Bitrate: 128 Kbps
Sampling Rate: 16 kHz
Alarm & Interface
Alarm I/O: 2 Input / 1 Output
Serial Port: 1 × RS485
Network: 1 × RJ45 10/100M
Video Output: 1 × BNC (debugging)
Storage
Edge Storage: MicroSD up to 512GB
Network Storage: ANR, NAS (NFS)
Network & Security
Protocols: IPv4, IPv6, TCP, UDP, RTSP, HTTPS, SNMP, SSL/TLS and others
ONVIF: Profile S, G, T, M
Users: Up to 32 users (3 levels)
Security:
TLS 1.2 / TLS 1.3
Password protection
HTTPS encryption
RTSP authentication
IP filtering
ARP protection
General
Power Supply: DC 12V ±25% or PoE+ (802.3at)
Max Power Consumption: 13W
Dimensions: 354 × 105 × 98 mm
Weight: 1.93 kg
Operating Temperature: -40°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 6KV
Heater: Built-in
Reset Button: Yes
