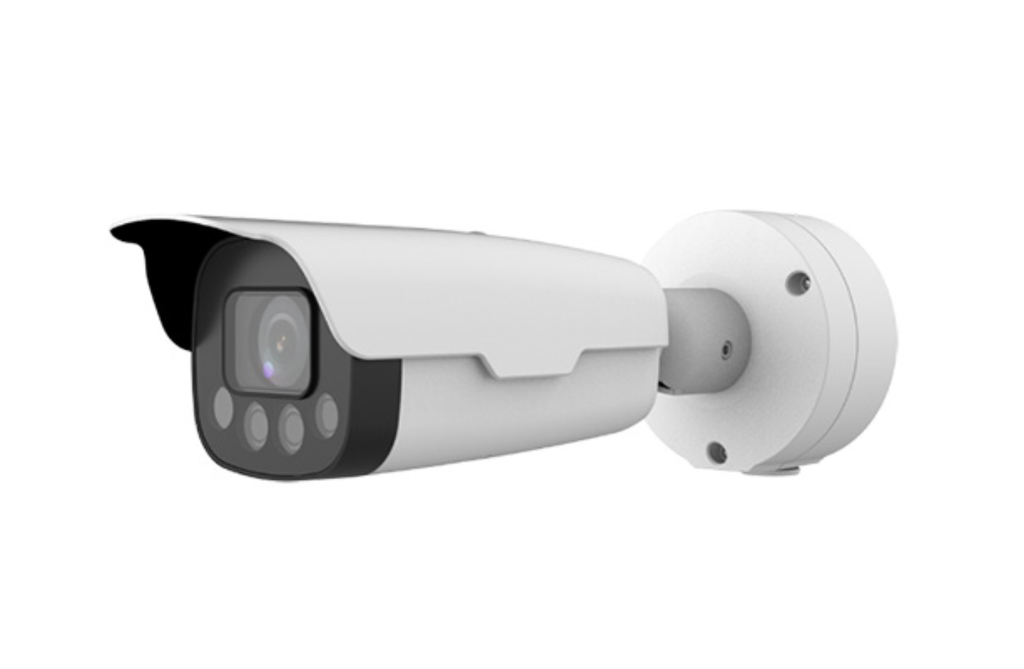

HC121@TS8CR-Z is a 2MP ANPR bullet camera designed for vehicle entry and exit monitoring. It supports automatic number plate recognition, allowlist and blocklist management, and barrier control integration.
Suitable for car parks, warehouses, gated communities, and commercial access control applications where vehicle speed is up to 30km/h.
Datasheet
Key Features
• 1/2.8" 2MP CMOS sensor
• 1920 × 1080 resolution up to 60fps
• Motorised 4.7–47mm zoom lens
• Built-in license plate recognition
• Supports allowlist and blocklist (20,000 entries each)
• Barrier control via relay output
• 4 IR LEDs with up to 50m illumination
• Starlight performance (0.001 lux)
• Micro SD card support up to 128GB
• ANR (Automatic Network Replenishment)
• Audio input and output
• IP67 weatherproof and IK10 vandal resistant
ANPR Functions
• License plate recognition for numbers and letters
• Vehicle head capture mode
• Entry and exit scene support
• Configurable barrier opening policy:
• Import, export, add and delete list entries
Video & Image
Sensor: 1/2.8” 2MP CMOS
Resolution: 1080P (default), 720P, D1
Frame Rate: Up to 60fps
Compression: H.264 / H.265
WDR, AGC and Auto White Balance supported
ROI: Up to 8 regions
OSD: Date, time, plate number, device ID, custom text
Interfaces
Network: 1 × 10/100M RJ45
RS485: 1
Relay Output: 1 (AC 125V/0.3A, DC 30V/1A)
Alarm Input: 2
Audio: 1 input / 1 output
Storage: 1 × Micro SD slot
Power & Environment
Power Supply: DC 12V
PoE: 802.3at (Class 4)
Max Power Consumption: 20W
Operating Temperature: -40°C to 60°C
Humidity: ≤90% RH
Dimensions: 386 × 126 × 130mm
Weight: 2kg
