Description

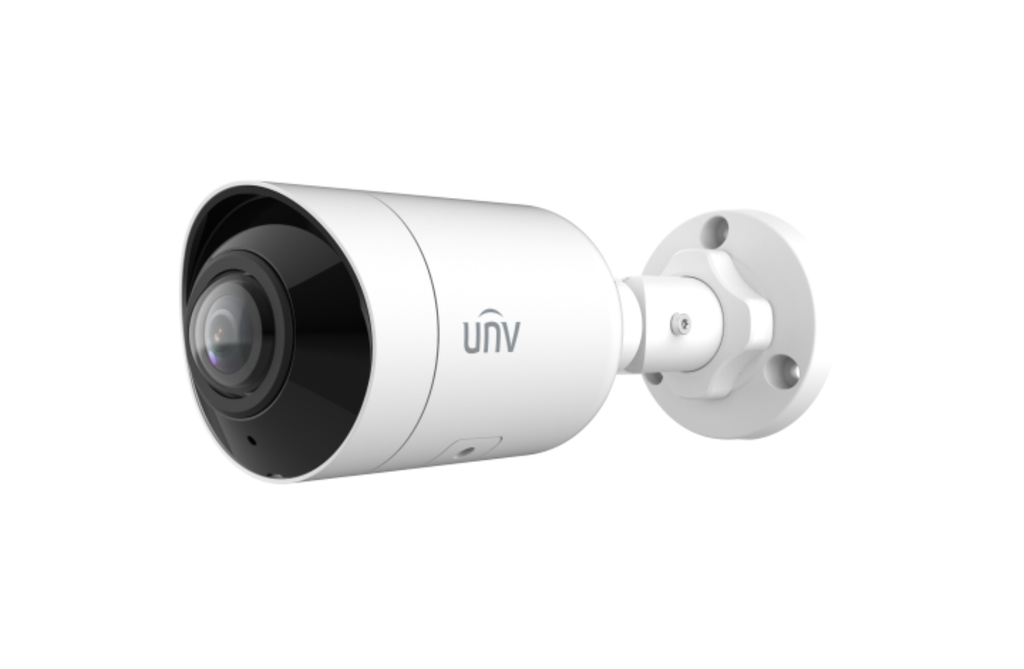

8MP ultra-wide bullet network camera featuring 180° horizontal field of view, intelligent intrusion prevention, built-in microphone, and IP67 weather protection. Suitable for wide-area perimeter monitoring where a single camera replaces multiple standard cameras.
Key Features
• 8MP (3840 × 2160) up to 30fps
• 1/2.7" CMOS sensor
• 180° horizontal viewing angle
• Configurable dewarp level (1–9)
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention with human/vehicle classification
• 120dB true WDR
• Built-in microphone
• Smart IR up to 20m
• MicroSD support up to 512GB
• DC 12V and PoE (802.3af)
• IP67 rated
Camera Specifications
Max Resolution: 8MP
Sensor: 1/2.7" CMOS
Minimum Illumination:
• Color: 0.01 Lux (F2.0, AGC ON)
• 0 Lux with IR on
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000s
S/N Ratio: >52 dB
WDR: 120 dB
Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
Lens
Focal Length: 1.68 mm
Iris: F2.0
Lens Type: Fixed
Field of View:
• Horizontal: 180°
• Vertical: 100°
• Diagonal: 180°
DORI Distance (1.68mm Lens)
Detect: 37.8 m
Observe: 15.1 m
Recognize: 7.6 m
Identify: 3.8 m
Illumination
Type: IR
IR Distance: Up to 20 m
Wavelength: 850 nm
IR Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 8MP up to 30fps
• 5MP up to 30fps
• 4MP up to 30fps
• 1080P up to 30fps
Sub Stream:
• 720P / D1 / 640×360 / 2CIF / CIF up to 30fps
Third Stream:
• D1 / 640×360 / 2CIF / CIF up to 30fps
Privacy Mask: Up to 4 areas
OSD: Up to 8 areas
ROI: Supported
Image Functions
White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IR: Supported
Digital Noise Reduction: 2D / 3D DNR
Flip: Vertical, Horizontal, 180°
Dewarping: Supported
HLC / BLC: Supported
Defog: Digital defog
Intelligent Functions
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering (human, vehicle, non-motor vehicle classification)
Attribute Collection: SIP with color retrieval
Audio
Built-in Microphone: Yes
Compression: G.711U / G.711A
Bitrate: 64 Kbps
Sampling Rate: 8 kHz
Storage
Edge Storage: MicroSD up to 512GB
Network Storage: ANR, NAS (NFS)
Network
Network Interface: 1 × RJ45 10/100M
Supported Protocols:
IPv4, IPv6, TCP, UDP, DHCP, RTP, RTSP, RTCP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS and others
ONVIF: Profile S, G, T, M
Users: Up to 32 users (3 levels)
Security:
Password protection
HTTPS encryption
RTSP authentication
TLS 1.2
IP filtering
ARP protection
Certifications
EMC: CE-EMC, FCC
Safety: CE LVD, UL/CUL
Environmental: RoHS, WEEE
Protection Rating: IP67
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 5.5W
Power Interface: Ø5.5mm coaxial
Dimensions: 198 × 71 × 71 mm
Weight: 0.42 kg
Material: Metal
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: Yes
