Description

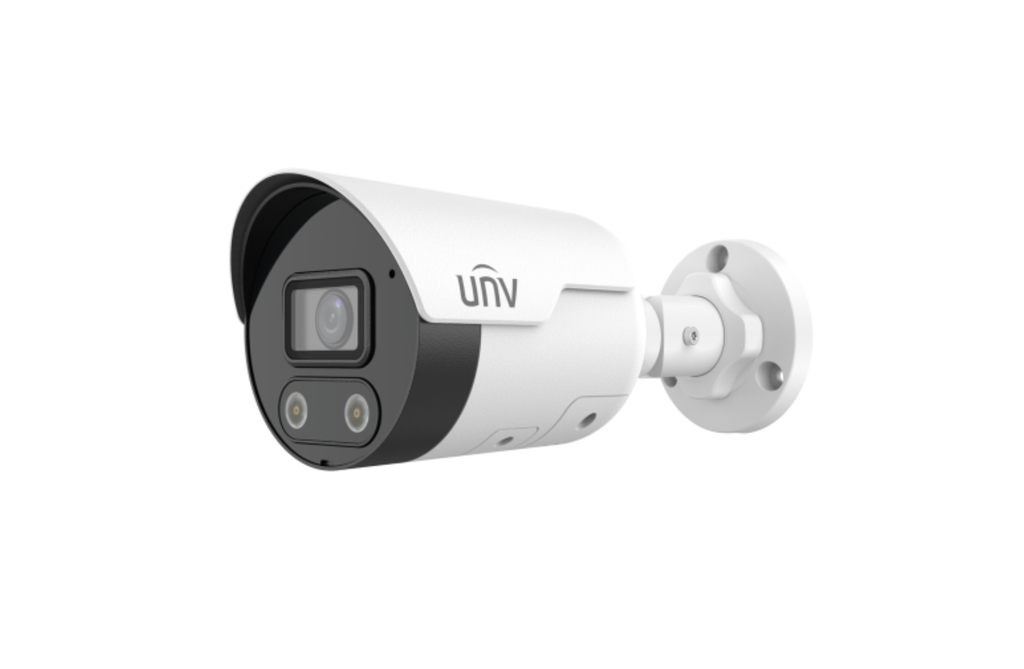

8MP fixed bullet network camera featuring dual-light (IR + warm light), intelligent intrusion prevention, built-in microphone and speaker, and IP67 weather protection.
Designed for perimeter protection, people flow monitoring, and active deterrence applications.
Key Features
• 8MP (3840 × 2160) up to 20fps
• 1/2.7" CMOS sensor
• 4.0mm fixed lens
• Ultra 265, H.265, H.264, MJPEG
• Dual-light (IR + warm light) up to 30m
• Smart intrusion prevention with human/vehicle classification
• People flow counting and crowd density monitoring
• 120dB true WDR
• 9:16 corridor mode
• Built-in microphone
• Built-in speaker (two-way audio)
• MicroSD support up to 512GB
• IP67 rated
Camera Specifications
Max Resolution: 8MP
Sensor: 1/2.7" CMOS
Minimum Illumination:
• Color: 0.0025 Lux (F1.6, AGC ON)
• 0 Lux with light on
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000s
S/N Ratio: >52 dB
WDR: 120 dB
Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
Lens (ADF40 Model)
Focal Length: 4.0 mm
Iris: F1.6
Lens Type: Fixed
Field of View:
• Horizontal: 86.5°
• Vertical: 44.1°
• Diagonal: 112.5°
DORI Distance (4.0mm)
Detect: 120.0 m
Observe: 48.0 m
Recognize: 24.0 m
Identify: 12.0 m
Illumination
Type: Dual-light (IR + Warm Light)
IR Distance: Up to 30 m
Warm Light Distance: Up to 30 m
Wavelength: 850 nm
Light Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 8MP up to 20fps
• 5MP up to 30fps
• 4MP up to 30fps
• 1080P up to 30fps
Sub Stream:
• 1080P / 720P / D1 / 640×360 / 2CIF / CIF up to 30fps
Third Stream:
• D1 / 640×360 / 2CIF / CIF up to 30fps
Privacy Mask: Up to 4 areas
OSD: Up to 8 areas
ROI: Supported
Image Functions
White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D / 3D DNR
Smart IR: Supported
Flip: Vertical, Horizontal, 180°, 90° rotation
Dewarping: Supported
HLC / BLC: Supported
Defog: Digital defog
Intelligent Functions
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering (human, vehicle, non-motor vehicle classification)
People Counting:
• People flow counting
• Crowd density monitoring
Audio
Built-in Microphone: Yes
Built-in Speaker: Yes
Two-way Audio: Supported
Compression: G.711U / G.711A
Bitrate: 64 Kbps
Sampling Rate: 8 kHz
Storage
Edge Storage: MicroSD up to 512GB
Network Storage: ANR, NAS (NFS)
Network
Network Interface: 1 × RJ45 10/100M
Supported Protocols:
IPv4, IPv6, TCP, UDP, DHCP, RTP, RTSP, RTCP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP and others
ONVIF: Profile S, G, T, M
Users: Up to 32 users (3 levels)
Security:
Password protection
HTTPS encryption
TLS 1.2
RTSP authentication
IP filtering
ARP protection
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 10.5W
Power Interface: Ø5.5mm coaxial
Dimensions: 191 × 75 × 74 mm
Weight: 0.41 kg
Material: Metal
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: Yes
