Description

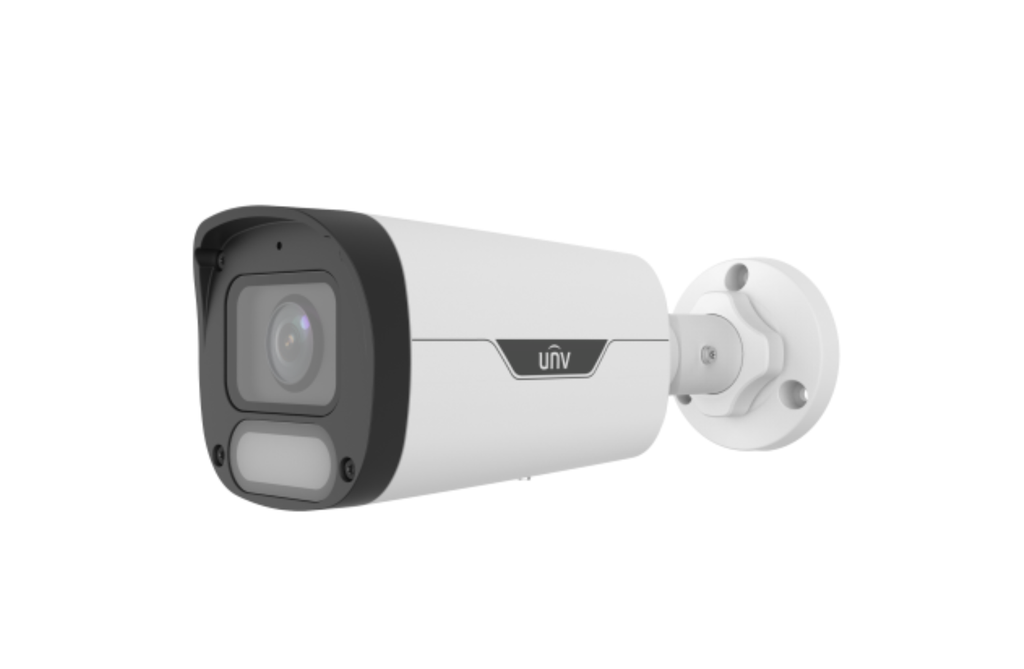

4MP fixed bullet network camera featuring a 1/1.8" CMOS sensor and F1.0 large aperture lens for full-colour imaging in extremely low-light environments.
Supports ColorHunter with Wise-ISP technology for enhanced colour accuracy, improved detail, and reduced smear effects at night.
Designed for perimeter monitoring, commercial sites, and low-light applications where colour image performance is critical.
Key Features
• 4MP (2688 × 1520) up to 25fps
• 1/1.8" CMOS sensor
• F1.0 large aperture lens
• 2.8mm fixed lens
• ColorHunter with Wise-ISP technology
• 120dB true WDR
• 9:16 corridor mode
• Built-in microphone
• Warm white light up to 30m
• MicroSD support up to 512GB
• PoE (802.3af) supported
• IP67 weather protection
• 3-axis adjustment
Camera Specifications
Max Resolution: 4MP
Sensor: 1/1.8" CMOS
Minimum Illumination: 0.0003 Lux (F1.0, AGC ON)
Shutter: 1 ~ 1/100000s
S/N Ratio: >52 dB
WDR: 120 dB
Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
Lens (ADF28 Model)
Focal Length: 2.8 mm
Iris: F1.0
Lens Type: Fixed
Field of View:
• Horizontal: 124.3°
• Vertical: 64.1°
• Diagonal: 135.0°
DORI Distance (2.8mm)
Detect: 43.4 m
Observe: 17.4 m
Recognize: 8.7 m
Identify: 4.3 m
Illumination
Type: Warm White Light
Illumination Distance: Up to 30 m
Light Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Dual Stream Supported
Bitrate: 128 Kbps – 6144 Kbps
Main Stream:
• 4MP (2688 × 1520) up to 25fps
• 4MP (2560 × 1440) up to 25fps
• 3MP (2304 × 1296) up to 30fps
• 1080P up to 30fps
Sub Stream:
• 720P / D1 / 640×360 up to 30fps
Privacy Mask: Up to 4 areas
OSD: Up to 4 areas
ROI: Up to 8 areas
Image Functions
White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart Illumination: Supported
Digital Noise Reduction: 2D / 3D DNR
Flip: Vertical, Horizontal, 180°, 90° rotation
HLC / BLC: Supported
Defog: Digital defog
Intelligent Functions
Smart Intrusion Prevention (Lite):
• Intrusion detection
• Cross line detection
• Human and vehicle classification
Audio
Built-in Microphone: Yes
Compression: G.711U / G.711A
Bitrate: 64 Kbps
Sampling Rate: 8 kHz
Storage
Edge Storage: MicroSD up to 512GB
Network Storage: ANR, NAS (NFS)
Network
Network Interface: 1 × RJ45 10/100M
Supported Protocols:
IPv4, IPv6, TCP, UDP, DHCP, RTP, RTSP, HTTP, HTTPS, SMTP, SNMP, SSL/TLS and others
ONVIF: Profile S, G, T
Users: Up to 32 users (2 levels)
Security:
Password protection
HTTPS encryption
TLS 1.2
RTSP authentication
IP filtering
ARP protection
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 3.2W
Power Interface: Ø5.5mm coaxial
Dimensions: 206 × 73 × 73 mm
Weight: 0.46 kg
Material: Graphene + Metal
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: Yes
