Description

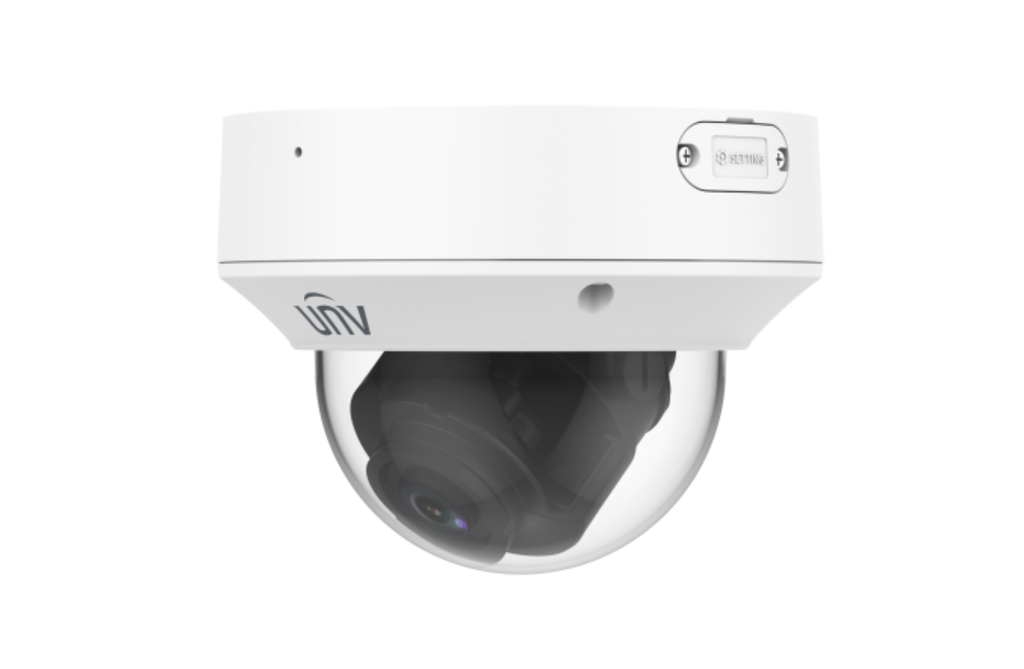

5MP motorised varifocal dome network camera featuring LightHunter low-light technology, intelligent perimeter protection, people counting, and 40m IR illumination.
Designed for commercial buildings, warehouses, schools, and perimeter zones requiring vandal resistance (IK10) and weather protection (IP67).
Key Features
• 5MP (2880 × 1620) up to 30fps
• 1/2.7" CMOS sensor
• 2.7–13.5mm motorised varifocal lens
• LightHunter low-light technology
• 120dB true WDR
• Smart intrusion prevention with classification
• People flow counting and crowd density monitoring
• Smart IR up to 40m
• Built-in microphone
• Alarm I/O (1/1)
• Audio I/O (1/1)
• MicroSD support up to 512GB
• Triple stream support
• IP67 weather rated
• IK10 vandal resistant
Camera Specifications
Max Resolution: 5MP
Sensor: 1/2.7" CMOS
Minimum Illumination:
• Color: 0.002 Lux (F1.2, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000s
WDR: 120 dB
S/N Ratio: >56 dB
Adjustment Angle:
• Pan: 0° to 355°
• Tilt: 0° to 80°
• Rotate: 0° to 355°
Lens
Focal Length: 2.7 – 13.5 mm
Lens Type: Motorised varifocal
Iris: F1.2
Field of View:
• Horizontal: 106.3° to 32.5°
• Vertical: 53.5° to 18.0°
• Diagonal: 126.0° to 38.5°
DORI Distance (2.7–13.5mm)
Detect: 60.8 m to 303.8 m
Observe: 24.3 m to 121.5 m
Recognize: 12.2 m to 60.8 m
Identify: 6.1 m to 30.4 m
Illumination
Type: IR
IR Distance: Up to 40 m
Wavelength: 850 nm
IR Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 5MP up to 30fps
• 4MP up to 30fps
• 3MP up to 30fps
• 1080P up to 30fps
Sub Stream:
• 720P / D1 / 640×360 up to 30fps
Third Stream:
• D1 / 640×360 / 2CIF / CIF up to 30fps
Privacy Mask: Up to 4 areas
OSD: Up to 8 areas
ROI: Supported
Intelligent Functions
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering (human, vehicle, non-motor vehicle classification)
People Counting:
• People flow counting
• Crowd density monitoring
Audio
Built-in Microphone: Yes
Two-way Audio: Supported
Audio Interface:
• 1 Input (35 kΩ, 2 Vp-p)
• 1 Output (600 Ω, 2 Vp-p)
Compression: G.711U / G.711A
Bitrate: 64 Kbps
Sampling Rate: 8 kHz
Alarm & Interface
Alarm I/O: 1 Input / 1 Output
Network: 1 × RJ45 10/100M
Serial Port: N/A
Storage
Edge Storage: MicroSD up to 512GB
Network Storage: ANR, NAS (NFS)
Network & Security
Protocols: IPv4, IPv6, TCP, UDP, RTSP, HTTPS, SNMP, SSL/TLS and others
ONVIF: Profile S, G, T, M
Users: Up to 32 users (3 levels)
Security:
Password protection
Strong password policy
HTTPS encryption
TLS 1.2
RTSP authentication
IP filtering
ARP protection
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 7W
Dimensions: Ø148.0 mm × 111.4 mm
Weight: 0.97 kg
Material: Metal
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 6KV
Reset Button: Yes
