Description

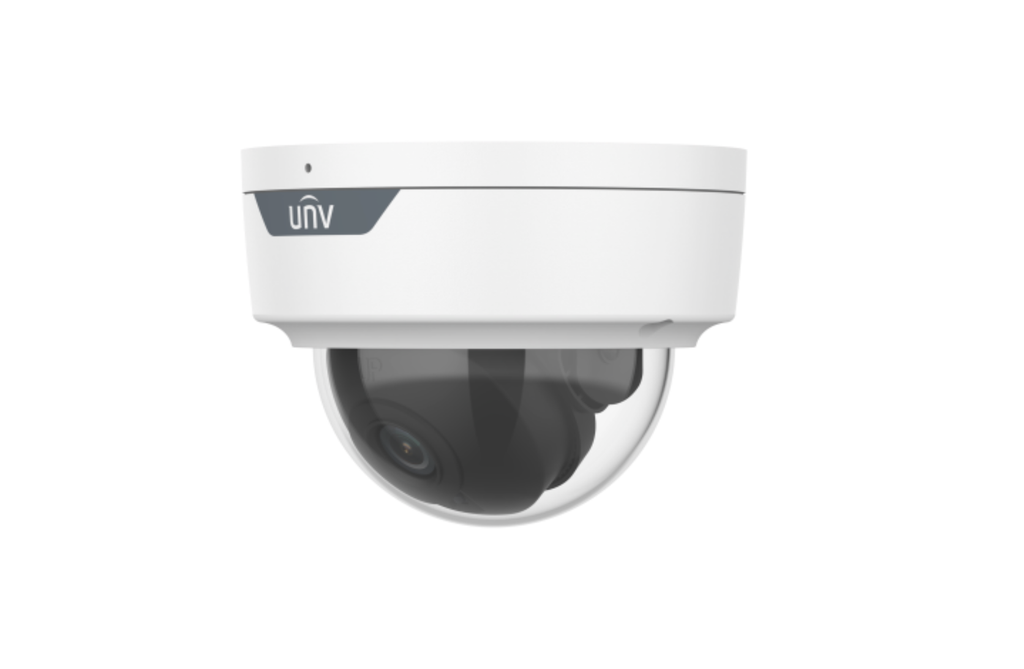

5MP fixed dome network camera featuring LightHunter low-light technology, 130dB WDR, intelligent perimeter protection, and 40m IR illumination.
Designed for commercial buildings, schools, retail, warehouses, and perimeter applications requiring IK10 vandal resistance and IP67 weather protection.
Key Features
• 5MP (2880 × 1620) up to 30fps
• 1/2.7" CMOS sensor
• 2.8mm fixed lens
• LightHunter low-light technology
• 130dB true WDR
• Smart intrusion prevention with classification
• People flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• Auto Scene Match (ASM)
• Smart IR up to 40m
• Alarm I/O (1/1)
• Audio I/O (1/1)
• MicroSD support up to 512GB
• Triple stream support
• IP67 weather rated
• IK10 vandal resistant
Camera Specifications
Max Resolution: 5MP
Sensor: 1/2.7" CMOS
Minimum Illumination:
• Color: 0.002 Lux (F1.6, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000s
WDR: 130 dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0° to 352°
• Tilt: 0° to 70°
• Rotate: 0° to 350°
Lens (ADF28 Model)
Focal Length: 2.8 mm
Iris: F1.6
Lens Type: Fixed
Field of View:
• Horizontal: 110.0°
• Vertical: 58.7°
• Diagonal: 130°
DORI Distance (2.8mm)
Detect: 63.0 m
Observe: 25.2 m
Recognize: 12.6 m
Identify: 6.3 m
Illumination
Type: IR
IR Distance: Up to 40 m
Wavelength: 850 nm
IR Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 5MP up to 30fps
• 4MP up to 30fps
• 3MP up to 30fps
• 1080P up to 30fps
Sub Stream:
• 1080P / 720P / D1 / 640×360 / 2CIF / CIF up to 30fps
Third Stream:
• D1 / 640×360 / 2CIF / CIF up to 30fps
Privacy Mask: Up to 4 areas
OSD: Up to 8 areas
ROI: Supported
Intelligent Functions
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering (human, vehicle, non-motor vehicle classification)
People Counting:
• People flow counting
• Crowd density monitoring
Attribute Collection:
• SIP with color retrieval
Auto Scene Match (ASM):
• Supported (WDR mode)
Audio
Two-way Audio: Supported
Audio Interface:
• 1 Input (35 kΩ, 2 Vp-p)
• 1 Output (600 Ω, 2 Vp-p)
Compression: G.711U / G.711A
Bitrate: 64 Kbps
Sampling Rate: 8 kHz
Alarm & Interface
Alarm I/O: 1 Input / 1 Output
Network: 1 × RJ45 10/100M
Storage
Edge Storage: MicroSD up to 512GB
Network Storage: ANR, NAS (NFS)
Network & Security
Protocols: IPv4, IPv6, TCP, UDP, RTSP, HTTPS, SNMP, SSL/TLS, SSH and others
ONVIF: Profile S, G, T, M
Users: Up to 32 users (3 levels)
Security:
Password protection
Strong password policy
HTTPS encryption
TLS 1.2
RTSP authentication
IP filtering
ARP protection
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 6.5W
Dimensions: Ø111 mm × 83 mm
Weight: 0.42 kg
Material: Metal
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: Yes
